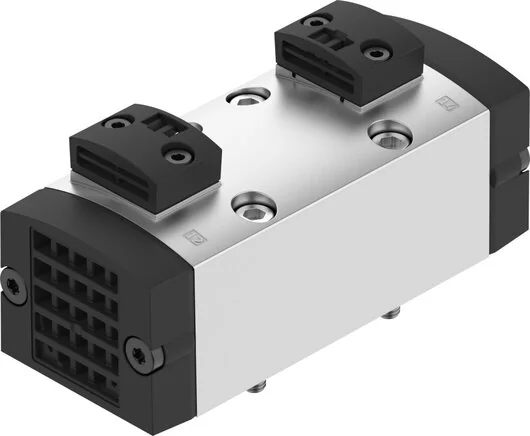

Festo - VSPA-B-P53C-D1-8033641 - Pneumatic Valve

SKU: festo-vspa-b-p53c-d1-8033641

Browse all parts
Festo - VSPA-B-P53C-D1-8033641 - Pneumatic Valve

€185.40€158.46 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€185.40

Brand
Festo
B-value
0.14
C-value
7482
Overlap
positive Überdeckung
Flow Valve
1600
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate
Flow Direction
Reversible
Seals Material
NBR
Vacuum Capable
yes
Valve Function
5/3 closed
Screws Material
verzinkt
Build Width (mm)
42
Exhaust Function
über Einzelanschlussplatte
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
8
Construction Set Up
Piston pusher
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
Control Pressure (bar)
0,3 to 1,6
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 1 to ISO 5599-1
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
-0,09 to 1,6
Control Air 12 Connection
Connection plate Size 1 to ISO 5599-1
Control Air 14 Connection
Connection plate Size 1 to ISO 5599-1
Sound Pressure Level (dB(A))
85
Corrosion Resistance Class KBK
0 - No corrosion stressing
Flow Valve Single Connection Plate
1400
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Tightening Torque Valve Fastening (Nm)
1
Nominal Flow Rate Standardised According To ISO 8778
1800
EAN
4052568652548
Manufacturer
Festo
