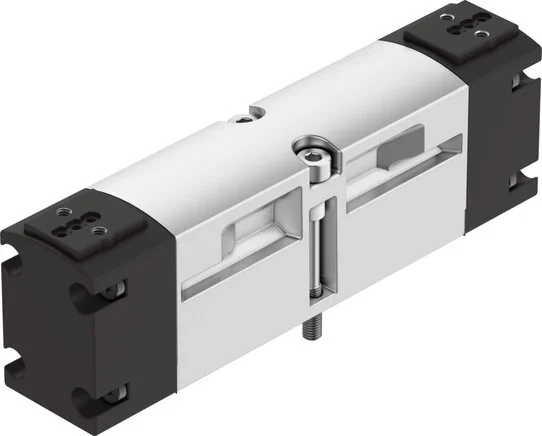

Festo - VSVA-B-P53C-ZH-D2-F8-1B2-8033819 - Solenoid Valve

SKU: festo-vsva-b-p53c-zh-d2-f8-1b2-8033819

Browse all parts
Festo - VSVA-B-P53C-ZH-D2-F8-1B2-8033819 - Solenoid Valve

€401.26€342.96 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€401.26

Brand
Festo
B-value
0.26
C-value
7,696
Overlap
positive Überdeckung
Flow Valve
3500
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate
Flow Direction
Reversible
Seals Material
NBR
Vacuum Capable
yes
Valve Function
5/3 closed
Screws Material
Steel
Build Width (mm)
52
Exhaust Function
über Einzelanschlussplatte
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Relative Humidity
0 - 90 %
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
11,5
Shifting Time (ms)
40
Construction Set Up
Piston pusher
Protection Category
NEMA 4
Complies To Standard
ISO 5599-1
Pitch Dimension (mm)
53
Electrical Connection
Form B
Hand Assist Actuation
tentative
Installation Position
arbitrary
Pre-control Interface
acc. to ISO 15218
Shifting Time On (ms)
25
Control Pressure (MPa)
0,3 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 2 to ISO 5599-1
Shifting Time Off (ms)
78
Medium Temperature (°C)
-10 to 50
Operating Pressure (MPa)
-0,09 to 1,6
Ambient Temperature (°C)
-10 to 50
Coil Characteristic Value
24 V DC: 3,3 W
Control Air 12 Connection
Connection plate Size 2 to ISO 5599-1
Control Air 14 Connection
Connection plate Size 2 to ISO 5599-1
Sound Pressure Level (dB(A))
85
Exhaust Control Connection 82
Not recorded
Exhaust Control Connection 84
Not recorded
Max. Switching Frequency (Hz)
5
Permitted Voltage Oscillations
± 10 %
Flow Valve Pneumatically Linked
2600
Flow Valve Single Connection Plate
2800
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Tightening Torque Valve Fastening (Nm)
2
Nominal Flow Rate Standardised According To ISO 8778
3700
EAN
4052568655648
Manufacturer
Festo
