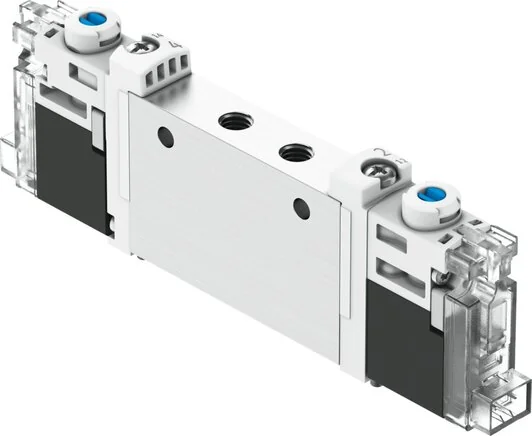

Festo - VUVG-L10-T32H-MZT-M5-1H2L-F1A-8164336 - Solenoid Valve

SKU: festo-vuvg-l10-t32h-mzt-m5-1h2l-f1a-8164336

Browse all parts
Festo - VUVG-L10-T32H-MZT-M5-1H2L-F1A-8164336 - Solenoid Valve

€182.02€155.57 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€182.02

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Seals Material
NBR
Vacuum Capable
yes
Valve Function
2x3/2 open/closed monostable
Screws Material
Steel, powder-coated
Valve Size (mm)
10
Exhaust Function
Can be throttled
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
UL MH19482
Control Air Supply
external
Nominal Width (mm)
1,8
Construction Set Up
Piston pusher
Protection Category
IP40
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pilot Air Port 12/14
M3
Electrical Connection
Plug
Hand Assist Actuation
Covered
Installation Position
arbitrary
Shifting Time On (ms)
10
Control Pressure (MPa)
0,2 to 0,8
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
M5
Pneumatic Connection 2
M5
Pneumatic Connection 3
M5
Pneumatic Connection 4
M5
Pneumatic Connection 5
M5
Shifting Time Off (ms)
13
Medium Temperature (°C)
50
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
60
Coil Characteristic Value
24 V DC: 0,8 W
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Voltage Oscillations
± 10 %
Limits Ambient And Media Temperature
ohne Haltestromabsenkung
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
700
Max. Negative Test Impulse For 1 Signal
900
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Standard Nominal Flow Rate (Standardised To DIN 1343)
125
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
EAN
4052568611965
Manufacturer
Festo
