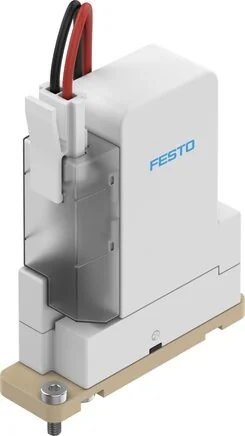

Festo - VYKB-F12-M22C-20-PE-1HPS-8140316 - Media Separated Solenoid Valve

SKU: festo-vykb-f12-m22c-20-pe-1hps-8140316

Browse all parts
Festo - VYKB-F12-M22C-20-PE-1HPS-8140316 - Media Separated Solenoid Valve

€188.92€161.47 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€188.92

Brand
Festo
Size
12
Medium
Gasförmige Medien
Flow Kv
0,056
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With Throughway bore for screws M3
Flow Direction
Not reversible
Seals Material
EPDM
Valve Function
2/2 closed monostable
Internal Volume
60 µl
Fluid Connection
flange
Housing Material
PEEK
Sealing Principle
Soft
Diaphragm Material
EPDM
Nominal Width (mm)
2
Construction Set Up
Wippenventil mit Membrandichtung
Protection Category
IP40
Hand Assist Actuation
None
Installation Position
arbitrary
Medium Pressure (MPa)
-0,075 to 0,3
Shifting Time On (ms)
15
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
15
Overload Pressure (MPa)
0,45
Medium Temperature (°C)
0 to 50
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 70
Coil Characteristic Value
24 V DC: Niederstromphase 1 W, Hochstromphase 5,2 W
Max. Switching Frequency (Hz)
2
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
24
Permitted Voltage Oscillations
± 10 %
From Medium Contacting Materials
PEEK
Medium Temperature Liquid Media (°C)
0 to 50
Electrical Connection 1, Connection Type
Cable with plug
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Anschlussbild HP
EAN
4052568567446
Manufacturer
Festo
