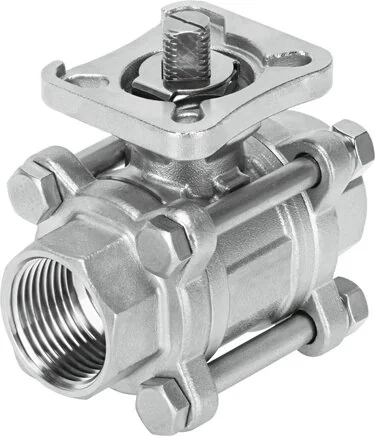

Festo - VZBE-3-T-63-T-2-F0710-V15V16-4809124 - Ball Valve

SKU: festo-vzbe-3-t-63-t-2-f0710-v15v16-4809124

Browse all parts
Festo - VZBE-3-T-63-T-2-F0710-V15V16-4809124 - Ball Valve

€850.18€726.65 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€850.18

Brand
Festo
Medium
neutrale Flüssigkeiten
Flow Kv
995
Permission
CRN
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE
Shaft Material
High-alloyed stainless steels
Housing Material
Cast stainless steel
Nominal Width DN
80
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
3 NPT
Construction Set Up
2-way ball valve
Inner Diameter (mm)
76,0
Nominal Pressure PN
63
Material - Seal Seat
PTFE
Material Number Ball
14.401
Installation Position
arbitrary
Material Number Shaft
14.401
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F0710
Material Number Housing
14.408
Medium Temperature (°C)
-20 to 200
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
Break-out Torque At A Pressure Difference Nominal Fitting Pressure PN (Nm)
103,0
EAN
4052568275556
Manufacturer
Festo
