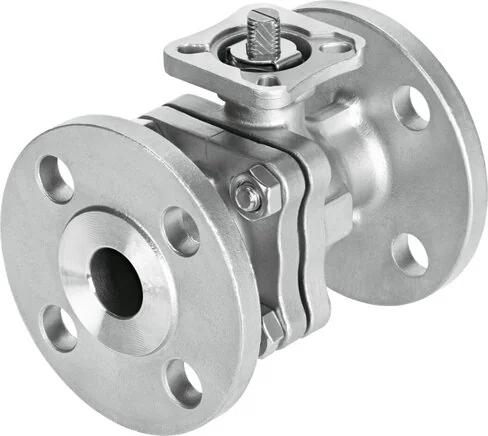

Festo - VZBF-6-P1-20-D-2-F1012-V15V16-4810861 - Ball Valve

SKU: festo-vzbf-6-p1-20-d-2-f1012-v15v16-4810861

Browse all parts
Festo - VZBF-6-P1-20-D-2-F1012-V15V16-4810861 - Ball Valve

€3,845.29€3,286.57 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,845.29

Brand
Festo
Medium
neutrale Flüssigkeiten
Flow Kv
4258
Permission
CRN
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE
Shaft Material
High-alloyed stainless steels
Housing Material
Cast stainless steel
Nominal Width DN
150
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Flange to ANSI B16.5 class 150
Construction Set Up
2-way ball valve
Inner Diameter (mm)
150
Nominal Pressure PN
20
Material Number Ball
14.401
Installation Position
arbitrary
Material Number Shaft
14.401
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F1012
Material Number Housing
14.408
Medium Temperature (°C)
-20 to 200
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
Break-out Torque At A Pressure Difference Nominal Fitting Pressure PN (Nm)
350
EAN
4052568275662
Manufacturer
Festo
