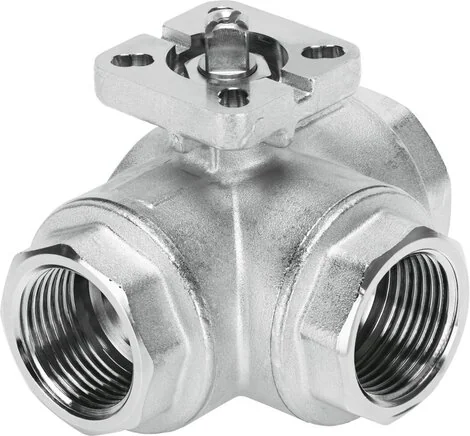

Festo - VZBM-1/4-RP-40-F-3L-F03-B2B3-4451869 - Ball Valve

SKU: festo-vzbm-1-4-rp-40-f-3l-f03-b2b3-4451869

Browse all parts
Festo - VZBM-1/4-RP-40-F-3L-F03-B2B3-4451869 - Ball Valve

€58.64€50.12 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€58.64

Brand
Festo
Medium
neutrale Flüssigkeiten
Ball Material
chrome-plated
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE
Shaft Material
Brass
Housing Material
nickel-plated
Nominal Width DN
8
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Rp1/4
Construction Set Up
L-borehole
Flow Rate Kv L Hole
5,9
Inner Diameter (mm)
8,0
Nominal Pressure PN
40
Material Number Ball
CW614N
Installation Position
arbitrary
Material Number Shaft
CW614N
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F03
Material Number Housing
CW617N
Medium Temperature (°C)
-20 to 130
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
1 - low corrosion stress
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
Break-out Torque At A Pressure Difference Nominal Fitting Pressure PN (Nm)
6,0
EAN
4052568291778
Manufacturer
Festo
