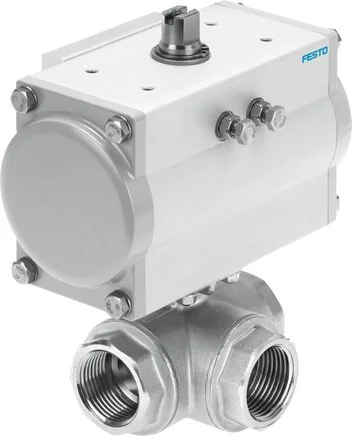

Festo - VZBM-A-3/4"-RP-25-F-3L-B2-PA20-8070253 - Ball Valve Drive Unit

SKU: festo-vzbm-a-3-4-rp-25-f-3l-b2-pa20-8070253

Browse all parts
Festo - VZBM-A-3/4"-RP-25-F-3L-B2-PA20-8070253 - Ball Valve Drive Unit

€343.77€293.82 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€343.77

Brand
Festo
Medium
neutrale Flüssigkeiten
Ball Material
Chrome-plated brass
Material Note
RoHs compliant
Actuation Type
pneumatic
Fastening Type
pipe installation
Seals Material
PTFE
Shaft Material
Brass
Housing Material
brass, nickel-plated
Nominal Width DN
20
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fitting Connection
Rp3/4
Construction Set Up
Schwenkantrieb
Flow Rate Kv L Hole
41,0
Nominal Pressure PN
25
Material Number Ball
CW614N
Installation Position
arbitrary
Material Number Shaft
CW614N
LABS (PWIS) Conformity
VDMA24364-Zone III
Material Number Housing
CW617N
Medium Temperature (°C)
-20 to 130
Operating Pressure (bar)
5.5 to 8
Ambient Temperature (°C)
-20 to 80
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568445393
Manufacturer
Festo
