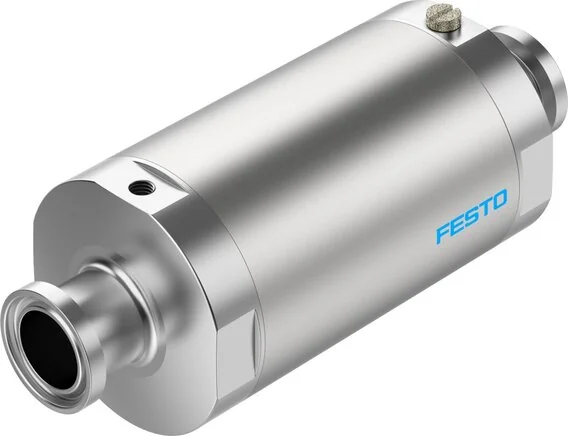

Festo - VZQA-C-M22C-15-S1S1-V2V4S1-2-3412430 - Pinch Valve

SKU: festo-vzqa-c-m22c-15-s1s1-v2v4s1-2-3412430

Browse all parts
Festo - VZQA-C-M22C-15-S1S1-V2V4S1-2-3412430 - Pinch Valve

€803.80€687.01 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€803.80

Brand
Festo
Medium
Water
Flow Kv
5
Reset Mode
Mechanical spring
Control Type
Remote controlled
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:1]
Fastening Type
pipe installation
Flow Direction
Reversible
Max. Viscosity
4.000
Seals Material
FPM
Valve Function
2/2 closed monostable
Clamps Material
PPS
Housing Material
High-alloyed stainless steels
Nominal Width DN
15
Sealing Principle
Soft
Fitting Connection
Clamp acc. to ASME-BPE type A
Food Compatibility
See declaration of conformity
Construction Set Up
Pinch valve pneumatically actuated
Nominal Pressure PN
10
Burst Pressure (MPa)
1,6
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 0,2
Shifting Time On (ms)
150
Housing Cover Material
High-alloyed stainless steels
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
250
Material Number Housing
14.301
Medium Temperature (°C)
-5 to 100
Operating Pressure (MPa)
0,35 to 0,6
Ambient Temperature (°C)
-5 to 60
Bearing Temperature (°C)
5 to 30
Blocking Element Material
VMQ (Silicone)
Housing Cover Part Number
1.4404 / AISI 316L
Support Air Control Connection 12
M5
EAN
4052568460082
Manufacturer
Festo
