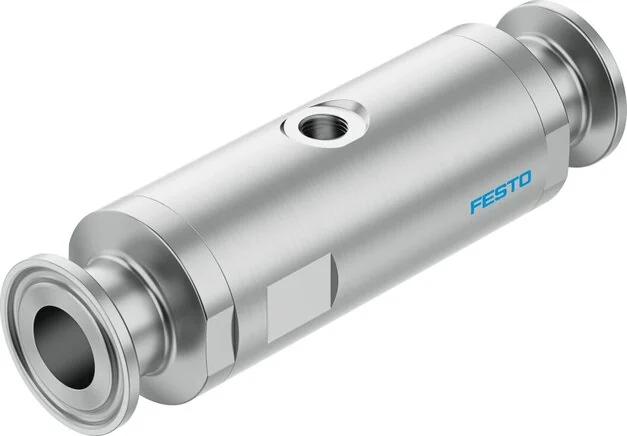

Festo - VZQA-C-M22U-15-S5S5-V4V4E-4-3022833 - Pinch Valve

SKU: festo-vzqa-c-m22u-15-s5s5-v4v4e-4-3022833

Browse all parts
Festo - VZQA-C-M22U-15-S5S5-V4V4E-4-3022833 - Pinch Valve

€454.38€388.36 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€454.38

Brand
Festo
Medium
Water
Flow Kv
5
Reset Mode
Return impact elasticity
Control Type
Remote controlled
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:1]
Fastening Type
pipe installation
Flow Direction
Reversible
Max. Viscosity
4.000
Seals Material
FPM
Valve Function
2/2 open monostable
Clamps Material
PA6
Housing Material
High-alloyed stainless steels
Nominal Width DN
15
Sealing Principle
Soft
Fitting Connection
Clamp acc. to DIN 32676 row A
Food Compatibility
See expanded material information
Construction Set Up
Pinch valve pneumatically actuated
Nominal Pressure PN
10
Burst Pressure (MPa)
1,6
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 0,4
Shifting Time On (ms)
250
Housing Cover Material
High-alloyed stainless steels
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
250
Material Number Housing
14.404
Overload Pressure (MPa)
0,78
Medium Temperature (°C)
-5 to 100
Operating Pressure (MPa)
0,1 to 0,65
Ambient Temperature (°C)
-5 to 60
Bearing Temperature (°C)
5 to 20
Blocking Element Material
EPDM
Differential Pressure (MPa)
0,25
Support Air Control Connection 12
G1/8
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
EAN
4052568255619
Manufacturer
Festo
