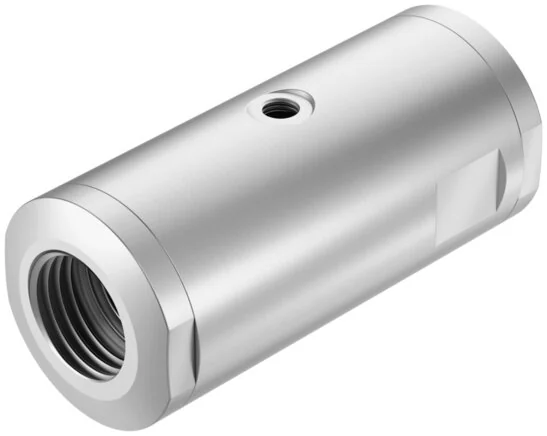

Festo - VZQA-C-M22U-25-GG-V4V4E-4-EXA-3968929 - Pinch Valve

SKU: festo-vzqa-c-m22u-25-gg-v4v4e-4-exa-3968929

Browse all parts
Festo - VZQA-C-M22U-25-GG-V4V4E-4-EXA-3968929 - Pinch Valve

€813.10€694.96 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€813.10

Brand
Festo
Medium
Water
Flow Kv
18
Reset Mode
Return impact elasticity
Control Type
Remote controlled
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:1]
Fastening Type
pipe installation
Flow Direction
Reversible
Max. Viscosity
4.000
Seals Material
FPM
Valve Function
2/2 open monostable
Clamps Material
PPS
Housing Material
High-alloyed stainless steels
Nominal Width DN
25
Sealing Principle
Soft
Fitting Connection
G1
Food Compatibility
See expanded material information
Construction Set Up
Pinch valve pneumatically actuated
Nominal Pressure PN
10
Burst Pressure (MPa)
1,6
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 0,4
Shifting Time On (ms)
250
Housing Cover Material
High-alloyed stainless steels
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
250
Material Number Housing
14.404
Overload Pressure (MPa)
0,78
Medium Temperature (°C)
-5 to 90
Operating Pressure (MPa)
0,1 to 0,65
Ambient Temperature (°C)
-5 to 60
Bearing Temperature (°C)
5 to 20
Blocking Element Material
EPDM
Differential Pressure (MPa)
0,25
Support Air Control Connection 12
G1/8
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
EAN
4052568477288
Manufacturer
Festo
