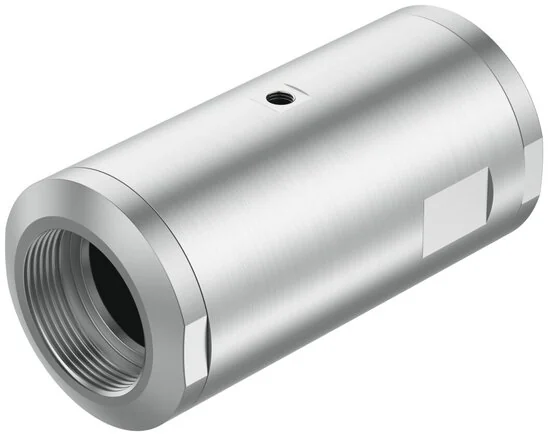

Festo - VZQA-C-M22U-50-GG-ALALE-2-8161473 - Pinch Valve

SKU: festo-vzqa-c-m22u-50-gg-alale-2-8161473

Browse all parts
Festo - VZQA-C-M22U-50-GG-ALALE-2-8161473 - Pinch Valve

€854.74€730.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€854.74

Brand
Festo
Medium
Water
Flow Kv
72
Reset Mode
Return impact elasticity
Control Type
Remote controlled
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:1]
Fastening Type
pipe installation
Flow Direction
Reversible
Max. Viscosity
4.000
Seals Material
VMQ
Valve Function
2/2 open monostable
Clamps Material
Aluminium die casting
Housing Material
Aluminium wrought alloy
Nominal Width DN
50
Sealing Principle
Soft
Fitting Connection
G2
Food Compatibility
See expanded material information
Construction Set Up
Pinch valve pneumatically actuated
Nominal Pressure PN
10
Burst Pressure (MPa)
1,6
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 0,2
Shifting Time On (ms)
200
Housing Cover Material
Aluminium wrought alloy
Shifting Time Off (ms)
1000
Overload Pressure (MPa)
0,78
Medium Temperature (°C)
-5 to 100
Operating Pressure (MPa)
0 to 0,45
Ambient Temperature (°C)
-5 to 60
Bearing Temperature (°C)
5 to 20
Blocking Element Material
EPDM
Differential Pressure (MPa)
0,25
Support Air Control Connection 12
G1/8
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
EAN
4052568611330
Manufacturer
Festo
