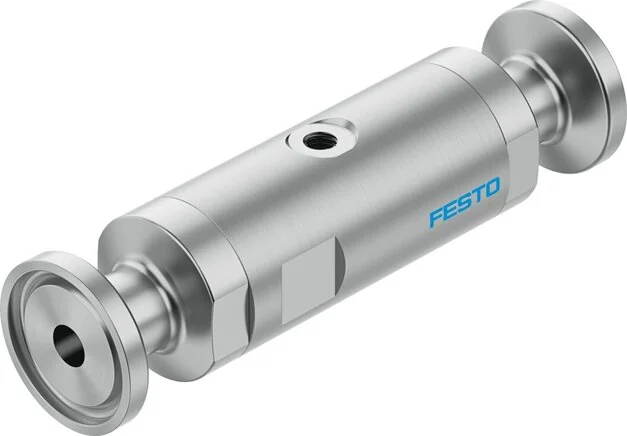

Festo - VZQA-C-M22U-6-S1S1-V4V4S1-4-2931684 - Pinch Valve

SKU: festo-vzqa-c-m22u-6-s1s1-v4v4s1-4-2931684

Browse all parts
Festo - VZQA-C-M22U-6-S1S1-V4V4S1-4-2931684 - Pinch Valve

€312.99€267.51 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€312.99

Brand
Festo
Medium
Compressed air to ISO 8573-1:2010 [-:-:-]
Flow Kv
0,7
Reset Mode
Return impact elasticity
Control Type
Remote controlled
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
pipe installation
Flow Direction
Reversible
Max. Viscosity
4.000
Seals Material
FPM
Valve Function
2/2 open monostable
Clamps Material
PA6
Housing Material
High-alloyed stainless steels
Nominal Width DN
6
Sealing Principle
Soft
Fitting Connection
Clamp acc. to ASME-BPE type A
Food Compatibility
See declaration of conformity
Construction Set Up
Pinch valve pneumatically actuated
Nominal Pressure PN
10
Burst Pressure (MPa)
1,6
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 0,4
Shifting Time On (ms)
125
Housing Cover Material
High-alloyed stainless steels
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
125
Material Number Housing
14.404
Overload Pressure (MPa)
0,78
Medium Temperature (°C)
-5 to 150
Operating Pressure (MPa)
0,1 to 0,65
Ambient Temperature (°C)
-5 to 60
Bearing Temperature (°C)
5 to 30
Blocking Element Material
VMQ (Silicone)
Differential Pressure (MPa)
0,25
Support Air Control Connection 12
M5
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
EAN
4052568290924
Manufacturer
Festo
