FluidPress - FPD20001 - Check Valve 3/4 BSP
FluidPress - FPD20001 - Check Valve 3/4 BSP
FluidPress - FPD20001 - Check Valve 3/4 BSP
FluidPress - FPD20001 - Check Valve 3/4 BSP
FluidPress - FPD20001 - Check Valve 3/4 BSP
FluidPress - FPD20001 - Check Valve 3/4 BSP

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

FluidPress - FPD20001 - Check Valve 3/4 BSP

FluidPress - FPD20001 - Check Valve 3/4 BSP

€72.51

(Excl. VAT)

Price

(Excl. VAT)

€72.51

Product Details

Brand
FluidPress
Type
Single
Unit
Each
Material
Steel
Properties
Design: spring-loaded valve Flow Direction from D to U Control line is tapped internally
Pilot ratio
1:3.6
BBody length
120 mm
HTotal width
50 mm
ATotal length
212 mm
ITotal height
70 mm
Max flow rate
85 l/min
Technical info
External forces on the cylinder should not influence the position of the cylinder
Intended medium
Hydraulic oil
Opening pressure
2 BAR
Application range
High pressure and high volume flow For mounting between lines Can be used as a shut-off valve Fitting position is arbitrary Designed to keep a cylinder in a specific position
Surface treatment
Zinc-plated
Max working pressure
280 BAR
DConnections distance
60 mm
Number of connections
2
Connections thread type
BSP
EMounting holes distance
104 mm
C1/C2Connections thread diameter
3/4 Inch
Manufacturer
FluidPress

Similar items you might like

  • Fluidpress

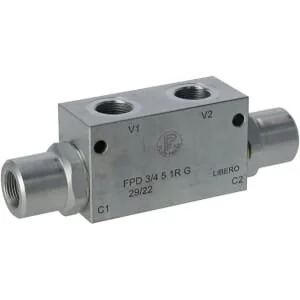

    FluidPress - FPD3451RG - Pilot Check Valve FPD 3/4 5 1R G

    Fluidpress

    €73.15

  • Fluidpress

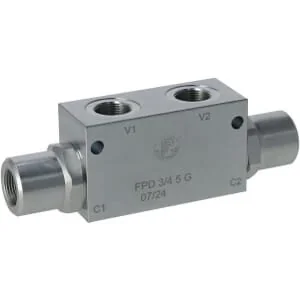

    FluidPress - FPD345G - Pilot Check Valve FPD 3/4 5 G

    Fluidpress

    €77.84

  • Fluidpress

    FluidPress - FPD36EG146BIAA - Valve 6/2 12 VDC Fp-D3-6-E-G1/4-6B-I-A-A

    Fluidpress

    €130.53

  • Fluidpress

    FluidPress - FPD3820L51RG - Pilot Check Valve FPD 3/8 20l 5 1R G

    Fluidpress

    €26.11

  • Fluidpress

    FluidPress - FPD3820L5G - Pilot Check Valve FPD 3/8 20l 5 G

    Fluidpress

    €27.79

  • Fluidpress

    FluidPress - FPD382R08023 - Pilot Check Valve Topl 3/8-231

    Fluidpress

    €45.82

  • Fluidpress

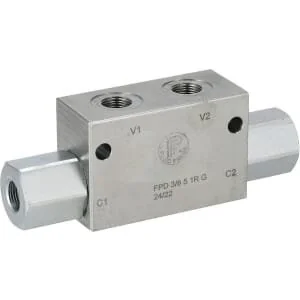

    FluidPress - FPD3851RG - Pilot Check Valve FPD 3/8 5 1R G

    Fluidpress

    €37.57

  • Fluidpress

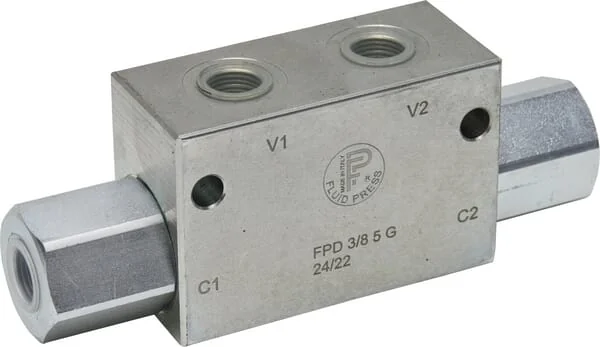

    FluidPress - FPD385G - Pilot Check Valve FPD 3/8 5 G
