Home
Filters, Seals & Gaskets
Seals & Gaskets
Other Seals, Gaskets & O-Rings

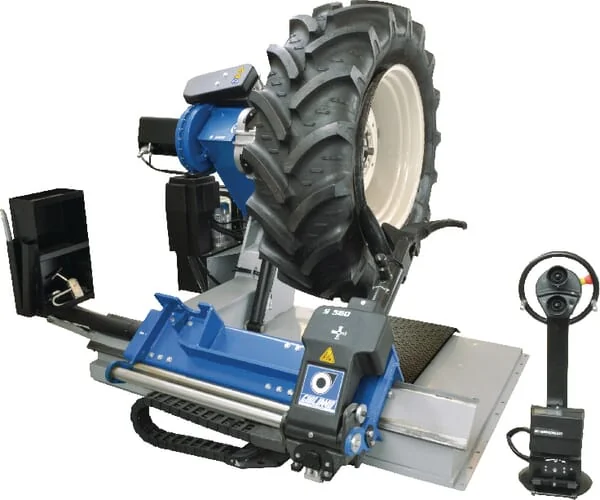

Giuliano - 0702187 - Giuliano Tire Mounting Machine S560
Giuliano - 0702187 - Giuliano Tire Mounting Machine S560
Giuliano - 0702187 - Giuliano Tire Mounting Machine S560
Giuliano - 0702187 - Giuliano Tire Mounting Machine S560
Giuliano - 0702187 - Giuliano Tire Mounting Machine S560
Giuliano - 0702187 - Giuliano Tire Mounting Machine S560
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Giuliano - 0702187 - Giuliano Tire Mounting Machine S560

Giuliano - 0702187 - Giuliano Tire Mounting Machine S560

€17,066.12

(Excl. VAT)

Price

(Excl. VAT)

€17,066.12

Product Description

With two-speed hydraulic clamping chuck and movable control unit Emergency safety button on control console
Giuliano

Product Details

Brand
Giuliano
Fits

Giuliano

S560S561
Unit
Each
Power
1.8 / 2.5 kW
Weight
1025 kg
Details
With two-speed hydraulic clamping chuck and movable control unit Emergency safety button on control console
Voltage
400 V
Benefits
Safe and convenient operation All functions are easily stopped by pressing the safety button
Rim clam
14 - 46 Inch
Dimensions
2850 x 2050 x 1900 cm
Properties
Heavy duty Hydraulic movement of clamping chuck holding arm (up-down) Hydraulic travel movement of operating arm carriage (left-right) Operating arm automatic tilting and travelling on carriage Double tool (disk + finger) manual rotation Wheel clamping by fully hydraulic operated jaws Operating arm and clamping chuck arm facing each other Rim center hole clamping range ø 80 - 1200 mm Clamping chuck minimum height from ground 315 mm (center) Suitable for remote control installation
Technical info
For the rims from 47" to 56" it is necessary to use the optional set of 4 jaw extensions for clamping wheels from 47" to 56"
Tyre width max.
1300 mm
Wheel connection
80 - 2000 mm
Working pressure
130 BAR
Application range
For trucks, busses and agriculture tyres, 14"-56" rim Maximum wheel diameter: 2400 mm / 94.5" Maximum wheel width: 1300 mm / 51"
Tyre diameter max.
2400 mm
Manufacturer
Giuliano
