GRANIT - 50700027 - Flexible cable protection tube 15
OEM Quality
SKU: granit-50700027
€107.28
(excl. VAT)In stock - ready to ship
Ships within 48 hours
Free shipping
Pay Securely with
GRANIT - 50700027 - Flexible cable protection tube 15
€107.28
(Excl. VAT)
Price
(Excl. VAT)
€107.28
The GRANIT 50700027 is a high-quality flexible cable protection tube designed for securing and protecting electrical wiring in agricultural and industrial machinery. This black corrugated tube features an inner diameter of 15 mm and an outer diameter of 20 mm, supplied in a convenient 50-meter roll. It offers robust protection against mechanical damage, moisture, and environmental factors, ensuring the longevity and reliability of electrical installations. Ideal for various applications requiring durable cable management.
Product Details
Brand
Part Numbers
50700027
Inner Diameter (mm)
15
Outer Diameter (mm)
20
Length (m)
50
Color
black
Material
Polyamide 6
Temperature Range (°C)
-40 to +120
Inner Ø (mm)
14.9
Outer Ø (mm)
18.9
Bending radius (mm)
28
Roll length (m)
50
Colour
Black
Nominal width (mm)
16
Wall thickness (mm)
0.3
Version
• Enclosed
Test mark
UL94 V2 FMVSS 302
Additional information
• Profile length 1: 2.5 mm • Profile length 2: 1.6 mm • Approval type: ADR/GGVS tested • UV-resistant • Solvent-resistant • Oil-resistant
Temperature range (°C)
-40 to +150
Weight
2.17 kg
Quality
OEM Quality
Product Details
| Attribute | Value |
|---|---|
| Inner Ø (mm): | 14,9 |
| Outer Ø (mm): | 18,9 |
| Bending radius (mm): | 28 |
| Roll length (m): | 50 |
| Colour: | Black |
| Material: | Polyamide 6 |
| Nominal width (mm): | 16 |
| Wall thickness (mm): | 0,3 |
| Version: | • Enclosed |
| Test mark: | UL94 V2 FMVSS 302 |
| Additional information: | • Profile length 1: 2.5 mm • Profile length 2: 1.6 mm • Approval type: ADR/GGVS tested • UV-resistant • Solvent-resistant • Oil-resistant |
| Temperature range (°C): | -40 to +150 |
| Weight: | 2,17 kg |
| EAN codes: | 4026736032012 |
| Catalogue: | Electrics (p. 1121) |
| To be found in category: | Electrics Connection technology Installation materials Corrugated pipe Black, closed |
EAN
4026736032012
Manufacturer
granit
Be the first to write a review!
Similar items you might like
GRANIT - 650117800 - Terostat-glass primer 8519 P
Granit
€26.71
Granit-500100585-Copper sealing ring
Granit
€79.00

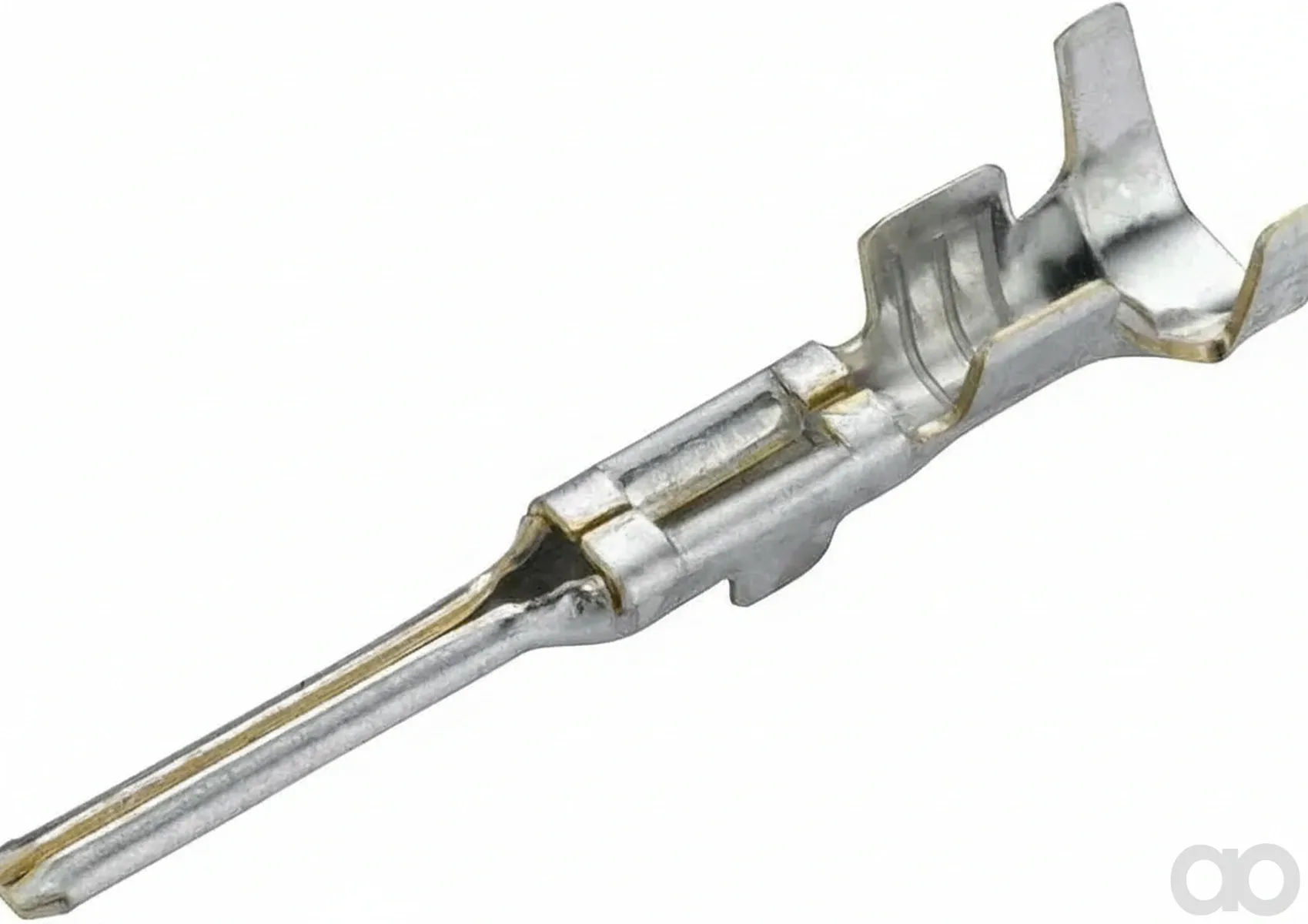

HELLA - 8KW744836002 - Plug pin Male 1.0-1.5mm2
Hella
€26.19

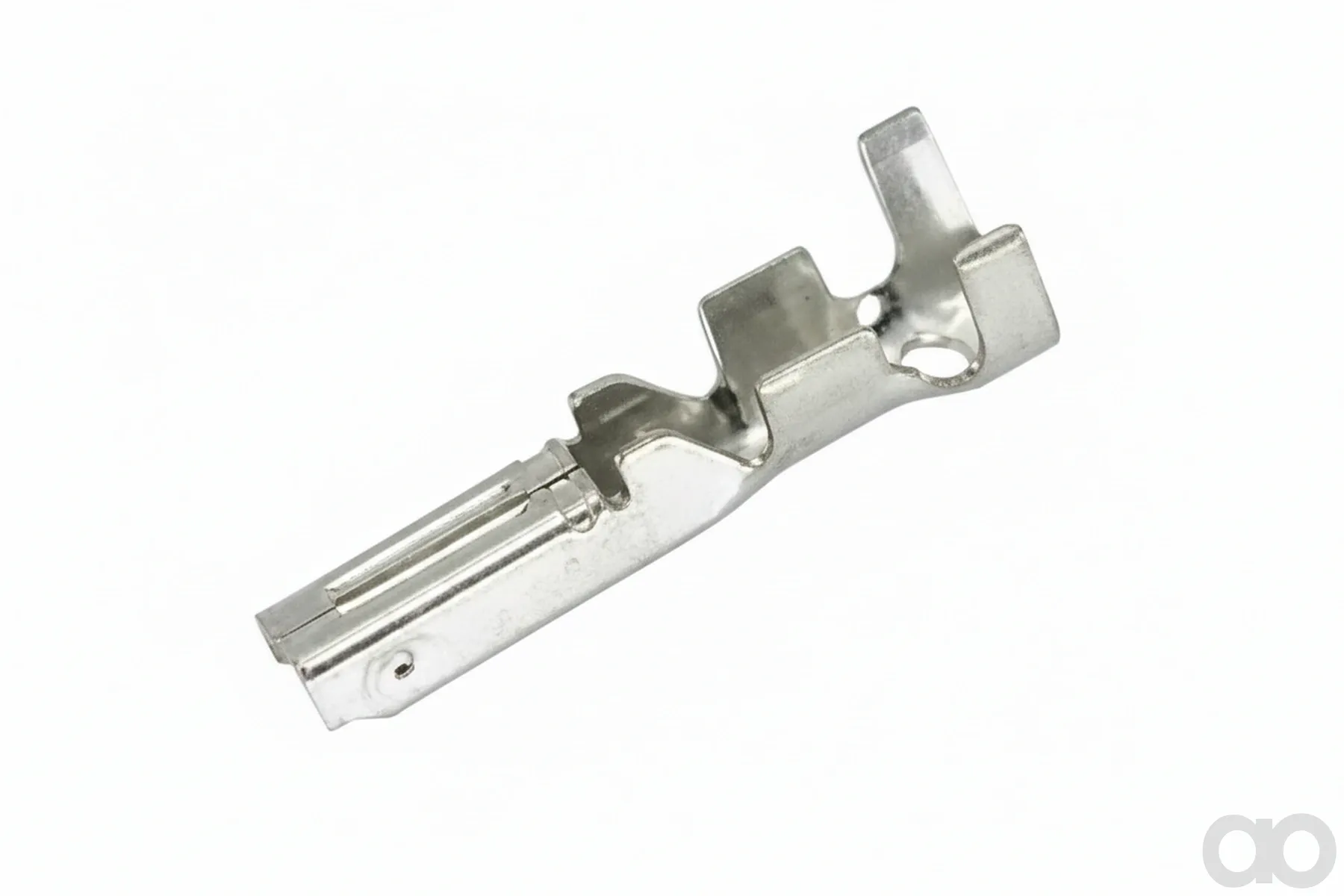

HELLA - 8KW744837002 - Contact bus 1-1.5mm²
