Home
Electrical, Lighting & Batteries
Lighting
Headlights

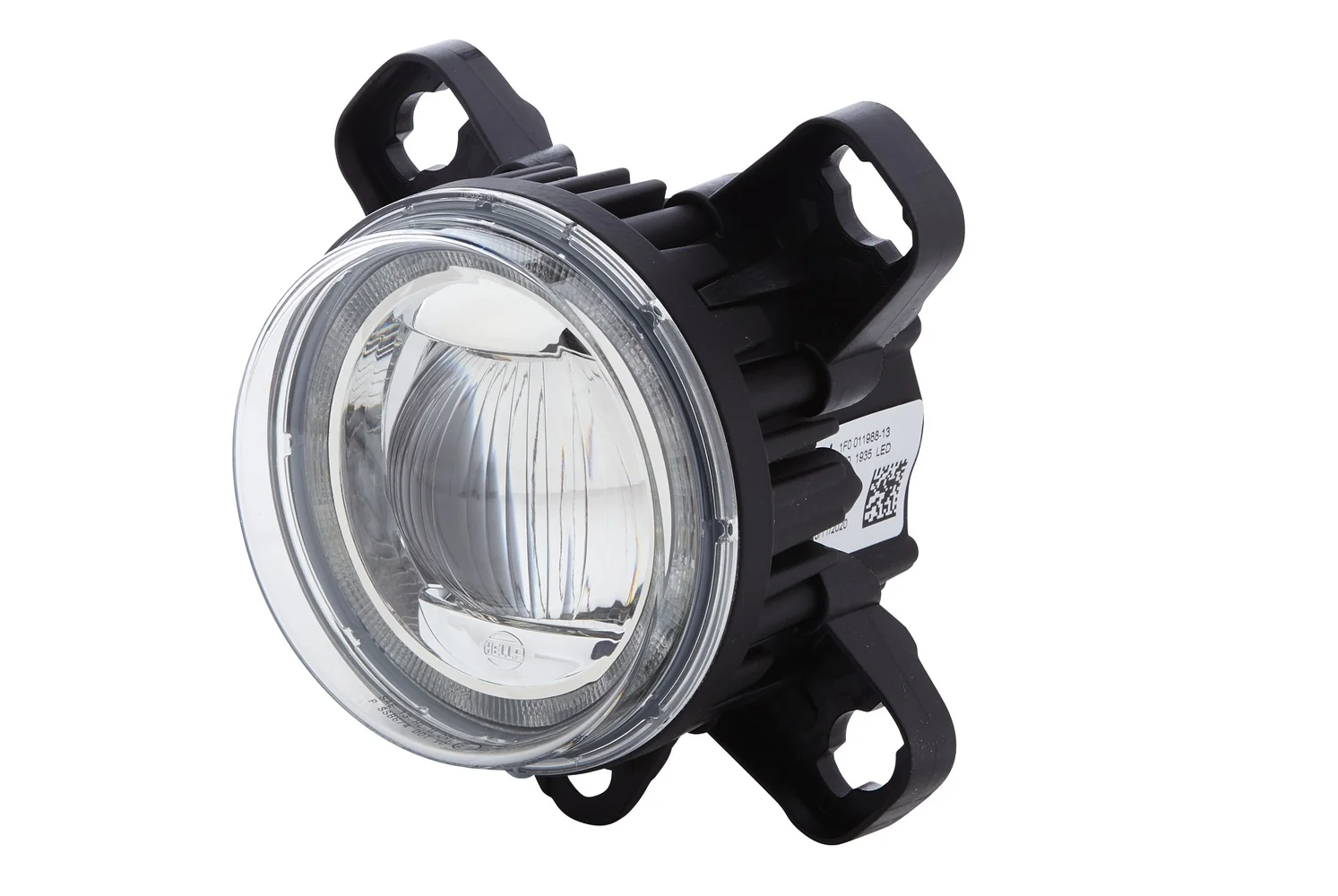

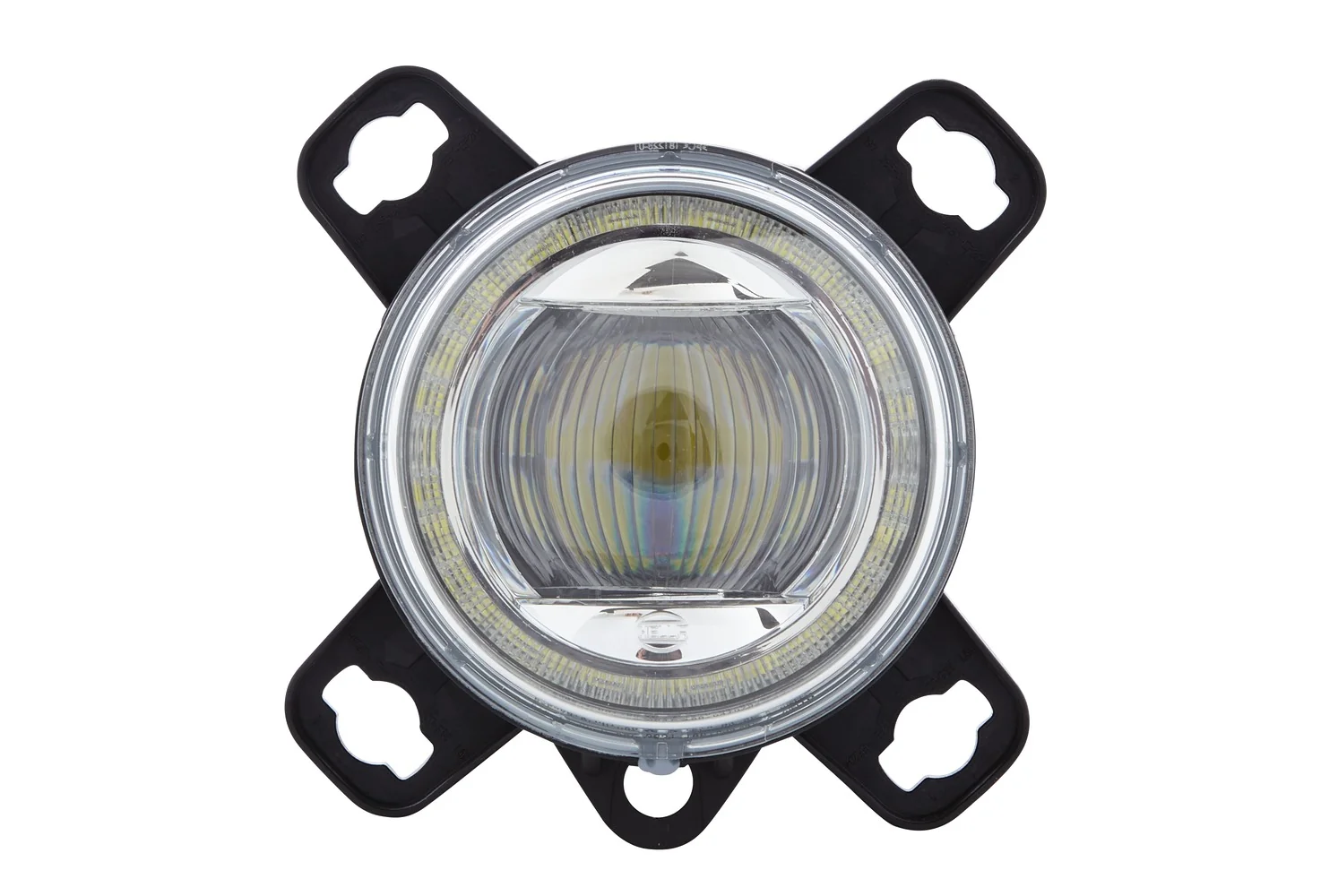

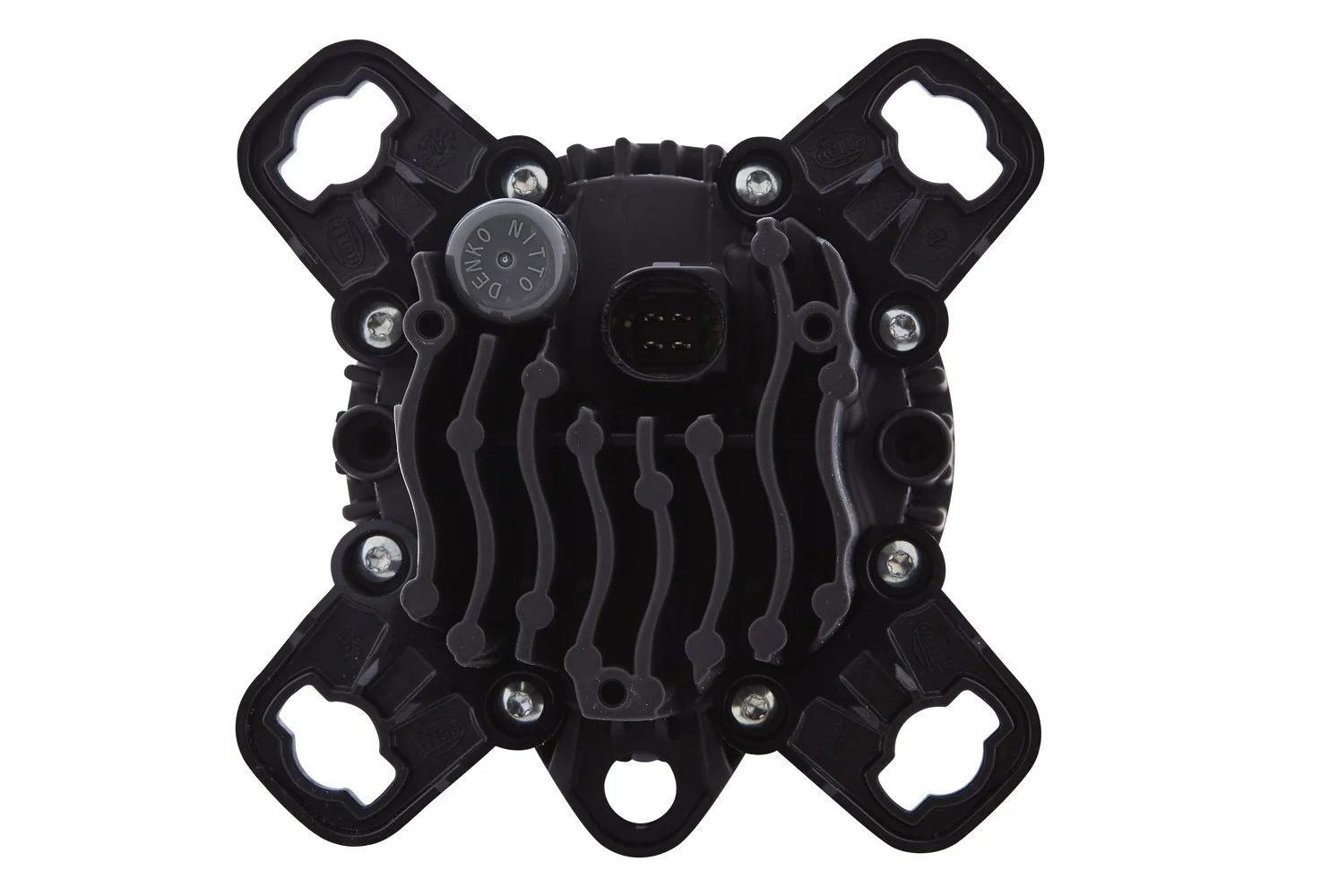

HELLA - 1F0 011 988-131 - LED/DE-High Beam Headlight, 90mm Performance L4060, 12/24V
HELLA - 1F0 011 988-131 - LED/DE-High Beam Headlight, 90mm Performance L4060, 12/24V
HELLA - 1F0 011 988-131 - LED/DE-High Beam Headlight, 90mm Performance L4060, 12/24V
HELLA - 1F0 011 988-131 - LED/DE-High Beam Headlight, 90mm Performance L4060, 12/24V
HELLA - 1F0 011 988-131 - LED/DE-High Beam Headlight, 90mm Performance L4060, 12/24V
HELLA - 1F0 011 988-131 - LED/DE-High Beam Headlight, 90mm Performance L4060, 12/24V
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

HELLA - 1F0 011 988-131 - LED/DE-High Beam Headlight, 90mm Performance L4060, 12/24V

HELLA - 1F0 011 988-131 - LED/DE-High Beam Headlight, 90mm Performance L4060, 12/24V

€165.99

(Excl. VAT)

Price

(Excl. VAT)

€165.99

Product Description

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

ACW051196BACW051198AACW051198B

Fendt

ACW051198AACW051198B

Goldhofer

261270

Hitachi

YA0007818500YA0008614300

Holmer

1019057419

Kässbohrer

7.512.322.000.0

Mercedes Benz

0005443247A0005443247

Norton

6700079

Volvo

23048172
Fits

Massey ferguson

MF 7724 (01.01.2015 - 01.01.2017)MF 6715 (01.01.2017 - 01.01.2021)MF 7722 (01.01.2017 - 01.01.2020)MF 7726 (01.01.2017 - 01.01.2020)MF 7719 (01.01.2015 - 01.01.2017)MF 7720 (01.01.2017 - 01.01.2020)MF 6716 (01.01.2017 - 01.01.2021)MF 7722 (01.01.2015 - 01.01.2017)MF 7718 (01.01.2020 - 01.01.2021)MF 7724 (01.01.2017 - 01.01.2020)MF 7726 (01.01.2015 - 01.01.2017)MF 7720 (01.01.2015 - 01.01.2017)MF 7719 (01.01.2020 - 01.01.2021)MF 7718 (01.01.2017 - 01.01.2019)MF 7718 (01.01.2015 - 01.01.2017)
SVHC
7439-92-1; Lead
Depth
91 mm
Shape
Round
Width
126 mm
Height
91 mm
Voltage
24 V / 12 V
Lamp Type
LED
Lens Colour
Crystal clear
Housing Type
Metal Housing
Light Design
DE / LED
Assembly Note
Assembly by qualified personnel required
Fitting Depth
55 mm
Mounting Type
Screw Connection
Fastening Type
3-point attachment
Housing Colour
Black
Light Function
With daytime running light (LED) / with position light (LED) / with high beam (LED)
Overall Height
126 mm
Light Functions
3
Fitting Position
Left / right
Reference Number
12.5
Registration Type
SAE
Diffusing Lens Type
Clear diffusing lens
Fulfils ECE Standard
R149 / R112 / R87 / R10 / R7 / R148
Fulfils SAE Standard
SSB 674
Supplementary Article/Supplementary Info
With LED
Supplementary Article/Supplementary Info 2
Without carrier frame
Manufacturer
HELLA
