Home
Electrical, Lighting & Batteries
Lighting
Work Lights
HELLA - 1G0 996 263-031 - LED-Worklight, Modul 90, 12/24V
HELLA - 1G0 996 263-031 - LED-Worklight, Modul 90, 12/24V
HELLA - 1G0 996 263-031 - LED-Worklight, Modul 90, 12/24V
HELLA - 1G0 996 263-031 - LED-Worklight, Modul 90, 12/24V
HELLA - 1G0 996 263-031 - LED-Worklight, Modul 90, 12/24V
HELLA - 1G0 996 263-031 - LED-Worklight, Modul 90, 12/24V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 1G0 996 263-031 - LED-Worklight, Modul 90, 12/24V

HELLA - 1G0 996 263-031 - LED-Worklight, Modul 90, 12/24V

€163.52

(Excl. VAT)

Price

(Excl. VAT)

€163.52

Product Description

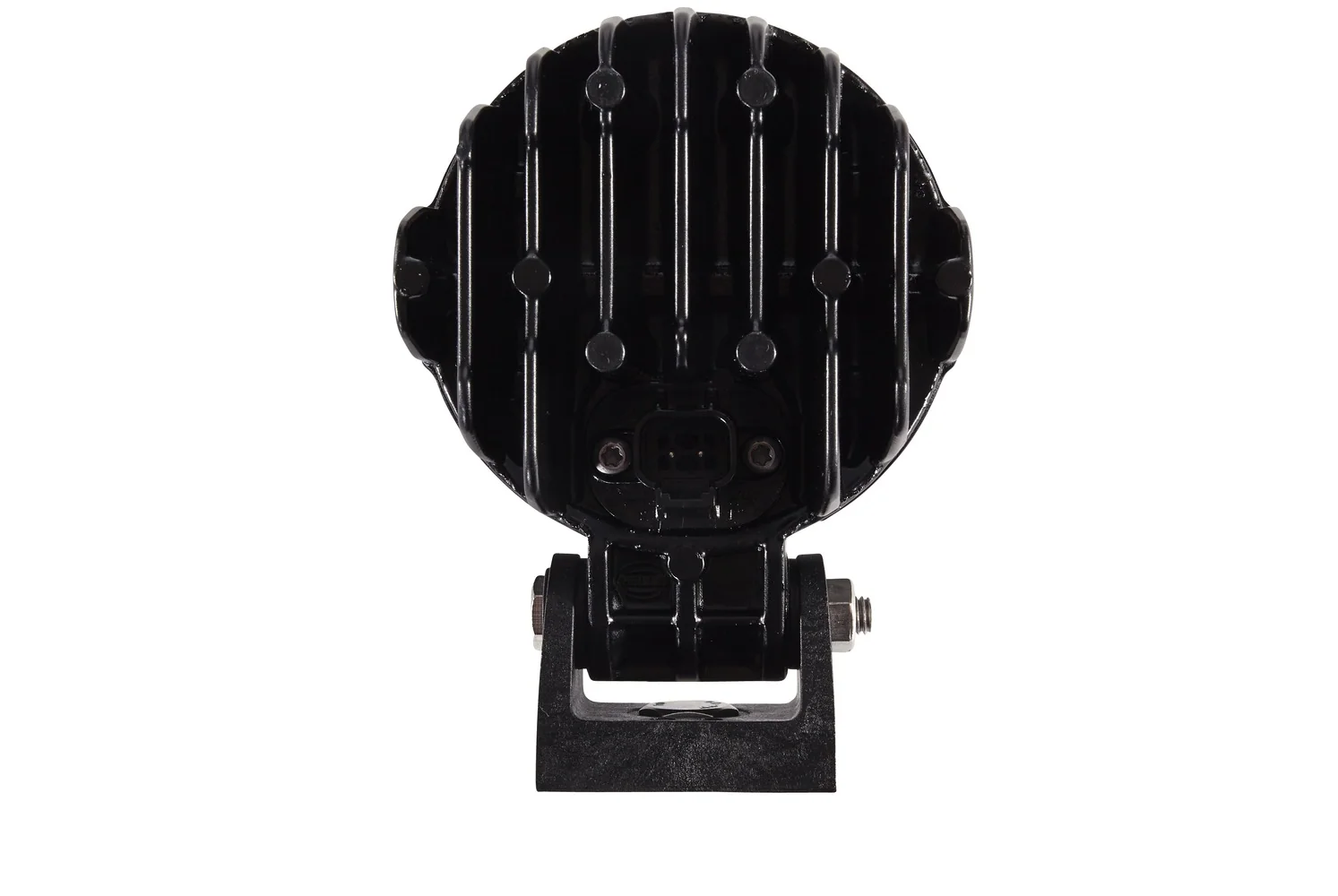

The Module 90 LED is a robust worklight with a universal, attractive design. The black aluminium housing has cooling fins that provide the necessary heat dissipation for the four high-performance LEDs. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night. Thanks to its powerful light output of 3,800 lumens, the Module 90 LED can replace xenon worklights - with a power consumption of only 36 watts. This makes the worklight ideal for use on vehicles with battery operation as well as vehicles whose alternator is already heavily loaded. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 32 volts. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making sensory perception much easier for the human eye.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

ACW2243120ACW224312A

Case ih

51678017

Fliegl

ETZXXX911568
Plug
DEUTSCH Plug
SVHC
1317-36-8; Lead Monoxide (lead Oxide) / 7439-92-1; Lead
Depth
98 mm
Width
107 mm
Height
146 mm
Voltage
12 V / 24 V
Lamp Type
LED
Housing Type
Aluminium Housing
Light Design
LED
Assembly Note
Assembly By Qualified Personnel Required
Mounting Type
Mounting / Bolted
Fastening Type
Swivelling Mounting Bracket
Housing Colour
Black
Number of LEDs
4
Power Consumption
45 W
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned Diffusing Lens
Fulfils ECE Standard
R10
Diffusing Lens Material
Glass
Protection Type (IP Code)
IP6K9K / IP6K7
Manufacturer
HELLA
