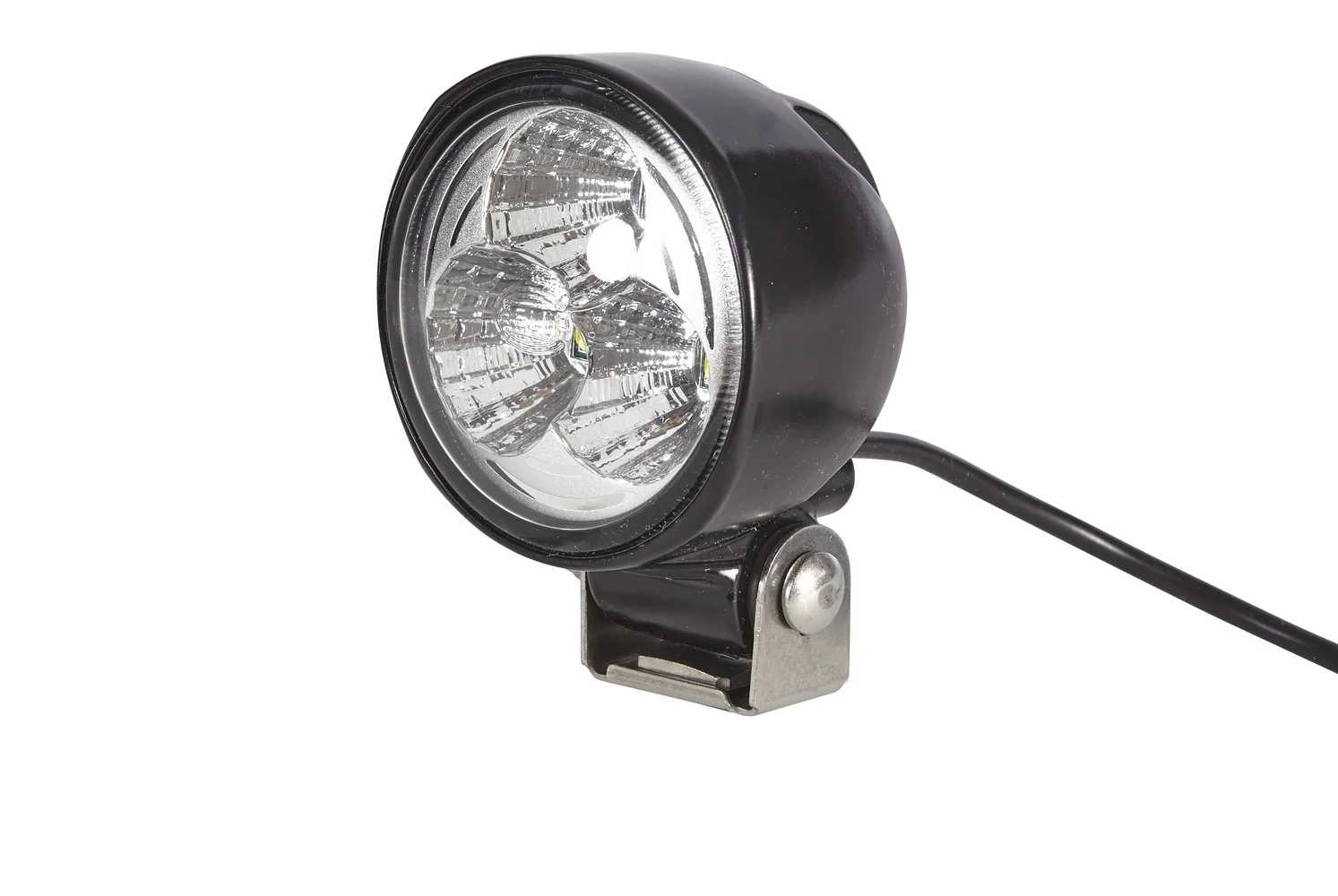

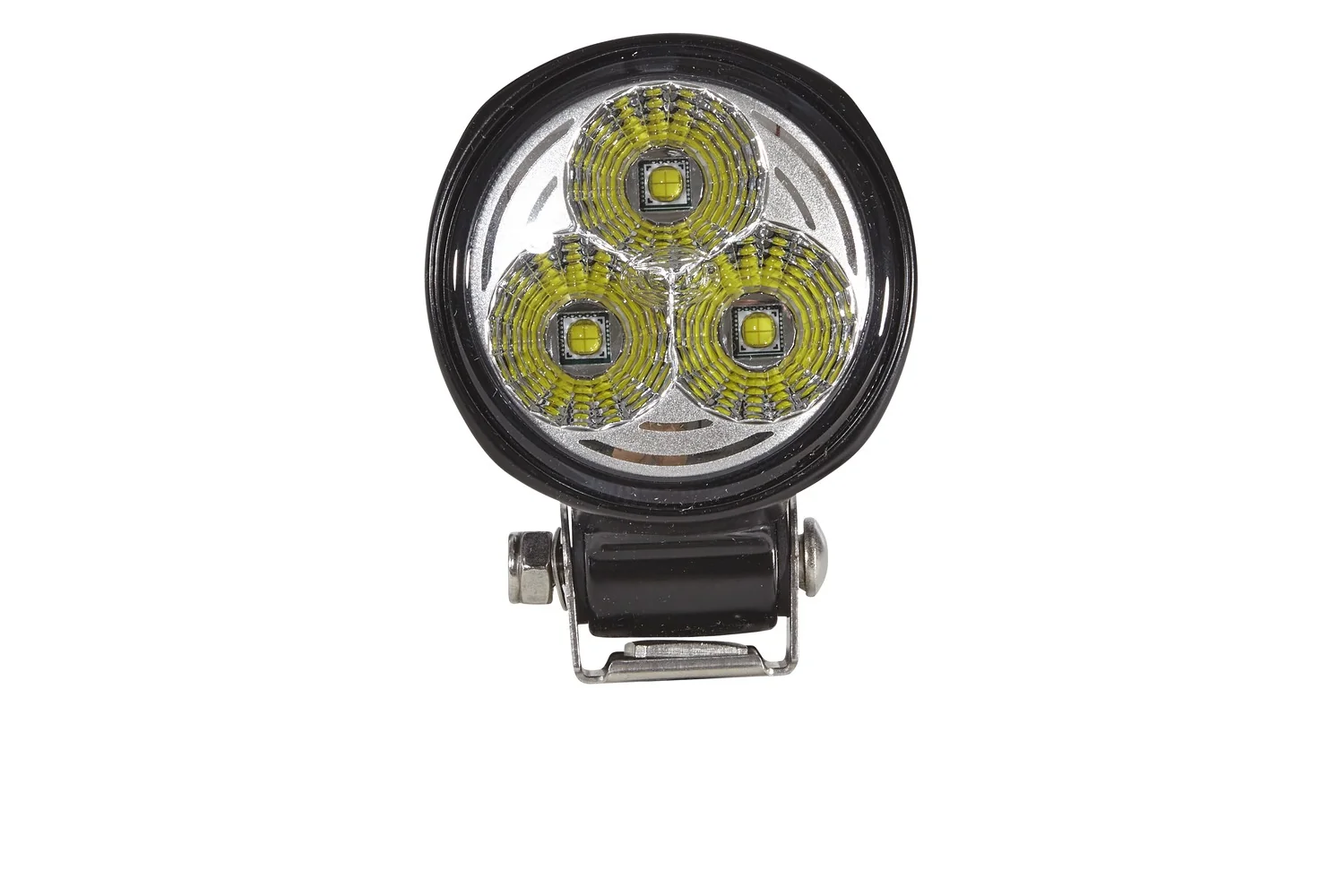

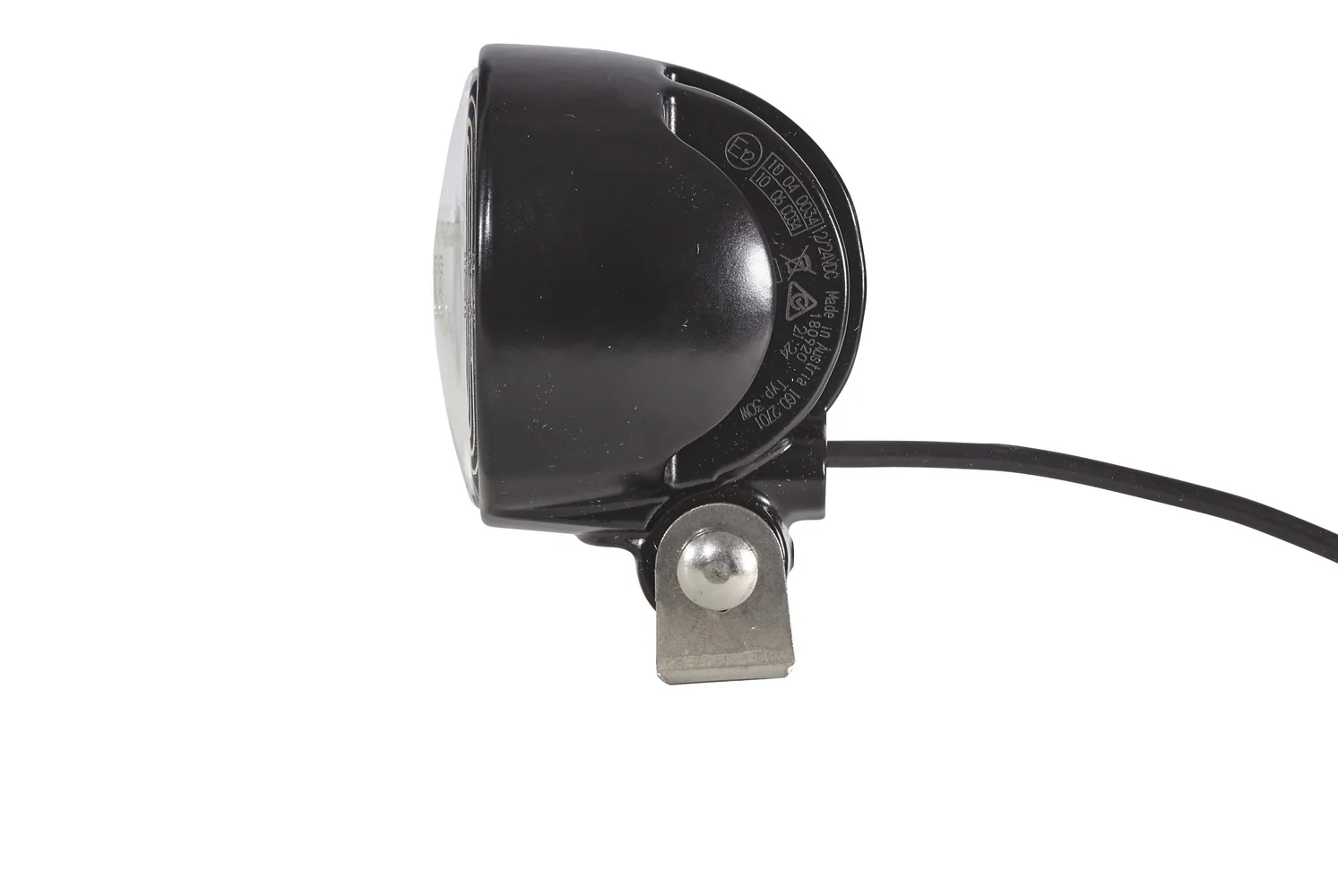

HELLA - 1G0 996 476-241 - LED-Worklight, Modul 70 Gen. IV, 12/24V
HELLA - 1G0 996 476-241 - LED-Worklight, Modul 70 Gen. IV, 12/24V
HELLA - 1G0 996 476-241 - LED-Worklight, Modul 70 Gen. IV, 12/24V
HELLA - 1G0 996 476-241 - LED-Worklight, Modul 70 Gen. IV, 12/24V
HELLA - 1G0 996 476-241 - LED-Worklight, Modul 70 Gen. IV, 12/24V
HELLA - 1G0 996 476-241 - LED-Worklight, Modul 70 Gen. IV, 12/24V

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping

Pay Securely with

HELLA - 1G0 996 476-241 - LED-Worklight, Modul 70 Gen. IV, 12/24V

HELLA - 1G0 996 476-241 - LED-Worklight, Modul 70 Gen. IV, 12/24V

€109.47

(Excl. VAT)

Price

(Excl. VAT)

€109.47

Product Description

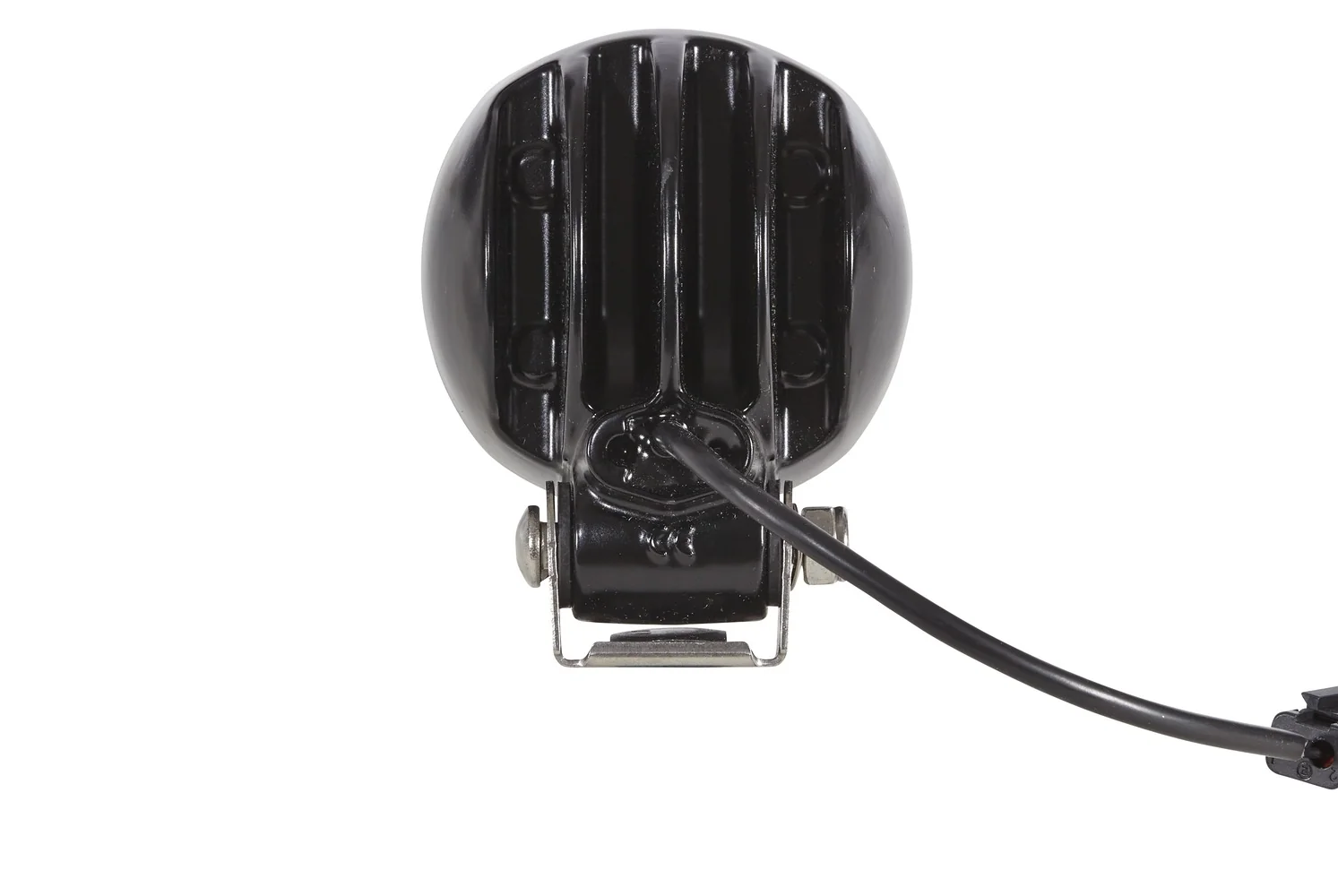

With the Module 70 LED Generation IV, HELLA is launching a compact worklight with very powerful light output. For the first time, LED light output at xenon level can be achieved in this compact design. Equipped with 3 high-performance multi-chip LEDs, this worklight produces 2,500 measured lumens with an energy consumption of only 30 watts. The black housing of the Module 70 LED Gen. IV is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs. The Module 70 LED Gen. IV is a robust worklight for various applications despite its compact form. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. In addition to classic close-range and wide-range illumination, there is the Module 70 LED Gen. IV in another extra-wide special illumination. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is very similar to daylight, making it possible to distinguish colours more clearly in the dark. Thus, making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The electronics of the Module 70 LED Gen. IV is multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Plug
DEUTSCH plug
Cable
190 mm
Depth
74 mm
Width
83 mm
Height
110 mm
Voltage
24 V / 12 V
LampType
LED
HousingType
Aluminium Housing
LightDesign
LED
AssemblyNote
Assembly by qualified personnel required
LuminousFlux
2500 lm
MountingType
Mounting / Bolted
NumberOfLeds
3
FasteningType
Swivelling Mounting Bracket
HousingColour
Black
PowerConsumption
30 W
ColourTemperature
6500 K
DiffusingLensType
Clear diffusing lens
LightDistribution
Long-range illumination
FulfilsEceStandard
R10
ProtectionTypeIpCode
IP6K7 / IP6K9K
DiffusingLensMaterial
Glass
Manufacturer
HELLA
