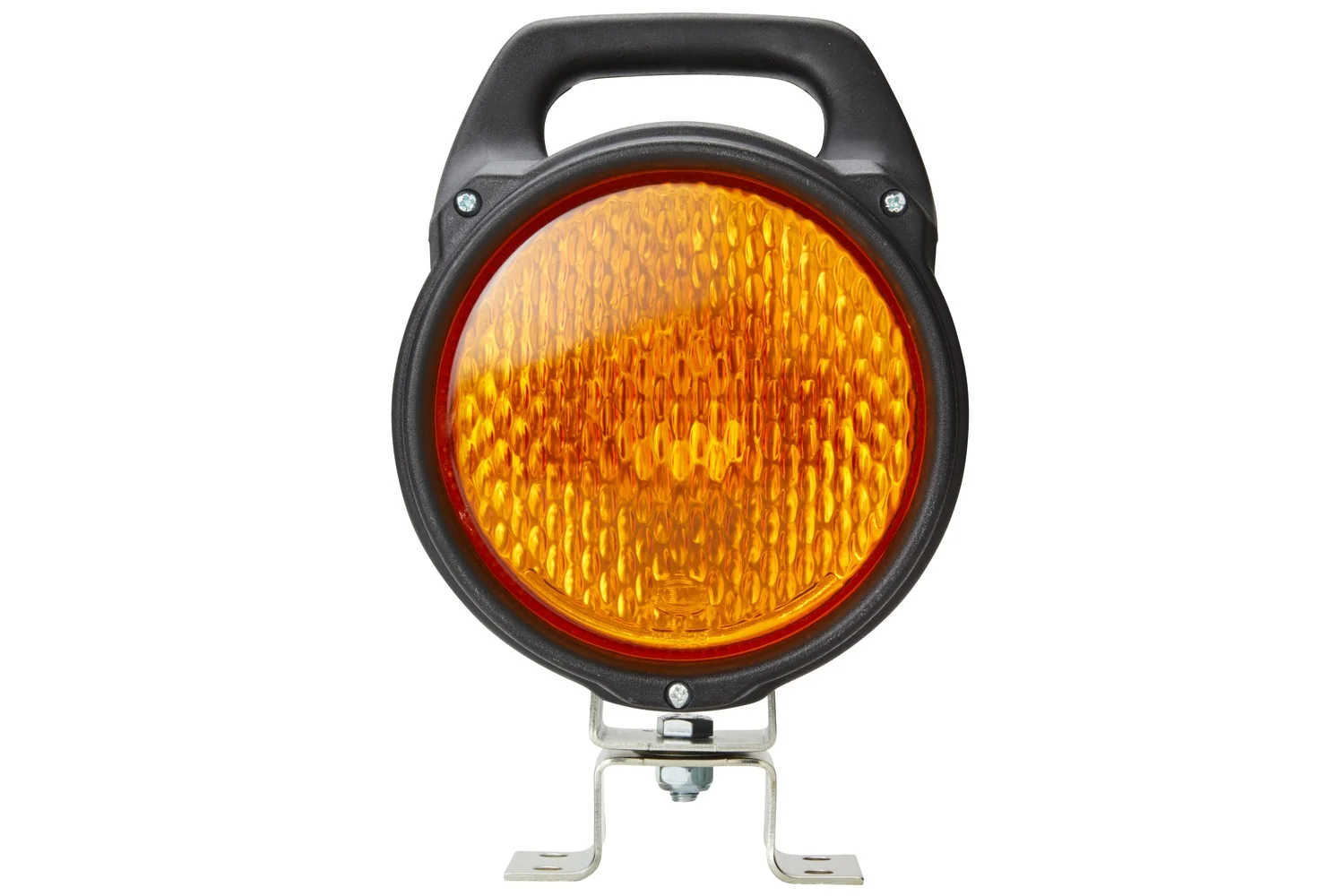

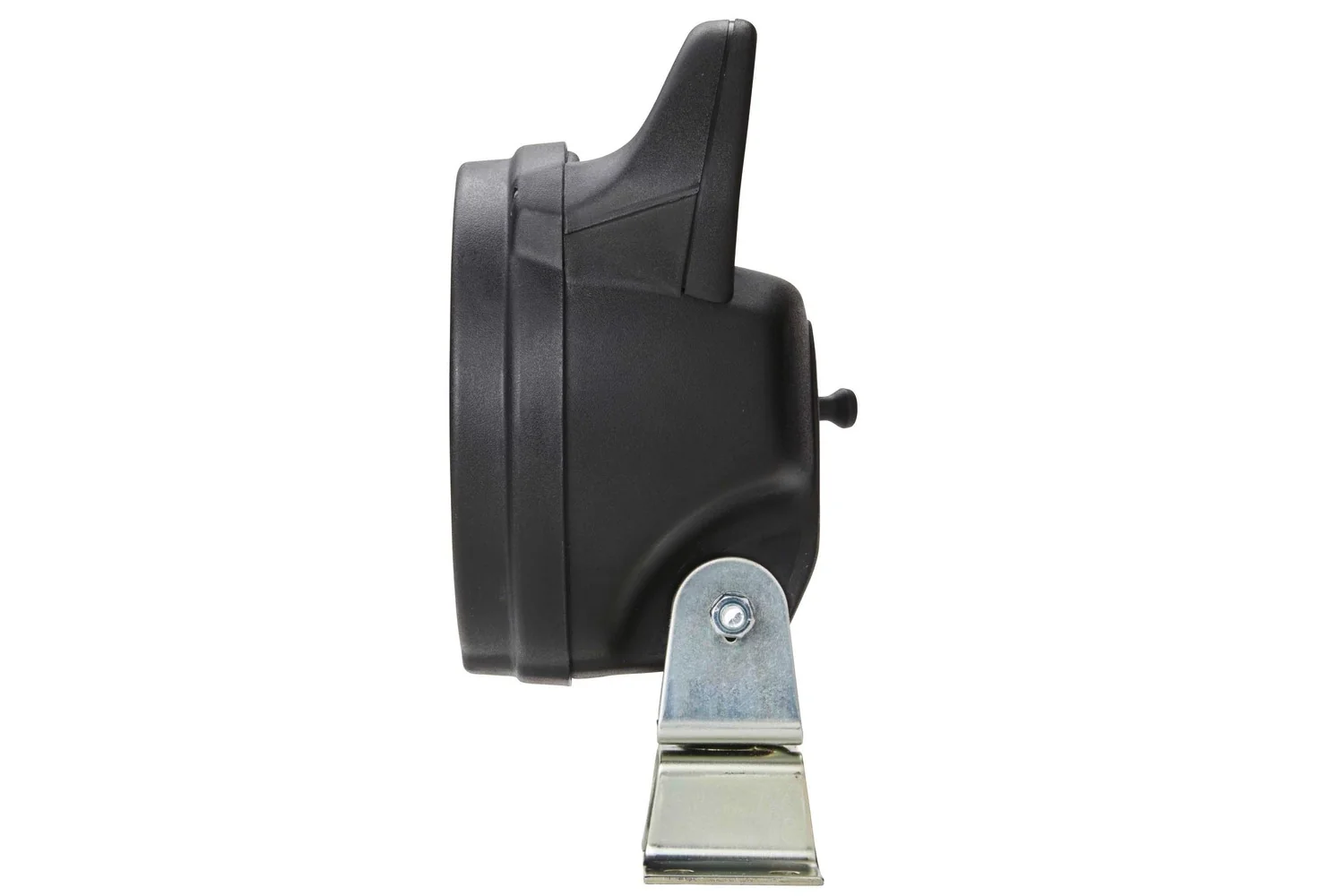

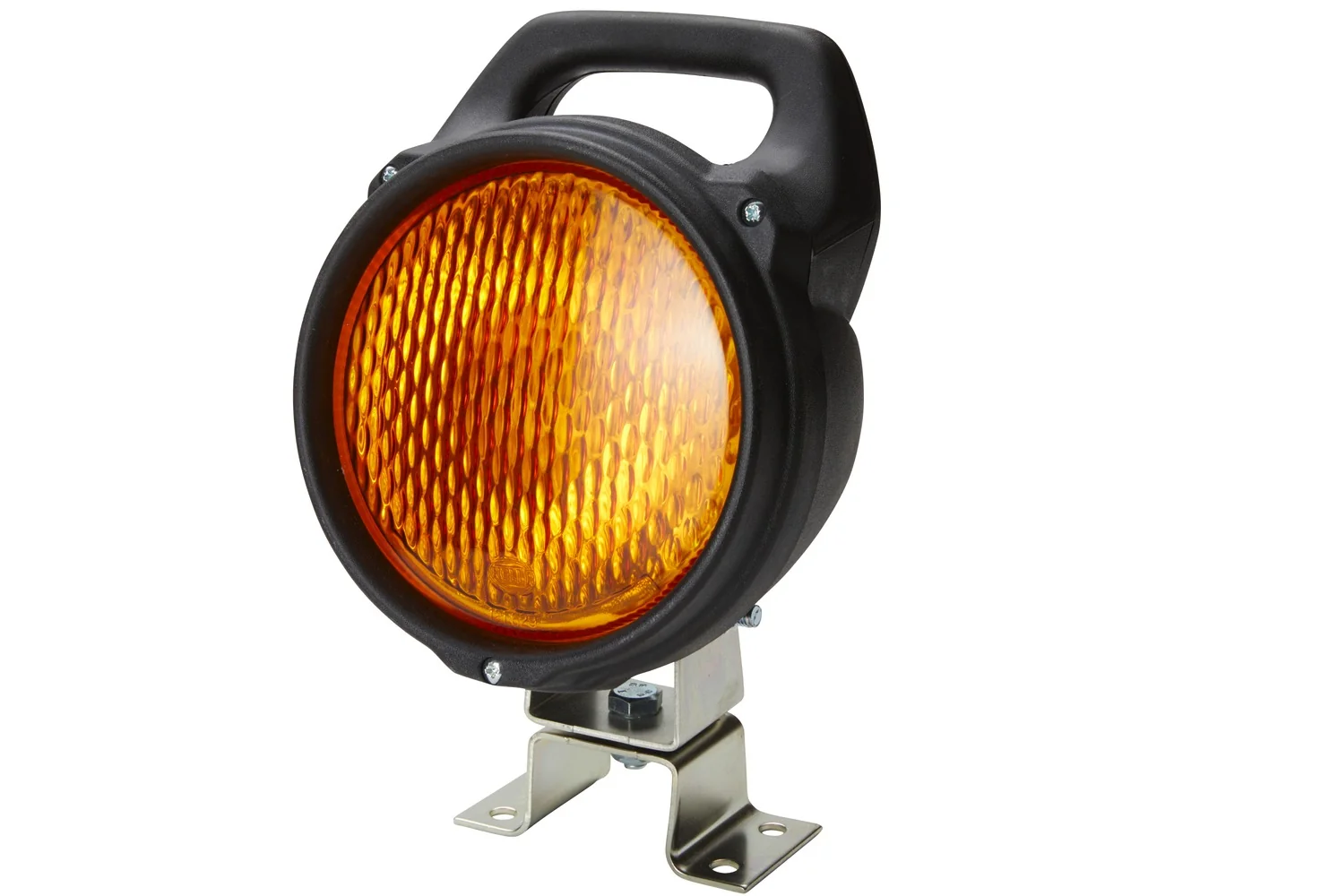

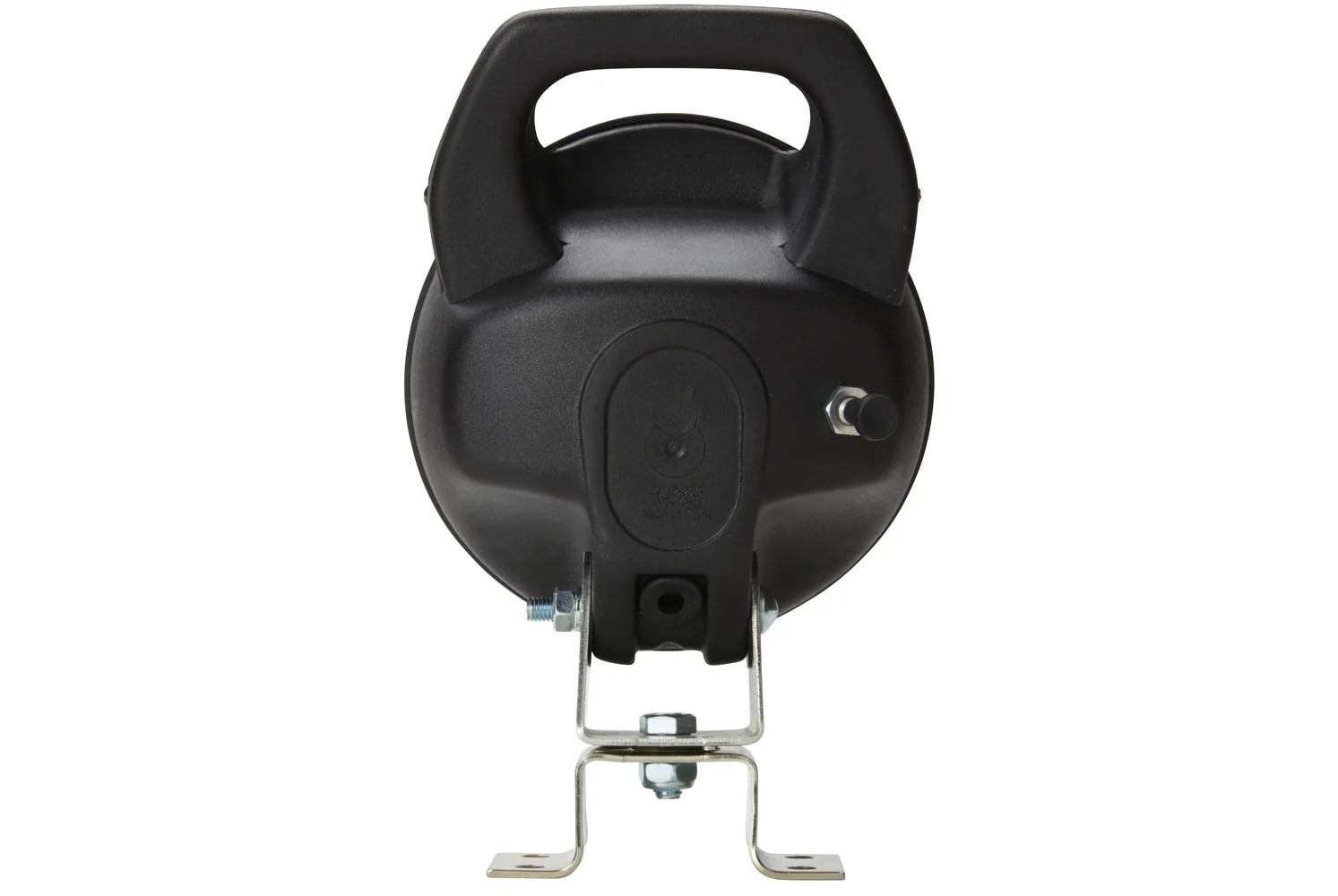

HELLA - 1G4 003 470-131 - Halogen-Worklight, Matador, 24V
HELLA - 1G4 003 470-131 - Halogen-Worklight, Matador, 24V
HELLA - 1G4 003 470-131 - Halogen-Worklight, Matador, 24V
HELLA - 1G4 003 470-131 - Halogen-Worklight, Matador, 24V
HELLA - 1G4 003 470-131 - Halogen-Worklight, Matador, 24V
HELLA - 1G4 003 470-131 - Halogen-Worklight, Matador, 24V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping on orders over €60

Pay Securely with

HELLA - 1G4 003 470-131 - Halogen-Worklight, Matador, 24V

HELLA - 1G4 003 470-131 - Halogen-Worklight, Matador, 24V

€44.01

(Excl. VAT)

Price

(Excl. VAT)

€44.01

Product Description

Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working field at close range. The light source is an H3 bulb (not included in all versions). The worklight can be used (depending on the bulb) with both 12V and 24V on-board voltage. The black housing of this robust worklight is made of glass-fibre reinforced plastic. To protect the diffusing lens, the housing is provided with a protruding rim at its front. The handle, together with the swivel foot, simplifies the adjustment of the work lights so that the working area can be optimally illuminated. The bracket enables a stable four-point attachment of the worklight. The cable entry is sealed by a grommet. Depending on the version, the Matador offers additional advantages such as rotary switches (for versions -001 and -031) or protective grids (for versions -031 and -051). Article 1G4 003 470-141 is only suitable for vertical mounting, as the power connection is made via an easily detachable pipe socket that fits onto push-on tubes (Ø 24 mm) for beacons.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Daf

906484

Man

ZF251030002

Mercedes Benz

000 544 11 47000 623 50 84A 000 544 11 47A 000 623 50 84A 623 508 4

Scania

1605160

Volvo

8153930
Plug
Open cable ends
Depth
126 mm
Width
168 mm
Height
227 mm
Voltage
24 V
Lamp Type
F2
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly by qualified personnel required
Mounting Type
Mounting / Screw Connection
Fastening Type
Four-point attachment
Housing Colour
Black
Power Consumption
35 W
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Diffusing Lens Material
Glass
Protection Type IP Code
IP5K4K
Manufacturer
HELLA
