Home
Electrical, Lighting & Batteries
Lighting
Work Lights

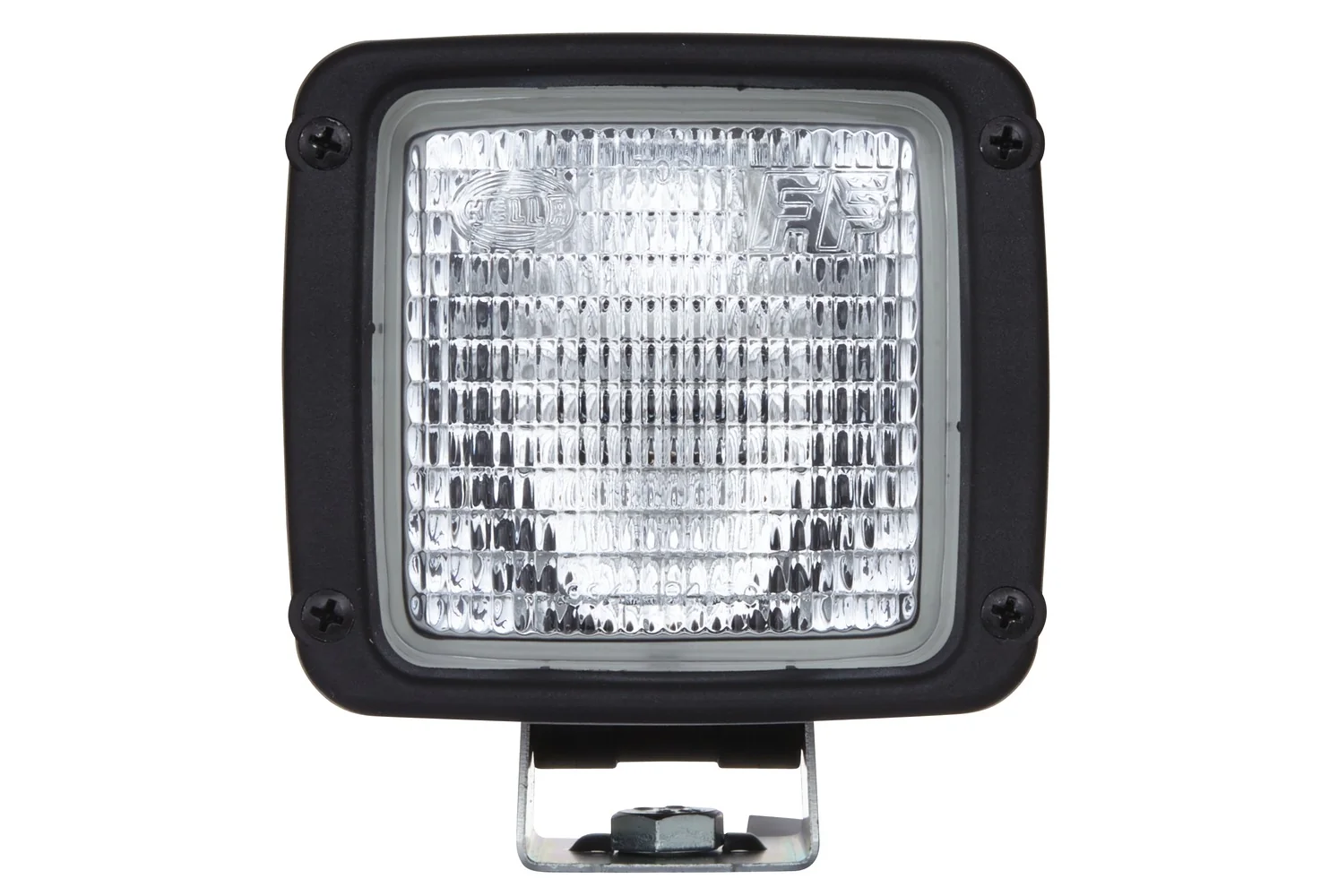

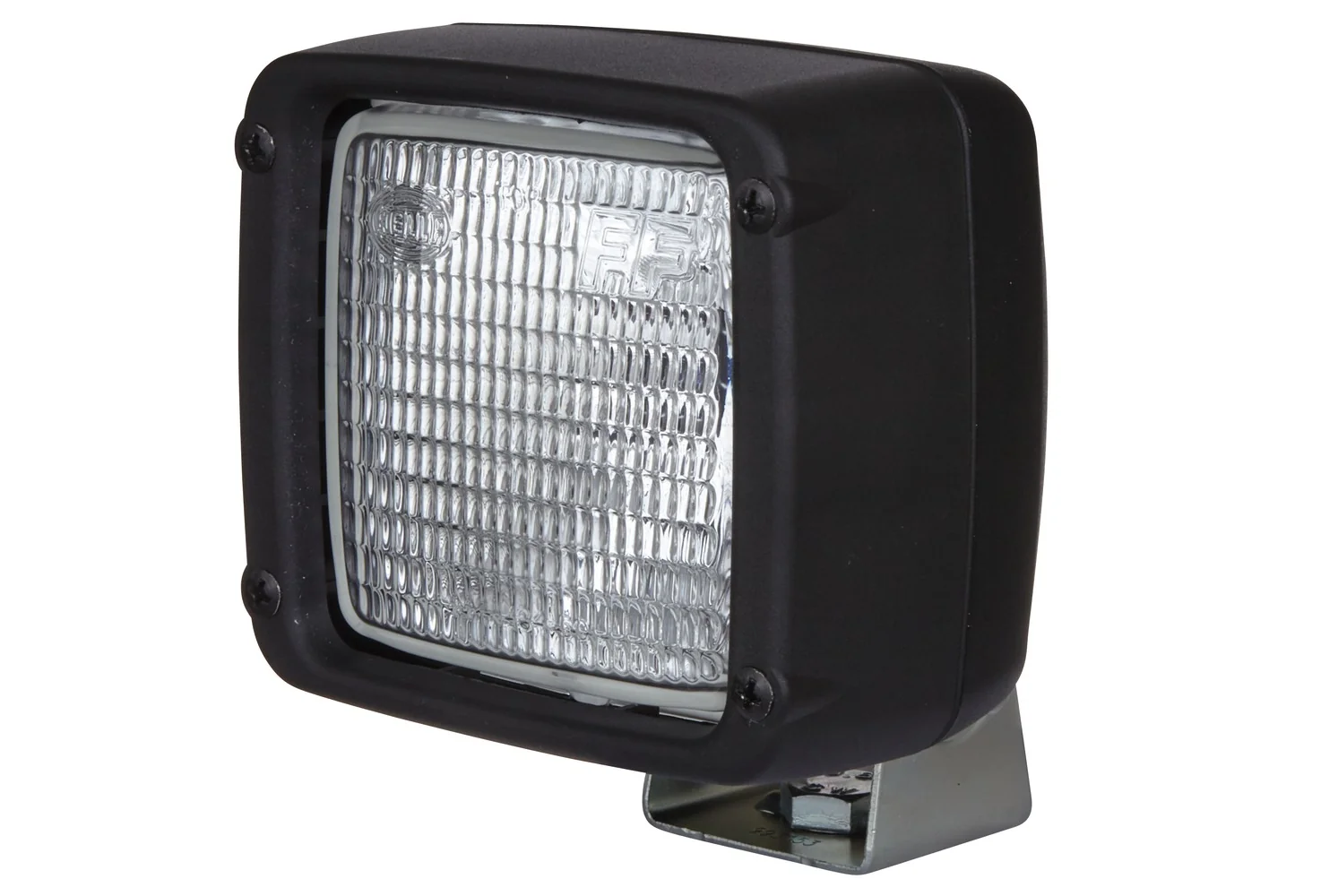

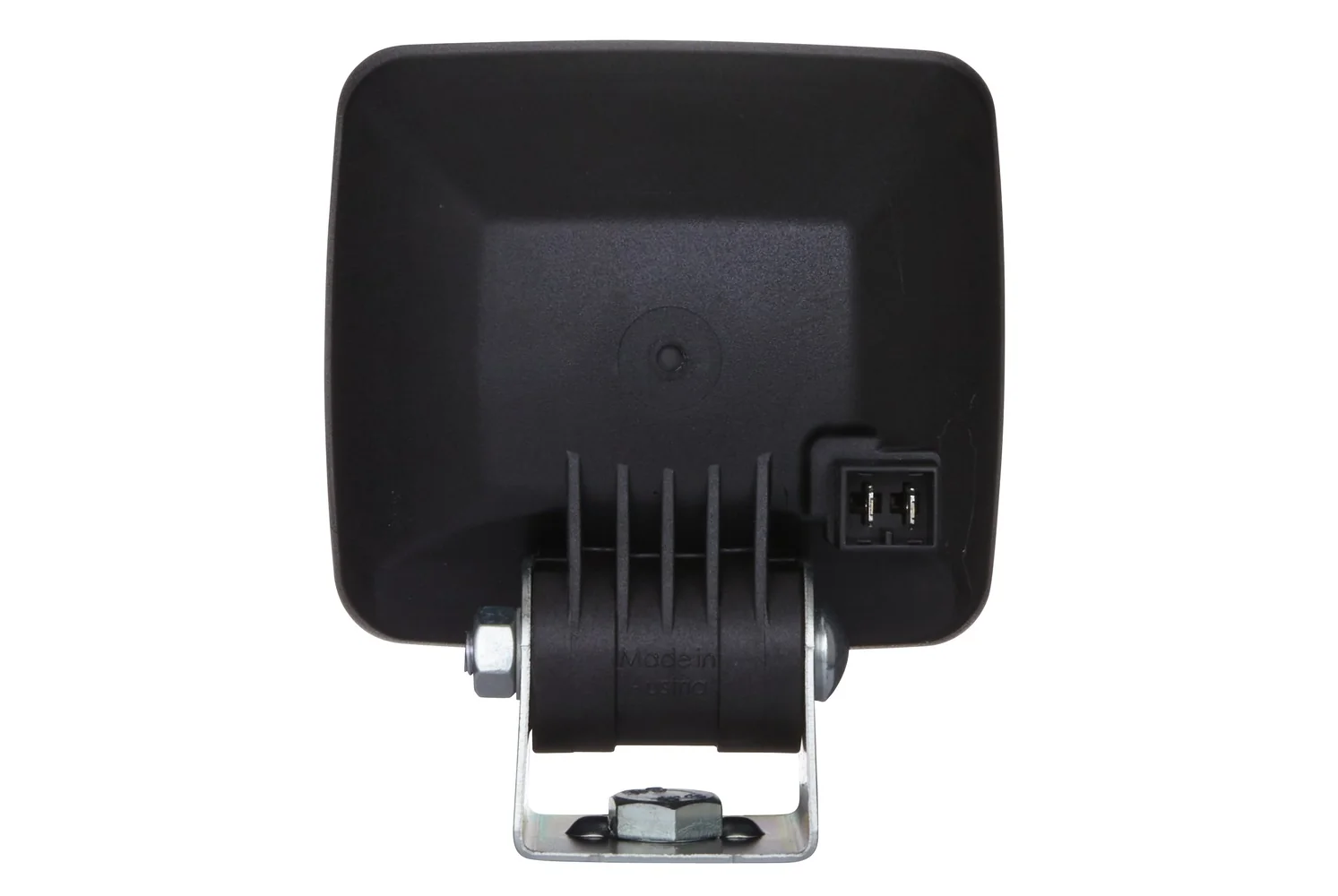

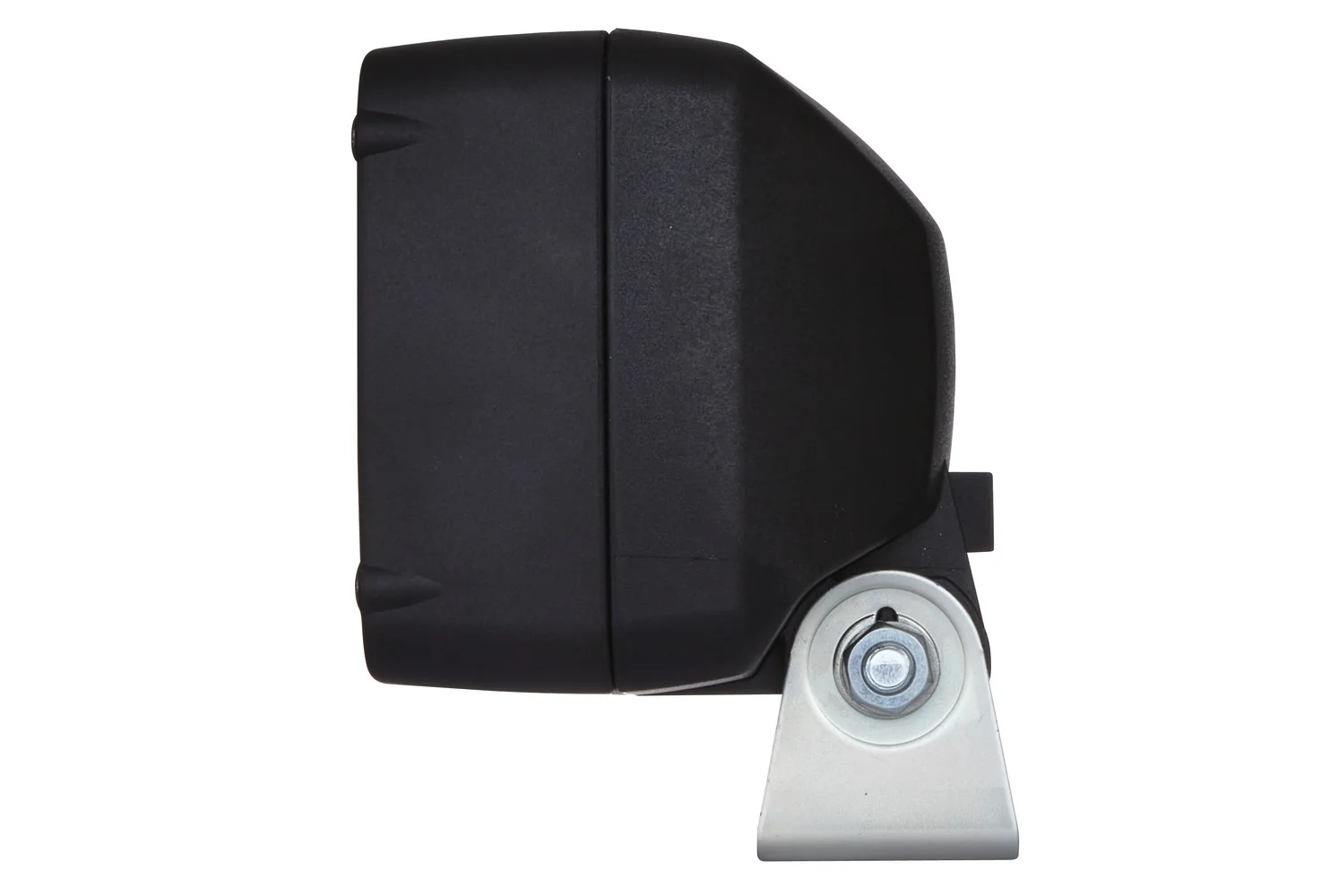

HELLA - 1GA 007 506-001 - Halogen-Worklight, Ultra Beam, 12/24V
HELLA - 1GA 007 506-001 - Halogen-Worklight, Ultra Beam, 12/24V
HELLA - 1GA 007 506-001 - Halogen-Worklight, Ultra Beam, 12/24V
HELLA - 1GA 007 506-001 - Halogen-Worklight, Ultra Beam, 12/24V
HELLA - 1GA 007 506-001 - Halogen-Worklight, Ultra Beam, 12/24V
HELLA - 1GA 007 506-001 - Halogen-Worklight, Ultra Beam, 12/24V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping on orders over €60

Pay Securely with

HELLA - 1GA 007 506-001 - Halogen-Worklight, Ultra Beam, 12/24V

HELLA - 1GA 007 506-001 - Halogen-Worklight, Ultra Beam, 12/24V

€24.13

(Excl. VAT)

Price

(Excl. VAT)

€24.13

Product Description

The Ultra Beam is a compact and robust halogen worklight. The aluminium reflector of the worklight is based on free-form technology, which makes it possible to illuminate the working area in a very targeted manner. Despite its compact dimensions, the reflector provides excellent light output. The black lamp housing of this robust worklight is made of glass-fibre reinforced plastic, which is acid-resistant and corrosion-resistant. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agrifac

7788682

Ahlmann

00299594109323A

Atlas copco

1089.9306.02

Bucher

622048A

Case ih

0 605315 16

Caterpillar

0013733000137350

Claas

001 373 50013 733 0

Daf

1529598867450

Demag

00293212

Deutz Fahr

011 6046038044 11937.4044 24195.4044 25599.4160 46038280 392950280 39295010280 392960

Doll

7028317

Faun

7482 62

Faymonville

7792

Feldbinder

066244

Fuchs

5350661225

Hamm

1272209

Hitachi

389121-53150

Holder

023683

Hüffermann

2-EL0019-0600

Hyster

1646407

Hyundai

21N6-DA0580

Ikarus

700.04 0093-29370004-93293

Jcb

700/38800700/43900700/50022700/50091700/50102

John deere

AZ 55 467F0 38 788

Jungheinrich

050352275005147151134940

Kamag

80333485

Kässbohrer

8-955-000-117

Kögel

33348580333485

Kramer

1404500

Krone

0924635/00924635/158154365815436/0

Langendorf

1084179

Liebherr

6 071 083 05

Linde

000 974 04 23000 974 04 43000 974 04 4960845895353204

Manitou

4109323A

Massey ferguson

4291408M924291409M91

Mercedes Benz

000 482 57 04A 000 482 57 04A 00Q 482 57 04A QEV 111 AC AC KMQ482 5704QEV111ACACKM

Närko

2172104550

Paus

512678

Reform

H093000390

Rosenbauer

757324M1149-981000

Same

16046038ABCD

Sany

B241100000052

Scania

19066291906630

Schwarzmüller

40481

Sommer

2800871001

Steinbock

050 35227

Still

000 974 04 4901749075278856084589535320497404239740443

Terex

00293212535066122594700293212

Timberjack

F038788

Toyota

005017856660-FSF94-71

Valmet

34203003420330342033004 291 408 M924 291 409 M91

Van hool

10704299

Volvo

2907377

Ziegler

186247
Fits

Deutz Fahr

Agrotron 230 (01.01.2000 - 01.01.2003)Agrotron 4.90 (01.01.1995 - 01.01.1996)Agrotron 265 (01.01.2004 - 01.01.2007)Agrotron 150 (01.01.2002 - 01.01.2003)Agrotron 110 (01.01.2002 - 01.01.2003)Agrotron 135 (01.01.2002 - 01.01.2003)Agrotron 4.85 (01.01.1995 - 01.01.1996)Agrotron 85 (01.01.2000 - 01.01.2002)Agrotron 4.80 (01.01.1995 - 01.01.1996)Agrotron 6.00 (01.01.1996 - 01.01.1996)Agrotron 110 (01.01.2001 - 01.01.2003)Agrotron 6.15 (01.01.1996 - 01.01.1996)Agrotron 4.90 (01.01.1995 - 01.01.1995)Agrotron 115 (01.01.2002 - 01.01.2003)Agrotron 6.20 (01.01.1995 - 01.01.1996)Agrotron 6.15 (01.01.1995 - 01.01.1996)Agrotron 85 (01.01.2002 - 01.01.2003)Agrotron 115 (01.01.2001 - 01.01.2008)Agrotron 80 (01.01.2000 - 01.01.2003)Agrotron 110 (01.01.2000 - 01.01.2001)Agrotron 150 (01.01.1999 - 01.01.2003)Agrotron 6.05 (01.01.1996 - 01.01.1996)Agrotron 6.05 (01.01.1995 - 01.01.1996)Agrotron 105 (01.01.2002 - 01.01.2003)Agrotron 210 (01.01.2003 - 01.01.2003)Agrotron 260 (01.01.2001 - 01.01.2003)Agrotron 6.45 (01.01.1996 - 01.01.1996)Agrotron 90 (01.01.2001 - 01.01.2003)Agrotron 4.95 (01.01.1995 - 01.01.1995)Agrotron 1130 (01.01.2001 - 01.01.2006)Agrotron 6.05 (01.01.1995 - 01.01.1995)Agrotron 4.70 (01.01.1995 - 01.01.1996)Agrotron 6.30 (01.01.1996 - 01.01.1996)Agrotron 6.30 (01.01.1995 - 01.01.1996)Agrotron 115 (01.01.2000 - 01.01.2001)Agrotron 4.95 (01.01.1995 - 01.01.1996)Agrotron 106 (01.01.2002 - 01.01.2003)Agrotron 100 (01.01.2000 - 01.01.2003)Agrotron 1160 (01.01.2001 - 01.01.2003)Agrotron 1160 (01.01.2001 - 01.01.2007)Agrotron 115 (01.01.2001 - 01.01.2003)Agrotron 260 (01.01.2000 - 01.01.2003)Agrotron 6.45 (01.01.1995 - 01.01.1996)Agrotron 230 (01.01.2001 - 01.01.2003)Agrotron 6.01 (01.01.1996 - 01.01.1996)Agrotron 4.85 (01.01.1995 - 01.01.1995)Agrotron 150 (01.01.2001 - 01.01.2003)Agrotron 120 (01.01.2002 - 01.01.2003)Agrotron 4.80 (01.01.1995 - 01.01.1995)Agrotron 135 (01.01.2001 - 01.01.2002)Agrotron 6.15 (01.01.1995 - 01.01.1995)Agrotron 1145 (01.01.2001 - 01.01.2007)Agrotron 105 (01.01.2000 - 01.01.2002)Agrotron 6.00 (01.01.1995 - 01.01.1995)Agrotron 90 (01.01.2000 - 01.01.2003)Agrotron 120 (01.01.2000 - 01.01.2002)Agrotron 6.00 (01.01.1995 - 01.01.1996)Agrotron 215 (01.01.2004 - 01.01.2007)Agrotron 1145 (01.01.2001 - 01.01.2003)Agrotron 165 (01.01.2000 - 01.01.2003)Agrotron 165 (01.01.2002 - 01.01.2003)Agrotron 1130 (01.01.2001 - 01.01.2003)Agrotron 150 (01.01.2000 - 01.01.2004)Agrotron 260 (01.01.2000 - 01.01.2001)Agrotron 106 (01.01.2001 - 01.01.2003)Agrotron 6.20 (01.01.1996 - 01.01.1996)Agrotron 135 (01.01.2000 - 01.01.2002)Agrotron 4.90 (01.01.1996 - 01.01.1996)

John deere

7200 (01.01.2002 - 01.01.2007)7400 (01.01.2002 - 01.01.2007)7500 (01.01.2002 - 01.01.2007)1023E (01.01.2019 >)7300 (01.01.2002 - 01.01.2007)
Plug
AMP
Depth
97 Mm
Width
112 Mm
Height
127 Mm
Voltage
24 V / 12 V
Quantity
1
Lamp Type
H3
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly By Qualified Personnel Required
Mounting Type
Bolted / Mounting
Fastening Type
Swivelling Mounting Bracket / Vertical
Housing Colour
Black
Power Consumption
55 W / 70 W
Registration Type
ADR/GGVS
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned Diffusing Lens
Supplementary Article
Without Cable / Without Bulbs
Diffusing Lens Material
Glass
Protection Type IP Code
IP6K9K
Manufacturer
HELLA

Similar items you might like

  • Hella

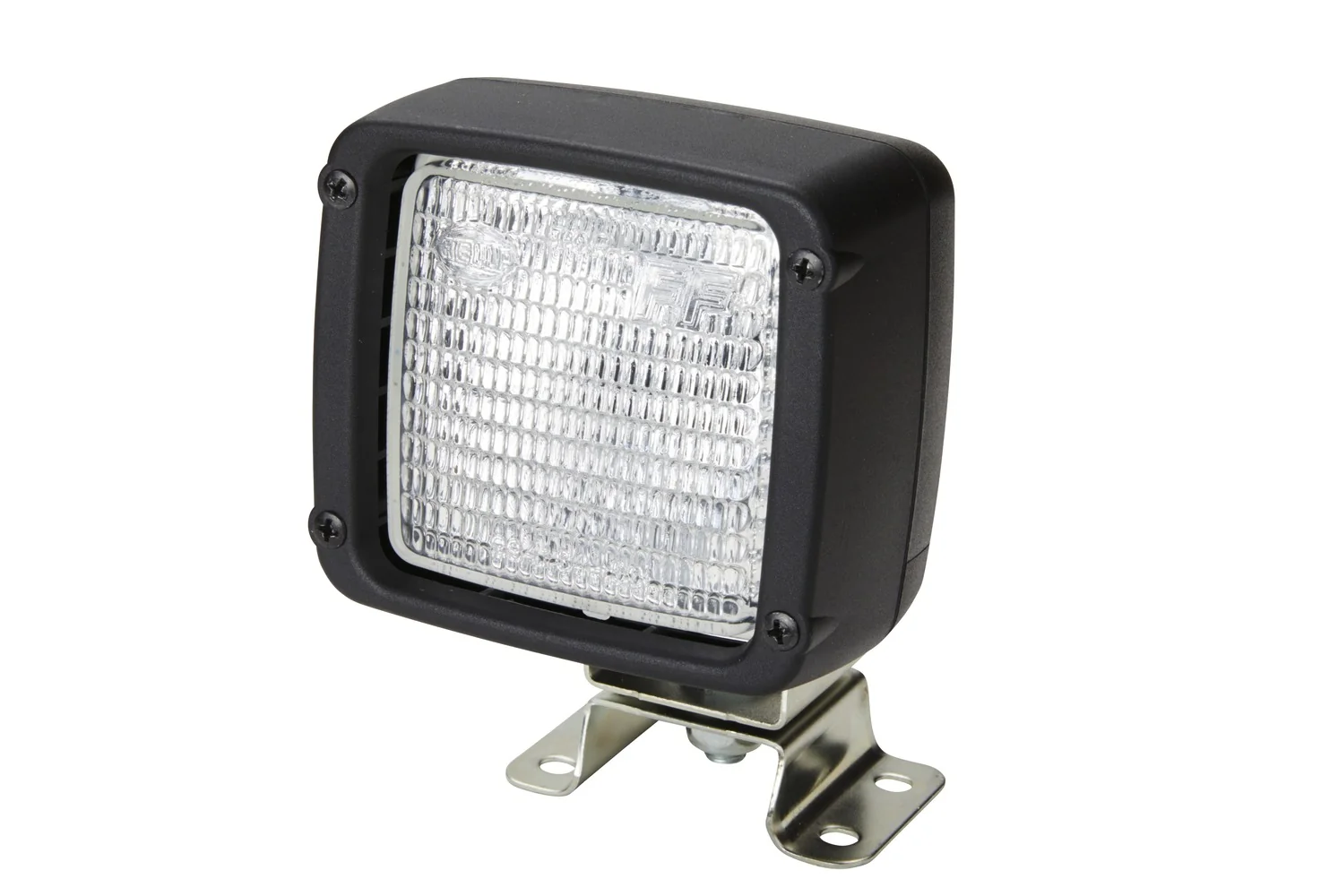

    HELLA - 1GA 007 506-011 - Halogen-Worklight, Ultra Beam, 12/24V

    Hella

    €26.85

  • Hella

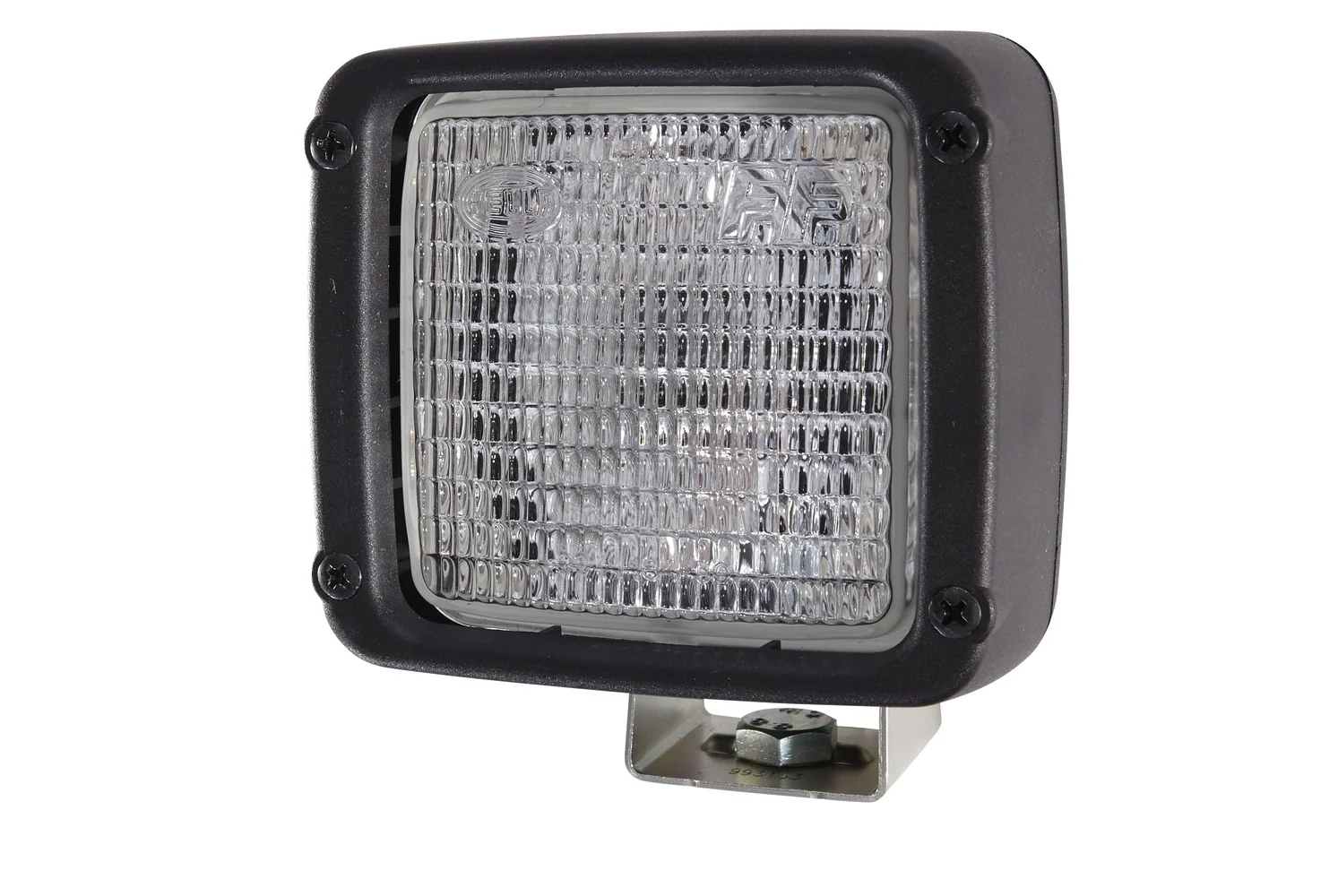

    HELLA - 1GA 007 506-081 - Halogen-Worklight, Ultra Beam, 12/24V
