Home
Electrical, Lighting & Batteries
Lighting
Work Lights
HELLA - 1GA 996 083-001 - Halogen-Worklight, Ultra Beam, 24/12V
HELLA - 1GA 996 083-001 - Halogen-Worklight, Ultra Beam, 24/12V
HELLA - 1GA 996 083-001 - Halogen-Worklight, Ultra Beam, 24/12V
HELLA - 1GA 996 083-001 - Halogen-Worklight, Ultra Beam, 24/12V
HELLA - 1GA 996 083-001 - Halogen-Worklight, Ultra Beam, 24/12V
HELLA - 1GA 996 083-001 - Halogen-Worklight, Ultra Beam, 24/12V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping on orders over €60

Pay Securely with

HELLA - 1GA 996 083-001 - Halogen-Worklight, Ultra Beam, 24/12V

HELLA - 1GA 996 083-001 - Halogen-Worklight, Ultra Beam, 24/12V

€26.85

(Excl. VAT)

Price

(Excl. VAT)

€26.85

Product Description

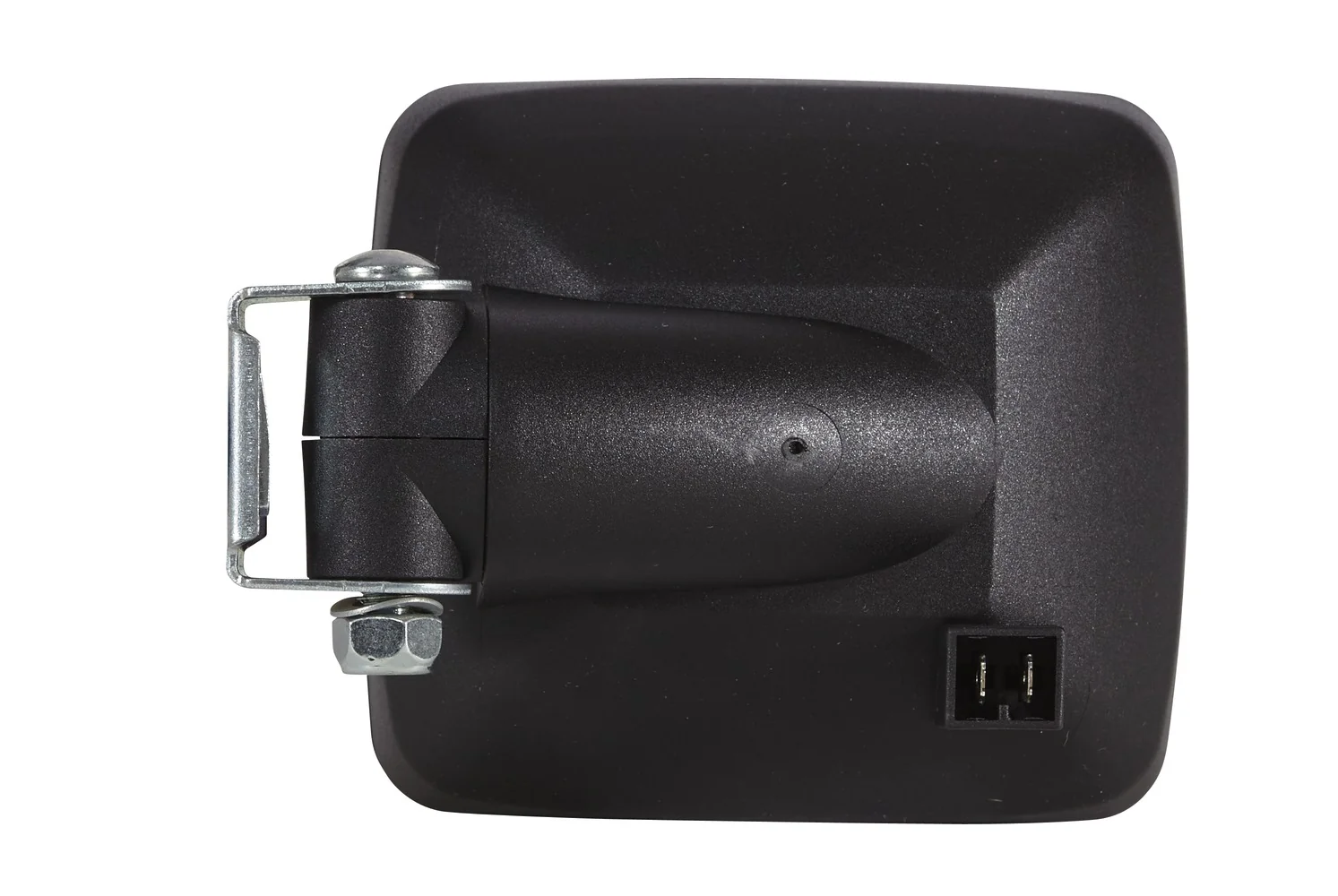

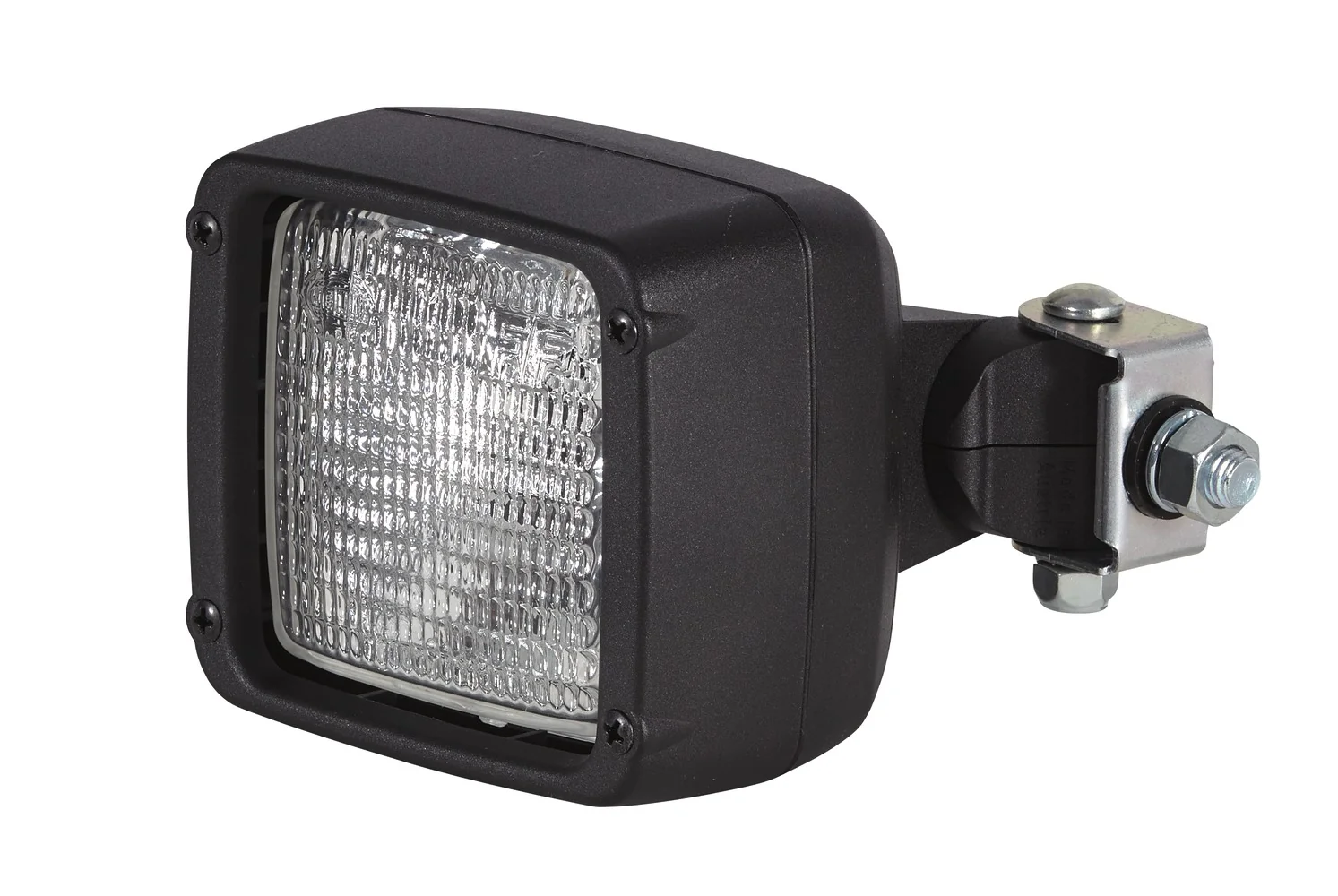

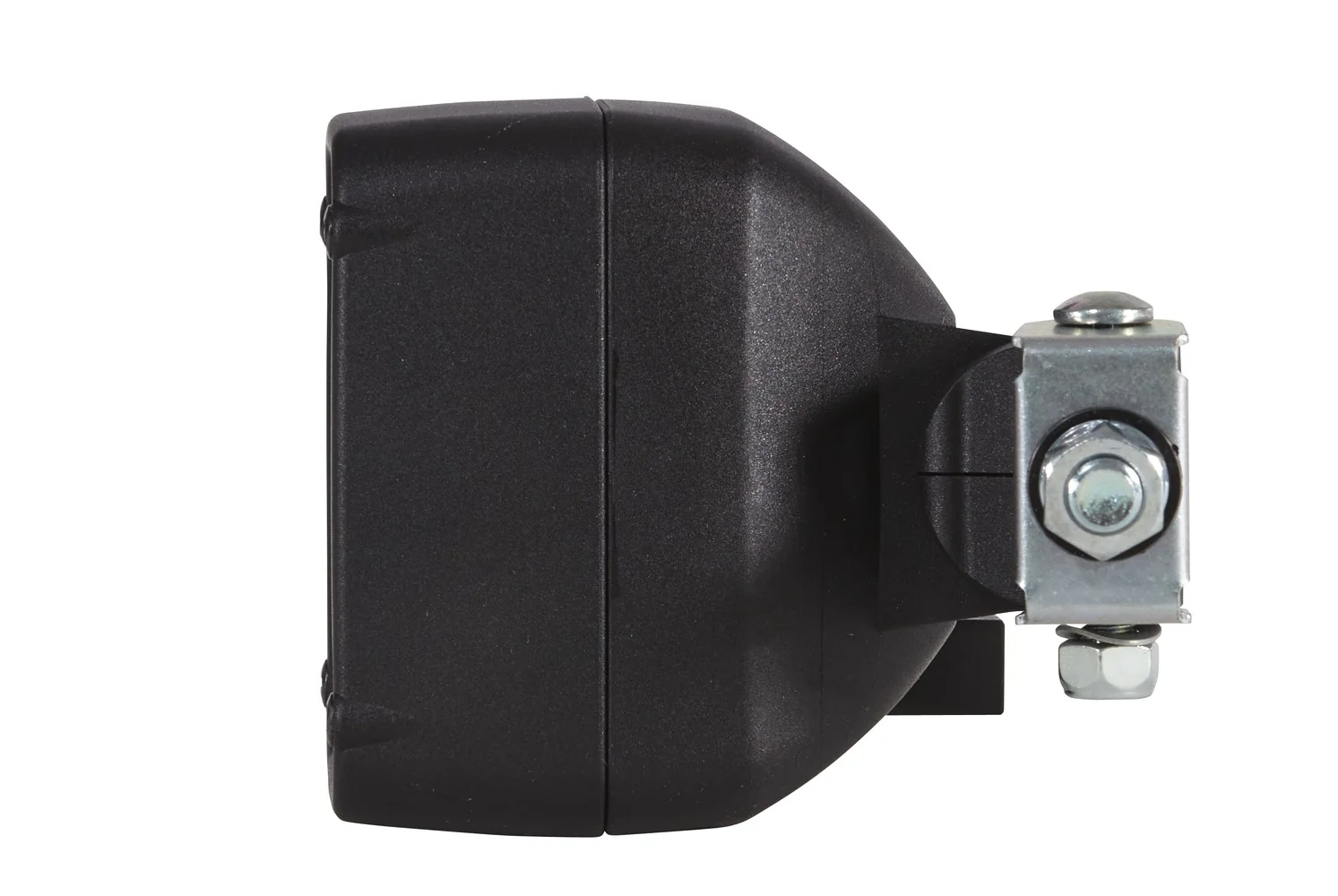

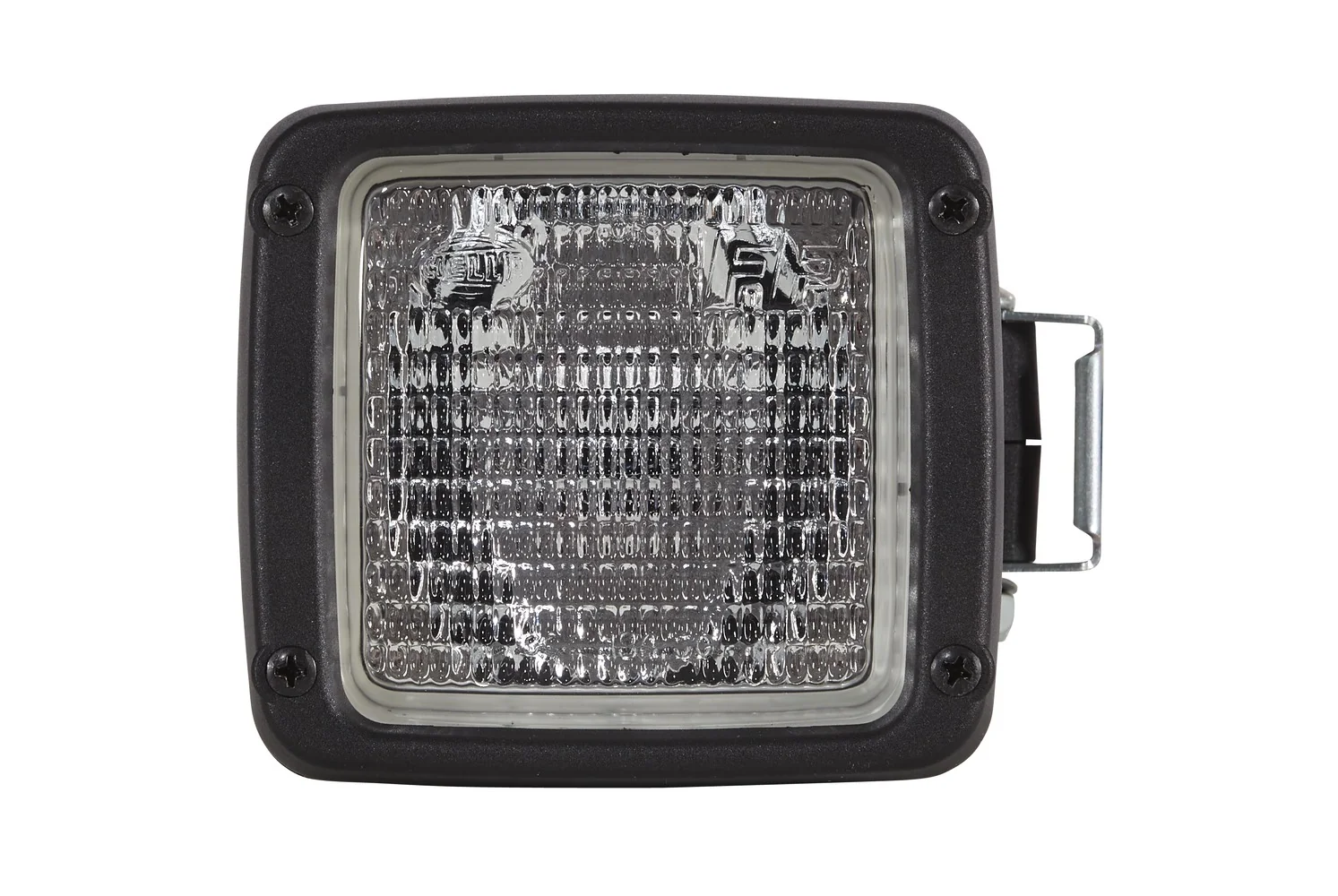

The Ultra Beam is a compact and robust halogen worklight. The aluminium reflector of the worklight is based on free-form technology, which makes it possible to illuminate the working area in a very targeted manner. Despite its compact dimensions, the reflector provides excellent light output. The black lamp housing of this robust worklight is made of glass-fibre reinforced plastic, which is acid-resistant and corrosion-resistant. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Aebi

97702624

Bucher

46/399

Goldhofer

123781

Jcb

700/50077700/50078

John deere

LVA 11 806

Kögel

70026634

Kramer

100 002 71 35

Kubota

0069724148

Rosenbauer

065741FE1981

Sany

B241100000141
Plug
AMP
Depth
167 Mm
Width
112 Mm
Height
124 Mm
Voltage
12 V / 24 V
Lamp Type
H3
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly By Qualified Personnel Required
Mounting Type
Mounting / Bolted
Fastening Type
For Horizontal Fastening
Housing Colour
Black
Power Consumption
55 W / 70 W
Light Distribution
Ground Illumination
Diffusing Lens Type
Patterned Diffusing Lens
Supplementary Article
Without Bulbs
Diffusing Lens Material
Polyamid 12
Protection Type (IP Code)
IP5K4K
Manufacturer
HELLA
