Home
Electrical, Lighting & Batteries
Lighting
Work Lights

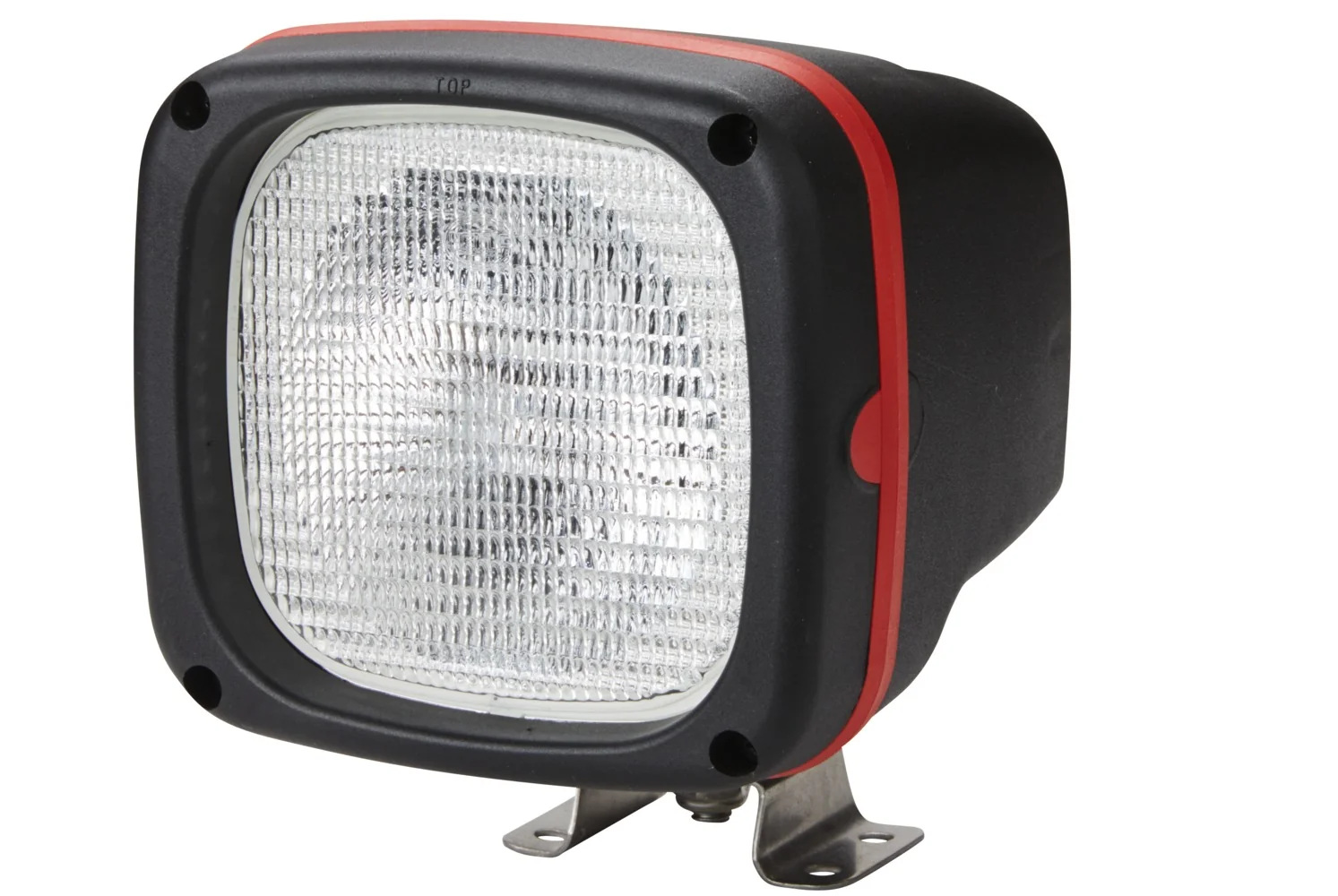

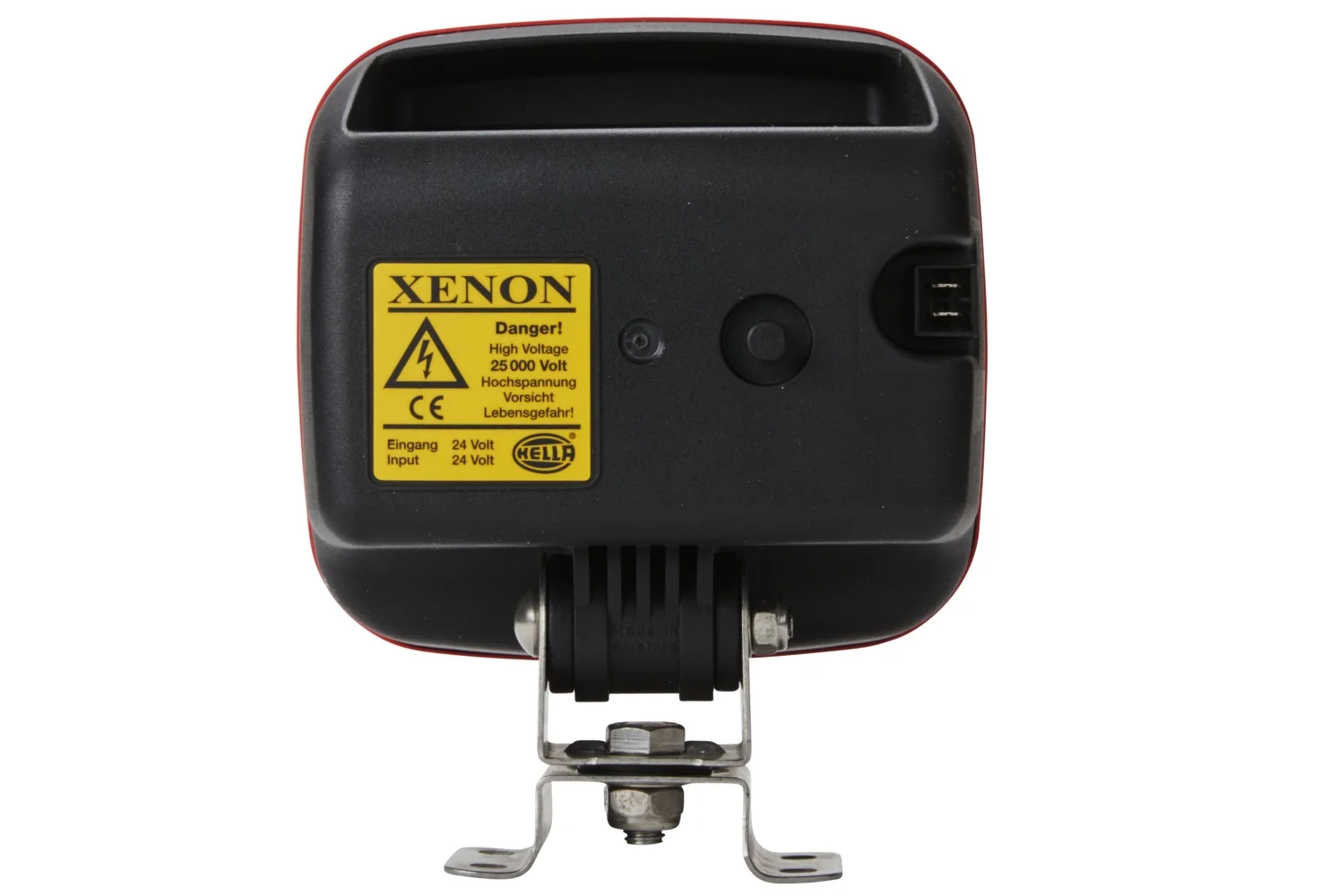

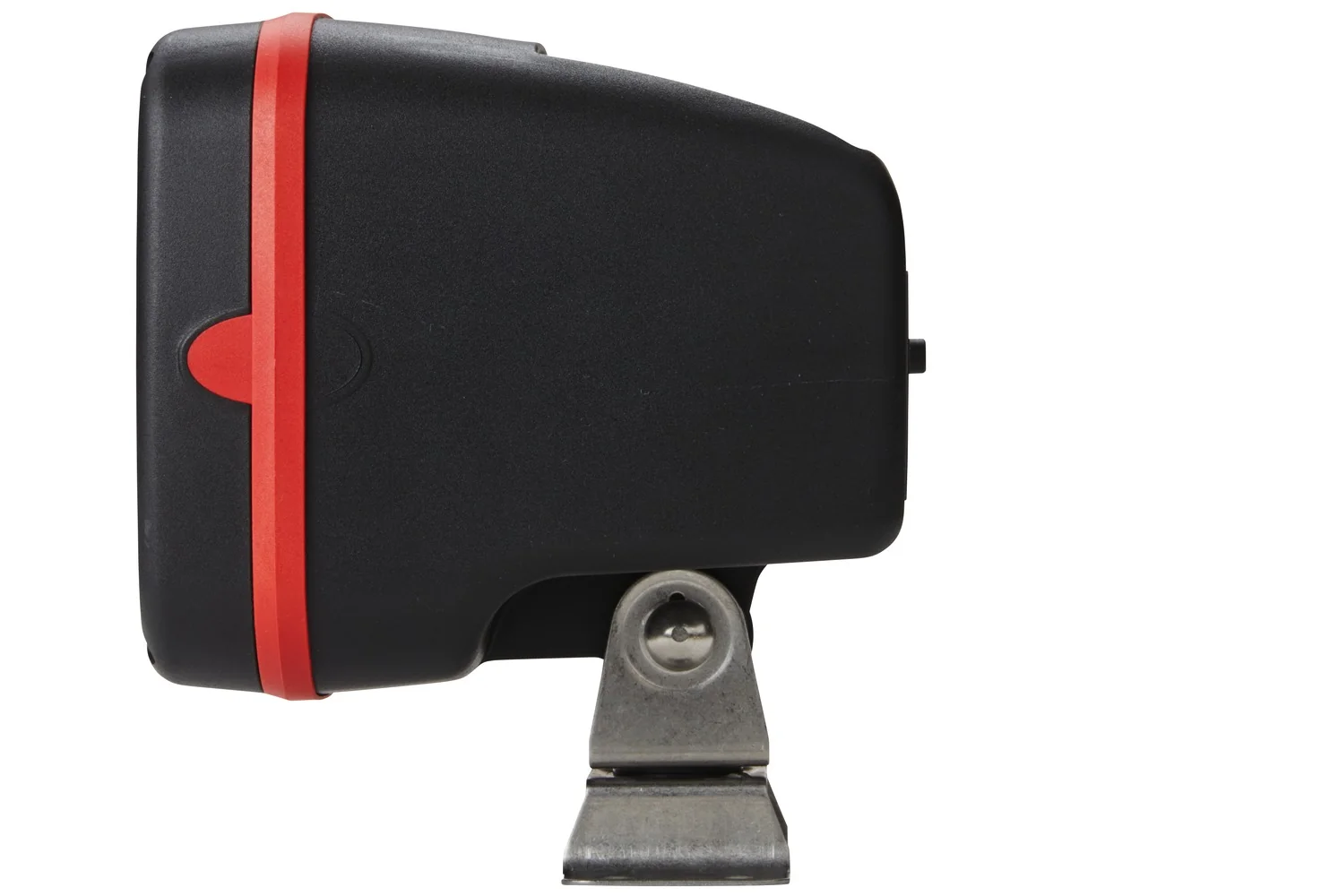

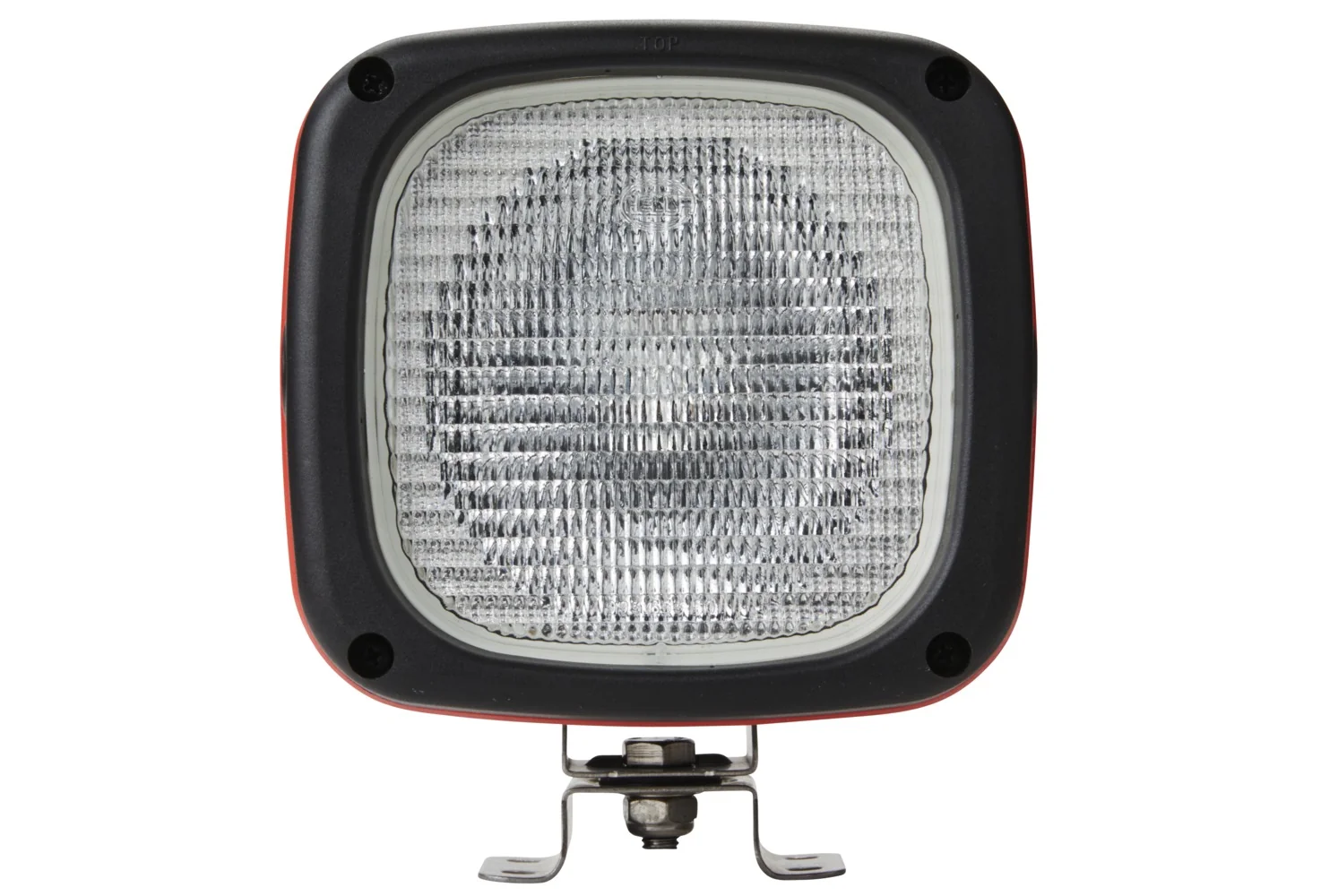

HELLA - 1GA 996 142-311 - Xenon-Worklight, AS 200, 24V
HELLA - 1GA 996 142-311 - Xenon-Worklight, AS 200, 24V
HELLA - 1GA 996 142-311 - Xenon-Worklight, AS 200, 24V
HELLA - 1GA 996 142-311 - Xenon-Worklight, AS 200, 24V
HELLA - 1GA 996 142-311 - Xenon-Worklight, AS 200, 24V
HELLA - 1GA 996 142-311 - Xenon-Worklight, AS 200, 24V

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping

Pay Securely with

HELLA - 1GA 996 142-311 - Xenon-Worklight, AS 200, 24V

HELLA - 1GA 996 142-311 - Xenon-Worklight, AS 200, 24V

€372.55

(Excl. VAT)

Price

(Excl. VAT)

€372.55

Product Description

The latest xenon technology from Hella Lighting technology: This worklight is equipped with a 35 W DS2 xenon bulb. Thanks to xenon technology, this worklight produces 2.5 times more light in comparison with a 55 W halogen bulb, and on average, also lasts 5 times longer. The light colour of this xenon bulb is close to that of daylight, which means objects can be perceived in their natural colours in the dark. Another advantage of the xenon bulb is its constant brightness, even with fluctuating vehicle electrical system voltages between 8-18V (in the case of 12V versions) and between 18-32V (in the case of 24V versions). Design: The housing of this worklight is made of glass-fibre-reinforced plastic which is resistant to acid and corrosion. Thanks to the xenon electronics being integrated into the compact housing, the light can be mounted very easily, without an additional external ballast. To protect the lens, the housing has a raised edge at the front. A handle is integrated into the top of the housing, making it easier to adjust the light for optimum illumination of the working area. The bracket allows stable four-point fastening. In addition, the AS 200 Xenon is suitable for upright mounting. The AS 200 worklight is also available as a 230V version (-241, -251). Tip: In order to be able to guarantee the maximum illumination time of the xenon bulb, the worklights should be used in a horizontal position with no more than ± 30° inclination.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Aebi

1069358-2

Atlas copco

53506612338303015

Hitachi

E12646830E12646831

Iveco

503824594

Jcb

70050178

Liebherr

1 002 051 42 100 8015 998 6005 998 610

Terex

535066122753506612338303015

Yanmar

5350661233
Plug
Deutsch Plug
Depth
163 Mm
Width
160 Mm
Height
191 Mm
Voltage
24 V
Lamp Type
D1S
Housing Type
Synthetic Material Housing
Light Design
Xenon
Assembly Note
Assembly By Qualified Personnel Required
Mounting Type
Screw Connection / Mounting
Fastening Type
Four-Point Attachment
Housing Colour
Black
Power Consumption
42 W
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Supplementary Info
With Control Unit For Xenon
Diffusing Lens Type
Patterned Diffusing Lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type IP Code
IP6K9K
Manufacturer
HELLA
