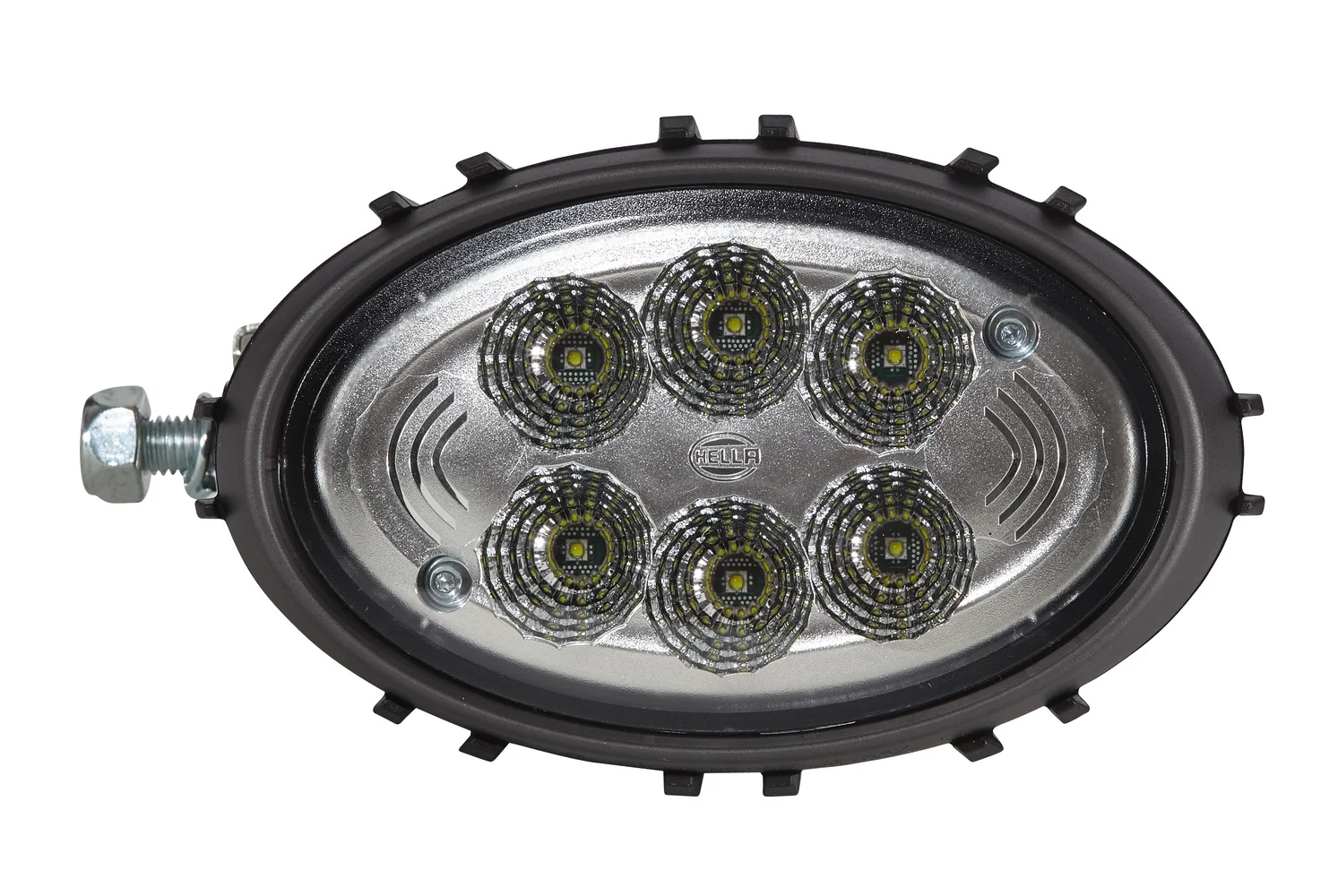

HELLA - 1GA 996 761-191 - LED-Worklight, Oval 100 Compact, 12/24V
HELLA - 1GA 996 761-191 - LED-Worklight, Oval 100 Compact, 12/24V
HELLA - 1GA 996 761-191 - LED-Worklight, Oval 100 Compact, 12/24V
HELLA - 1GA 996 761-191 - LED-Worklight, Oval 100 Compact, 12/24V
HELLA - 1GA 996 761-191 - LED-Worklight, Oval 100 Compact, 12/24V
HELLA - 1GA 996 761-191 - LED-Worklight, Oval 100 Compact, 12/24V

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

HELLA - 1GA 996 761-191 - LED-Worklight, Oval 100 Compact, 12/24V

HELLA - 1GA 996 761-191 - LED-Worklight, Oval 100 Compact, 12/24V

€97.17

(Excl. VAT)

Price

(Excl. VAT)

€97.17

Product Description

The Oval 100 LED compact is the latest version of the already extensive Oval 100 worklight series. This headlamp comes with the innovative plastic housing, which offers complete corrosion resistance as well as many new mounting options. The heat-conducting plastic housing has cooling fins on the back to provide the necessary heat dissipation for the 6 high-performance LEDs. Thanks to its light output of 1,850 lumens, the Oval 100 LED compact is ideal for replacing old halogen worklights (H3, H9) - with a power consumption of only 26 watts. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. With 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and therefore prevent rapid eye fatigue. The plastic housing is hermetically sealed and thus waterproof, submersible and resistant to high-pressure cleaning. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with fluctuating operating voltages of 10.5 to 32 volts. Temperature sensors protect the worklight from overheating ensuring the long service life of the LEDs and safe working at night.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Grimme

B94.09204

Kubota

3J03662441
Plug
DEUTSCH plug
Depth
109 mm
Width
169 mm
Height
107 mm
IP Code
IP6K7 / IP6K9K
Voltage
12 V / 24 V
Lamp Type
LED
ECE Standard
R10
Housing Type
Synthetic Material Housing
Light Design
LED
Luminous Flux
1850 lm
Mounting Type
Bolted / mounting
Fastening Type
Horizontal fastening
Housing Colour
Black
Number of LEDs
6
Power Consumption
26 W
Colour Temperature
6500 K
Light Distribution
Long-range illumination
Diffusing Lens Type
Clear diffusing lens
Assembly Requirement
Assembly by qualified personnel required
