HELLA - 1GB 996 486-011 - LED-Worklight, Oval 90 Gen. II, 12/24V
HELLA - 1GB 996 486-011 - LED-Worklight, Oval 90 Gen. II, 12/24V
HELLA - 1GB 996 486-011 - LED-Worklight, Oval 90 Gen. II, 12/24V
HELLA - 1GB 996 486-011 - LED-Worklight, Oval 90 Gen. II, 12/24V
HELLA - 1GB 996 486-011 - LED-Worklight, Oval 90 Gen. II, 12/24V
HELLA - 1GB 996 486-011 - LED-Worklight, Oval 90 Gen. II, 12/24V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 1GB 996 486-011 - LED-Worklight, Oval 90 Gen. II, 12/24V

HELLA - 1GB 996 486-011 - LED-Worklight, Oval 90 Gen. II, 12/24V

€172.57

(Excl. VAT)

Price

(Excl. VAT)

€172.57

Product Description

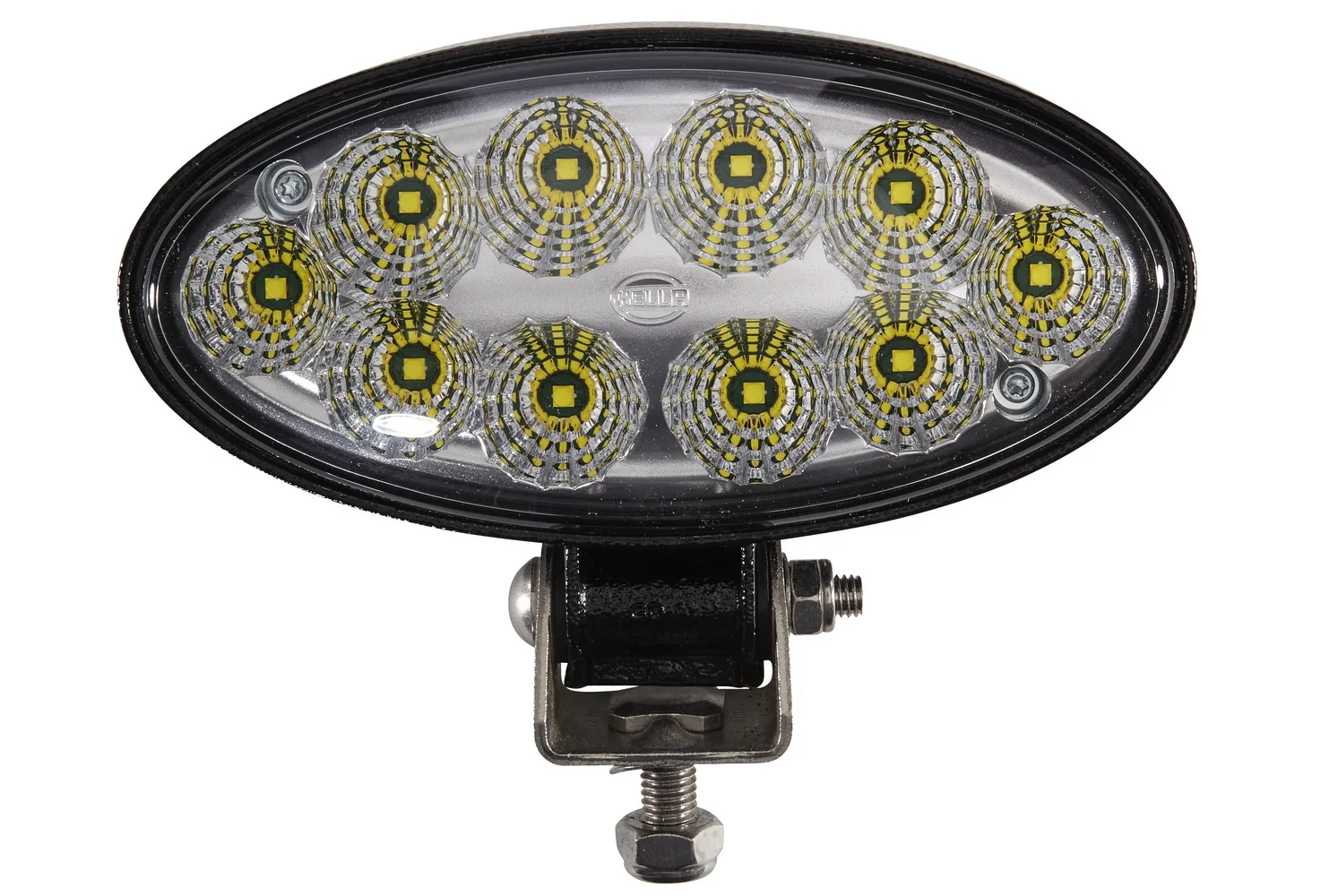

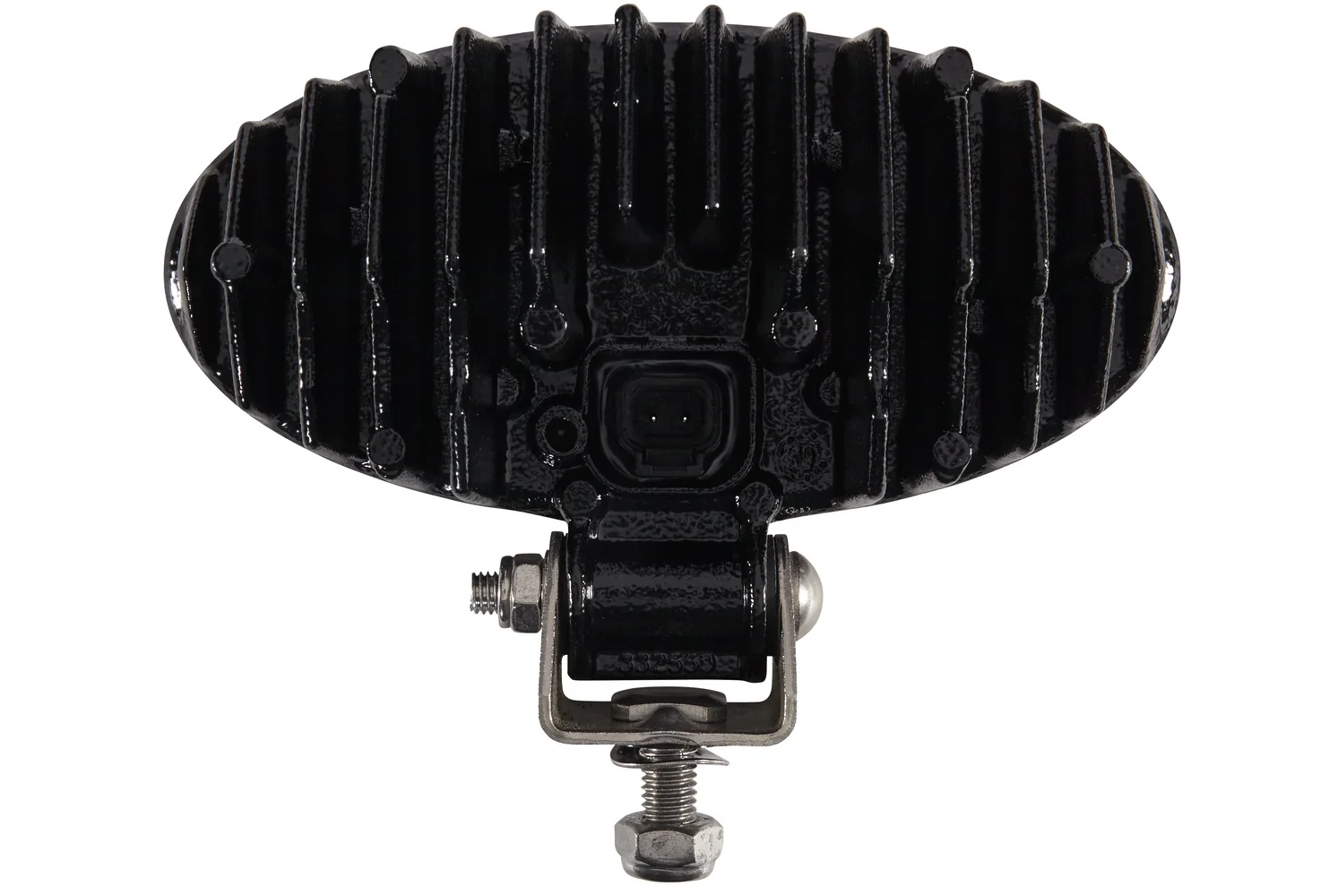

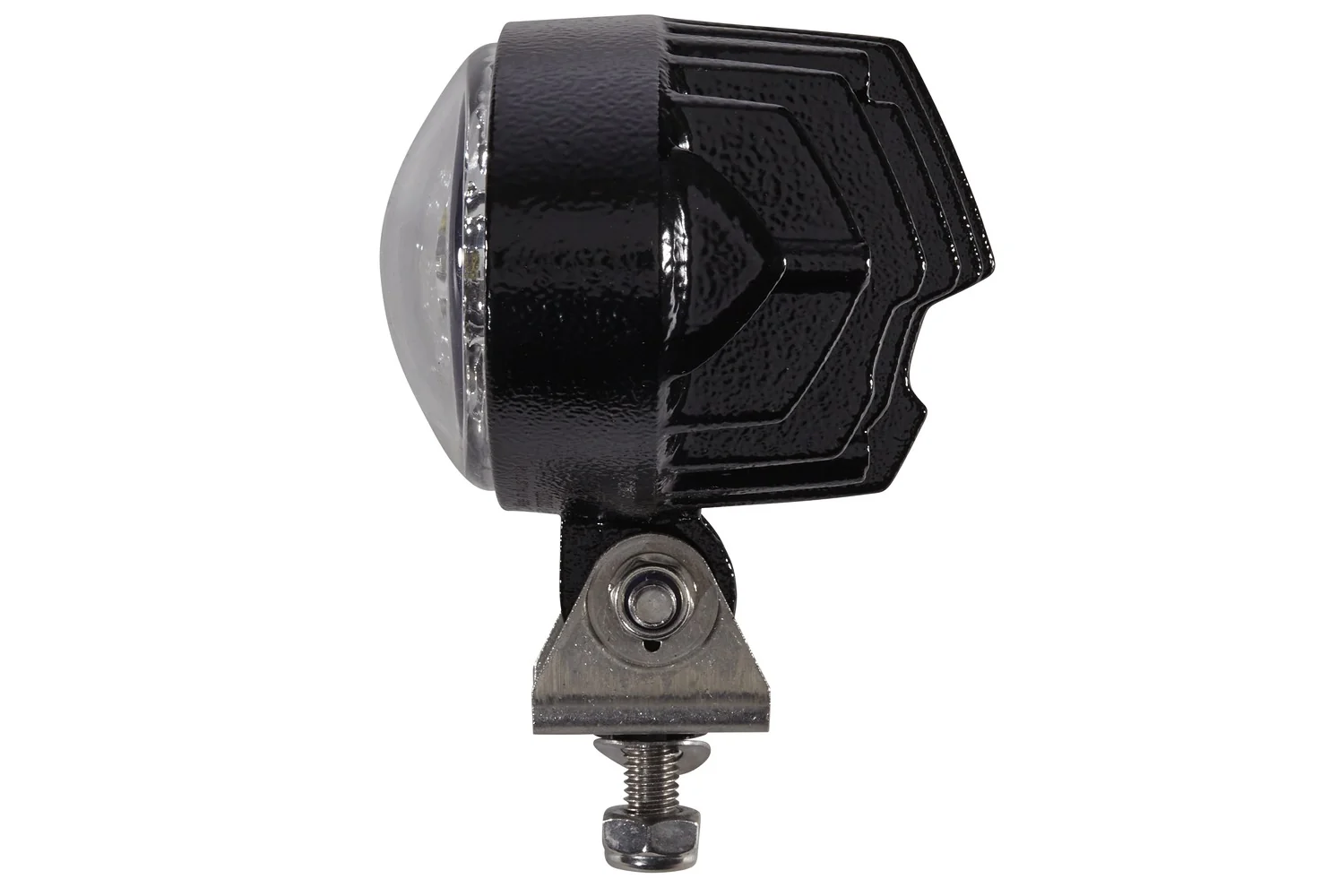

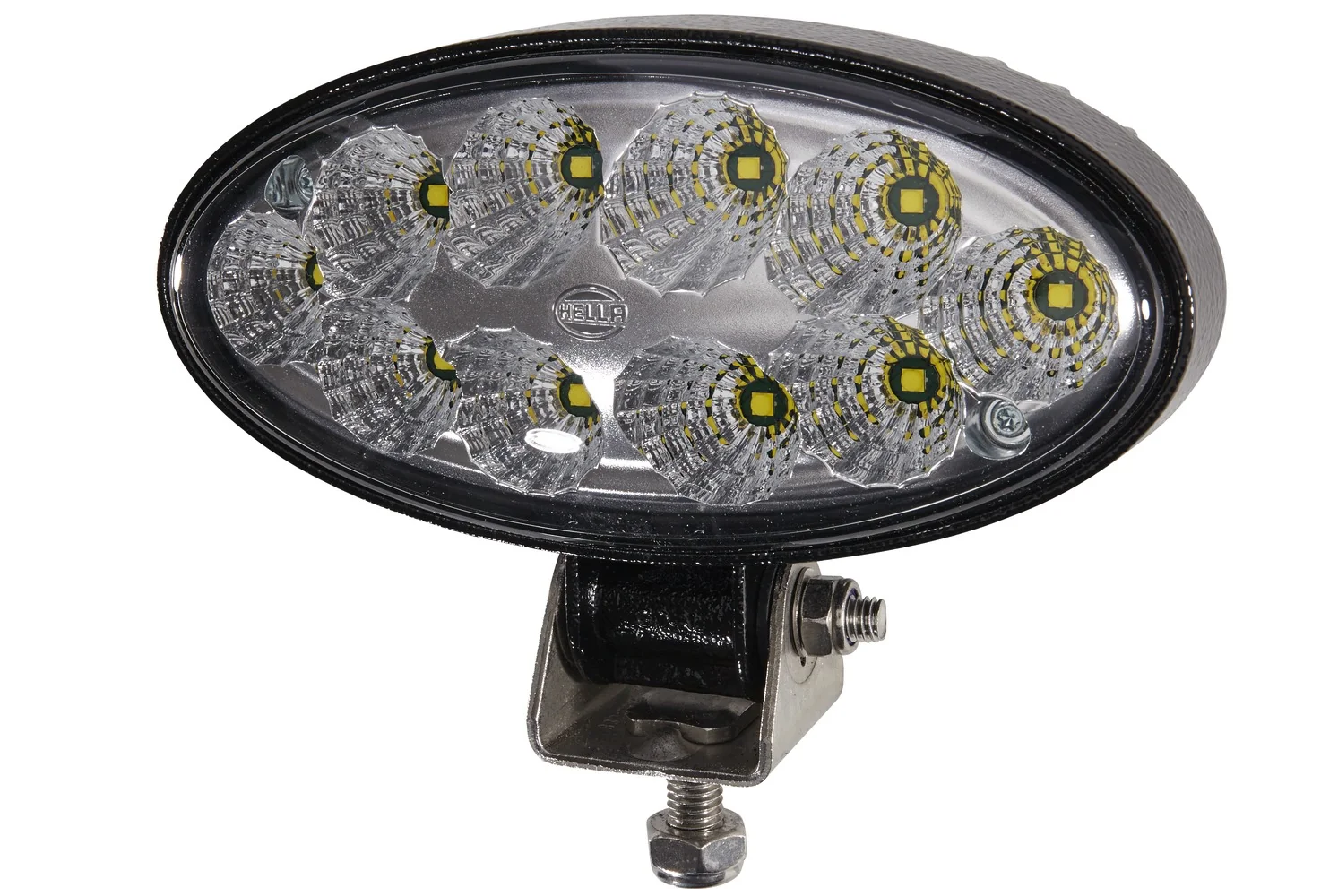

The Oval 90 LED Gen. 2 from HELLA is a compact worklight with a modern, attractive design. The Oval 90 worklight product range includes halogen, xenon and LED variants. The modular series is completed with the Oval 90 LED Gen. 2 whih has been expanded to include a powerful worklight with LED technology. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. The light output is a powerful 5,000 lumens. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 90 LED Gen. 2 can be mounted either upright (0°) or suspended (180°). The light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklights' black housing is made of aluminium and has cooling fins ensuring the necessary heat dissipation of the 10 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited. The integrated electronics are protected against reverse polarity and equipped with an LED fault bypass.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Plug
DEUTSCH plug
Depth
104 mm
Width
177 mm
Height
124 mm
Voltage
12 V / 24 V
Lamp Type
LED
Housing Type
Aluminium Housing
Light Design
LED
Luminous Flux
5000 lm
Mounting Type
Bolted / mounting
Fastening Type
Swivelling Mounting Bracket
Housing Colour
Black
Number of LEDs
10
Power Consumption
60 W
Colour Temperature
6500 K
Light Distribution
Long-range illumination
Diffusing Lens Type
Clear diffusing lens
Assembly Requirement
Assembly by qualified personnel required
Fulfils ECE Standard
R10
Protection Type (IP Code)
IP6K9K / IP6K7
Manufacturer
HELLA
