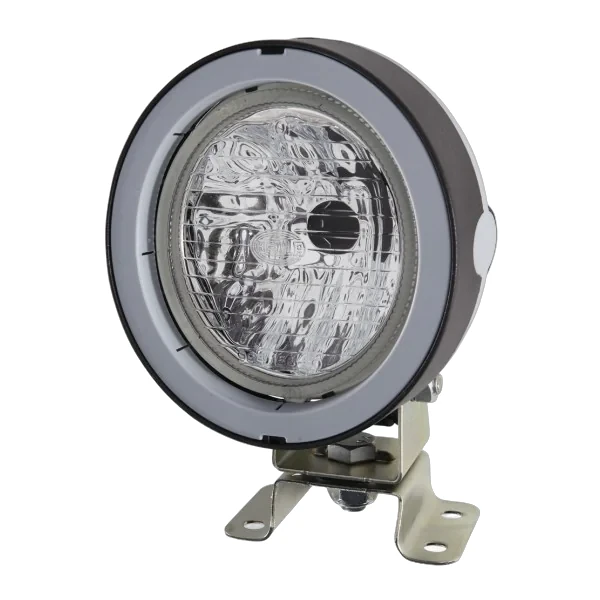

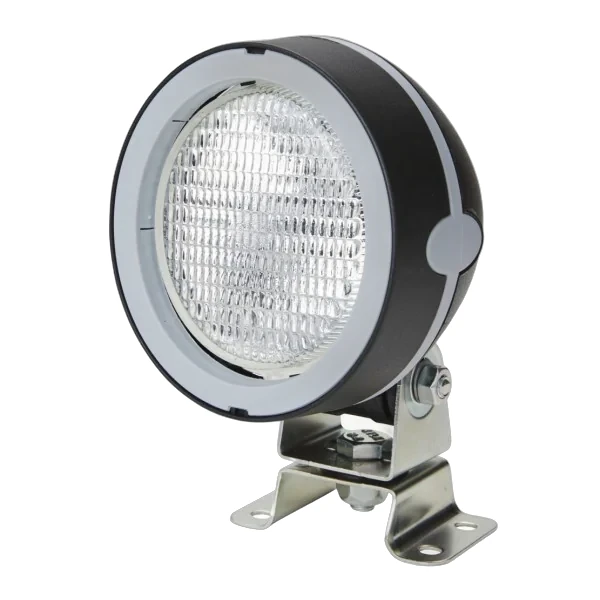

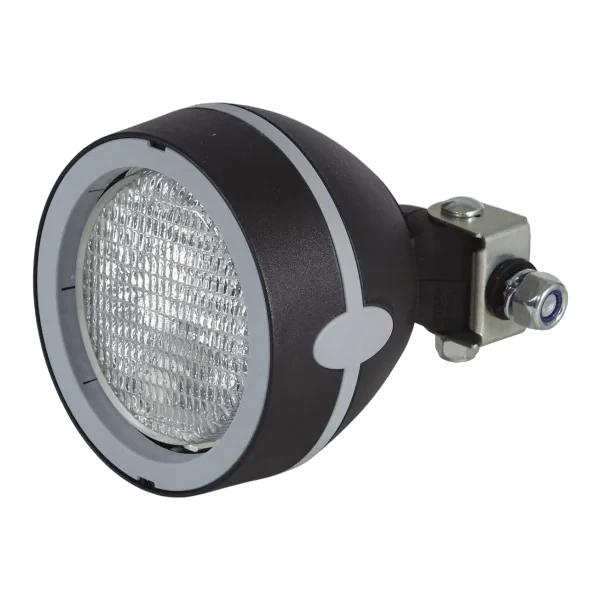

HELLA - 1GM 996 134-167 - Halogen-Worklight, Mega Beam, 12V
HELLA - 1GM 996 134-167 - Halogen-Worklight, Mega Beam, 12V

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping on orders over €60

Pay Securely with

HELLA - 1GM 996 134-167 - Halogen-Worklight, Mega Beam, 12V

HELLA - 1GM 996 134-167 - Halogen-Worklight, Mega Beam, 12V

€24.08

(Excl. VAT)

Price

(Excl. VAT)

€24.08

Product Description

The Mega Beam H3 is a halogen worklight whose aluminium reflector is based on free-form technology. Despite its compact dimensions, the reflector provides excellent light output. An H3 bulb is used as the light source (not included). The worklight can be used with both 12 V and 24 V on-board voltage. The black lamp housing of these robust worklights is made of glass-fibre reinforced plastic that is resistant to acid and corrosion. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally. The surface-mounted versions are suitable for standing and suspended mounting by turning the light insert. HeavyDuty versions with vibration damping use a patented damping system that protects the headlamp from vibrations and thus extends the service life of the bulb.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

72484145G210 902 113 010G210 902 113 012

Fendt

72484145G 210 902 113 012G 210.902.113.010

Massey ferguson

160731ENQ19526
Plug
Open cable ends
Depth
103 mm
Width
110 mm
Height
149 mm
Voltage
12 V
Lamp Type
H3
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly by qualified personnel required
Mounting Type
Mounting / Bolted
Fastening Type
Vertical / Swivelling Mounting Bracket
Housing Colour
Black
Power Consumption
55 W
Registration Type
ADR/GGVS
Light Distribution
Ground Illumination
Diffusing Lens Type
Patterned diffusing lens
Diffusing Lens Material
Polyamid 12
Protection Type (IP Code)
IP5K4K
Manufacturer
