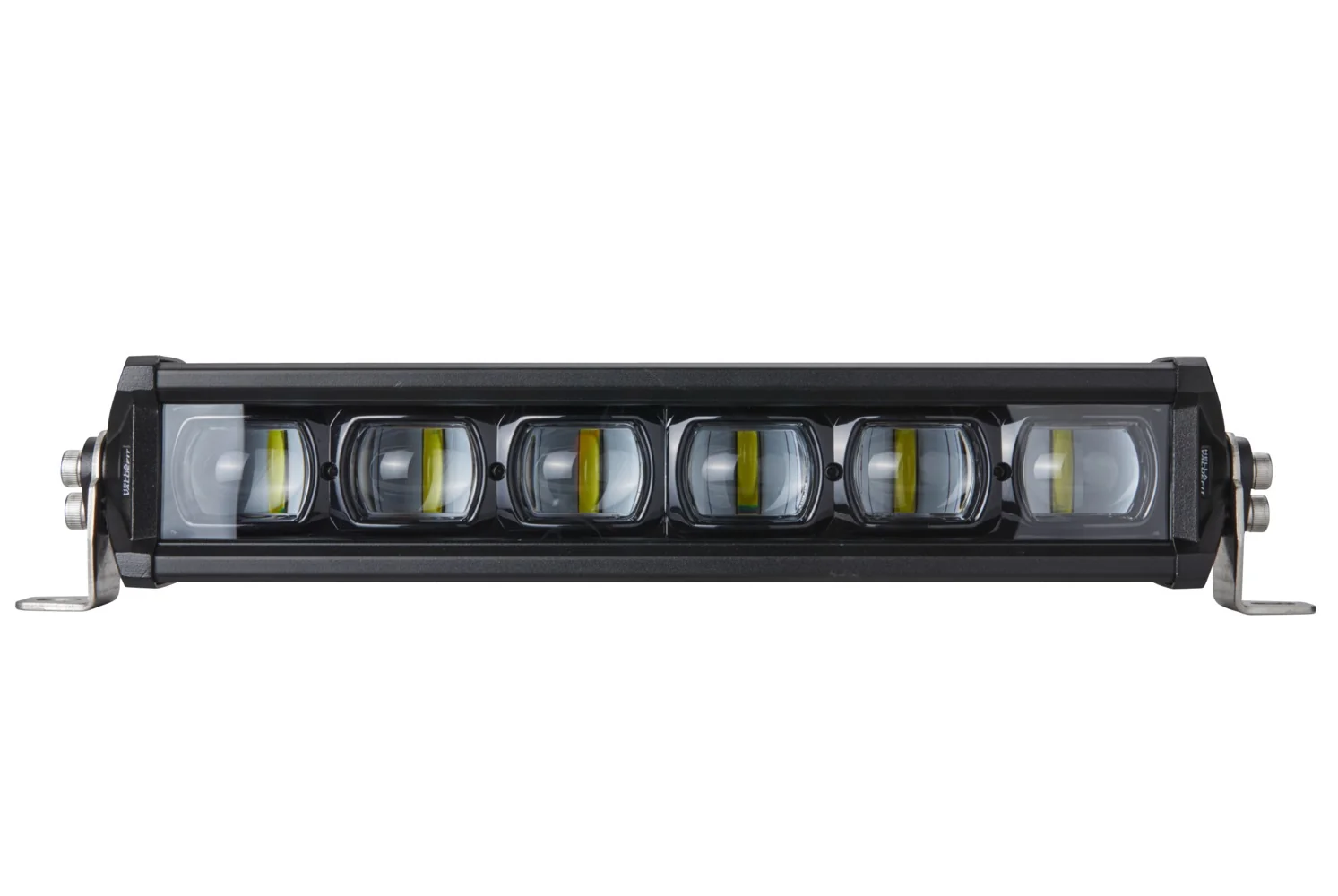

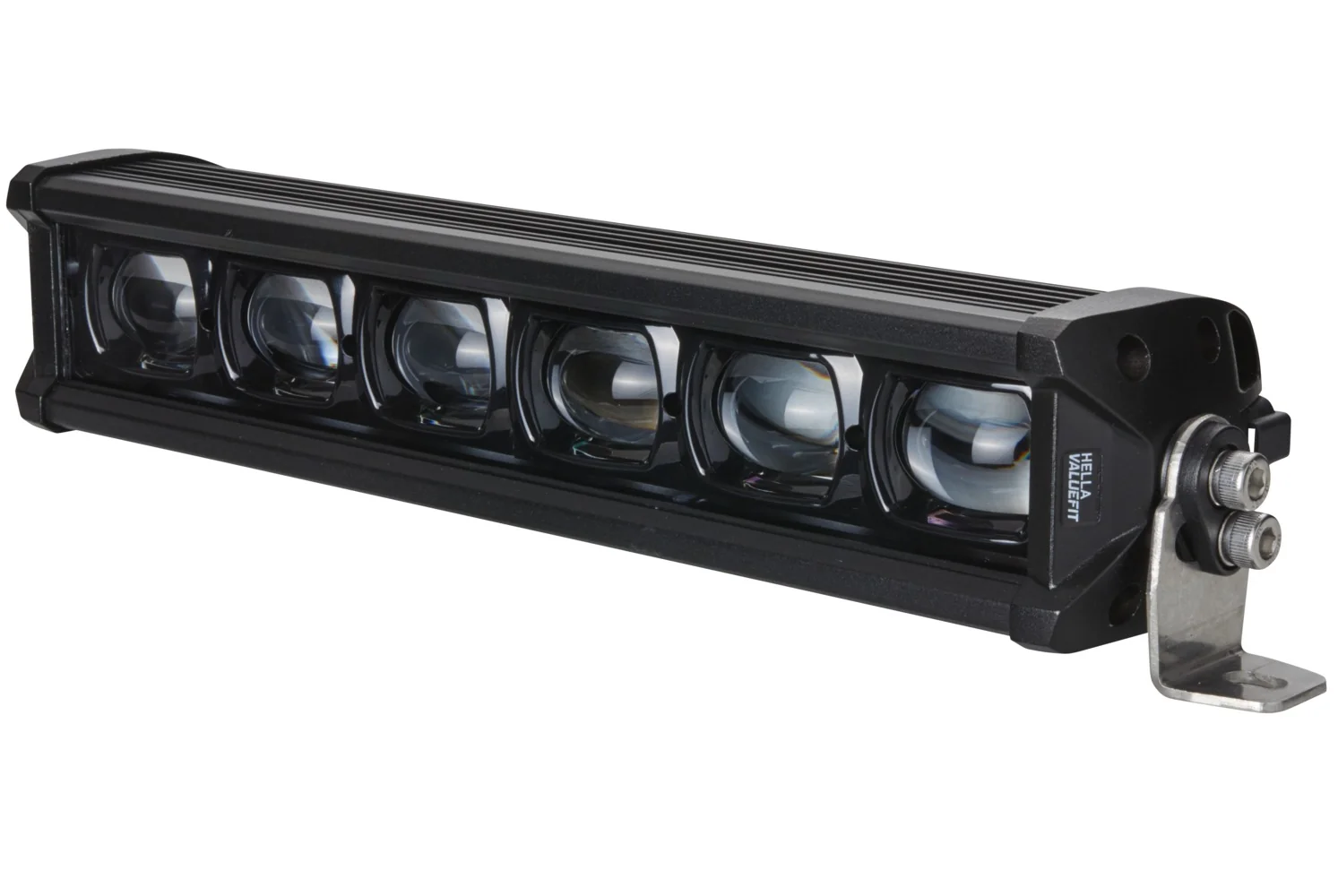

HELLA - 1GJ 360 001-002 - LED-Worklight Lightbar LBX-380, 24/12V
HELLA - 1GJ 360 001-002 - LED-Worklight Lightbar LBX-380, 24/12V
HELLA - 1GJ 360 001-002 - LED-Worklight Lightbar LBX-380, 24/12V
HELLA - 1GJ 360 001-002 - LED-Worklight Lightbar LBX-380, 24/12V
HELLA - 1GJ 360 001-002 - LED-Worklight Lightbar LBX-380, 24/12V
HELLA - 1GJ 360 001-002 - LED-Worklight Lightbar LBX-380, 24/12V

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping

Pay Securely with

HELLA - 1GJ 360 001-002 - LED-Worklight Lightbar LBX-380, 24/12V

HELLA - 1GJ 360 001-002 - LED-Worklight Lightbar LBX-380, 24/12V

€82.65

(Excl. VAT)

Price

(Excl. VAT)

€82.65

Product Description

The new light bar series includes four worklights in an elongated design in different lengths and light intensities. Cooling fins on the back of the aluminium housing ensure the necessary heat dissipation of the high-power LEDs. The innovative lens technology of the LBX Lightbars creates homogeneous illumination for both near-field and far-field illumination. The light intensity starts with the LBX 220 LED at 1,000 lumens and extends to the powerful LBX 720 LED with an effective light output of 5,500 lumens. For optimal illumination, a low mounting height of between 0.50 and 1.50 metres is recommended. This distributes the light over a large area and evenly into the workspace, significantly improving working conditions at night. The longer LBX 540 and LBX 720 versions offer the combination of wide-beam lenses for the near-field area and narrow-beam lenses in the centre for long-range illumination. The perfect combination for large-area illumination in front of the vehicle.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Plug
DEUTSCH Plug
Cable
2000 Mm
Depth
80 Mm
Width
374 Mm
Height
86 Mm
Voltage
12 V / 24 V
Lamp Type
LED
Housing Type
Aluminium Housing
Light Design
LED
Assembly Note
Assembly By Qualified Personnel Required
Luminous Flux
2000 Lm
Mounting Type
Bolted / Mounting
Fastening Type
Suspended / Vertical
Housing Colour
Black
Number of LEDs
6
Power Consumption
44 W
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned Diffusing Lens
Fulfils ECE Standard
R10
Diffusing Lens Material
Glass
Protection Type IP Code
IP6K7 / IP6K9K
Manufacturer
HELLA
