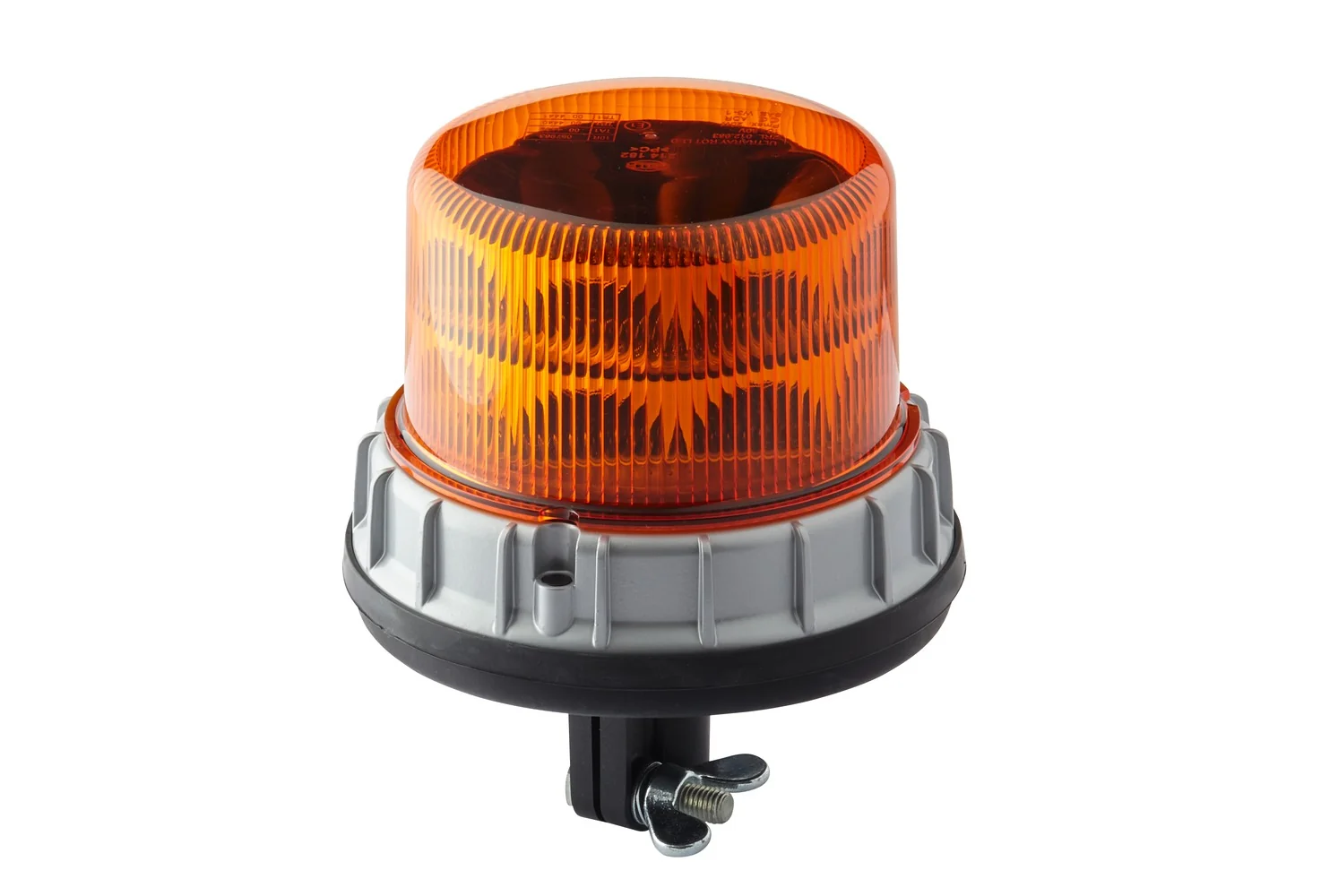

HELLA - 2RL 012 983-401 - LED-Rotating Beacon, K-LED 1.2, 12/24V, yellow (amber)
HELLA - 2RL 012 983-401 - LED-Rotating Beacon, K-LED 1.2, 12/24V, yellow (amber)
HELLA - 2RL 012 983-401 - LED-Rotating Beacon, K-LED 1.2, 12/24V, yellow (amber)
HELLA - 2RL 012 983-401 - LED-Rotating Beacon, K-LED 1.2, 12/24V, yellow (amber)
HELLA - 2RL 012 983-401 - LED-Rotating Beacon, K-LED 1.2, 12/24V, yellow (amber)
HELLA - 2RL 012 983-401 - LED-Rotating Beacon, K-LED 1.2, 12/24V, yellow (amber)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

HELLA - 2RL 012 983-401 - LED-Rotating Beacon, K-LED 1.2, 12/24V, yellow (amber)

HELLA - 2RL 012 983-401 - LED-Rotating Beacon, K-LED 1.2, 12/24V, yellow (amber)

€223.46

(Excl. VAT)

Price

(Excl. VAT)

€223.46

Product Description

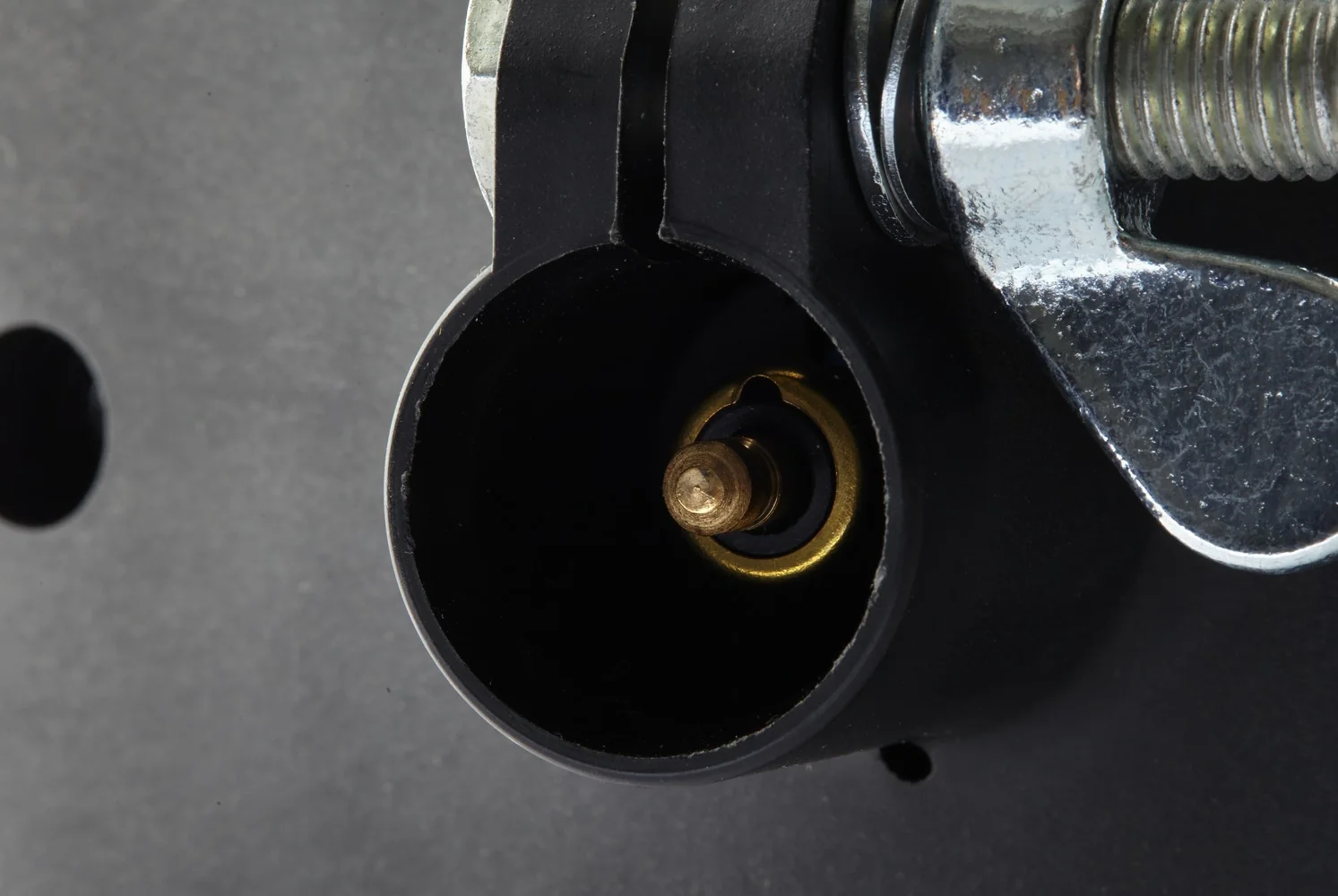

The K-LED 1.2 beacon has a larger light emission surface due to its double light system achieving a large warning effect. The signal is generated by means of an electronic concept and therefore without moving parts. The beacon can be connected at an operating voltage of 10 - 30 V. It has an impact-resistant polycarbonate light bonnet and the height is approx. 115.5 mm (F) to 196.5 mm (R), depending on the design, due to the double light system. The housing of the K-LED 1.2 is passivated and then coated with powder coating, which provides a high level of protection against aggressive media such as salts and alkalis. The beacon meets IP6K7 and IP6K9K requirements and is therefore dust-tight and suitable for high-pressure cleaning. Even short-term immersion up to 1 metre under water is possible. The product is fixed to the vehicle by means of screws or by means of a pipe socket adapter. A magnet version is also available on request. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Faun

5645508
Height
167 mm
Weight
1100 g
Voltage
24 V / 12 V
Quantity
1
Lamp Type
LED
LED Colour
White
Lens Colour
Yellow (amber)
Light Colour
Yellow (amber)
Light Design
LED
Mounting Type
Flexible pipe sockets
Housing Colour
Silver
Light Function
With rotating warning signal
Number of LEDs
8
Housing Material
Aluminium
Outer Diameter 1
169 mm
Power Consumption
20 W
Registration Type
ADR/GGVS / SAE
Rotating Beacon RPM
123 1/min
Assembly Requirement
Assembly by qualified personnel required
Fulfils ECE Standard
R65 / R10
Temperature Range To
+60 °C
Permissible Max Speed
120 km/h
Temperature Range From
-40 °C
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP6K9K / IP6K7
Reverse Polarity Protection
Yes
Supplementary Article/Supplementary Info 2
Electromagnetic Compatibility (EMC)
Manufacturer
HELLA
