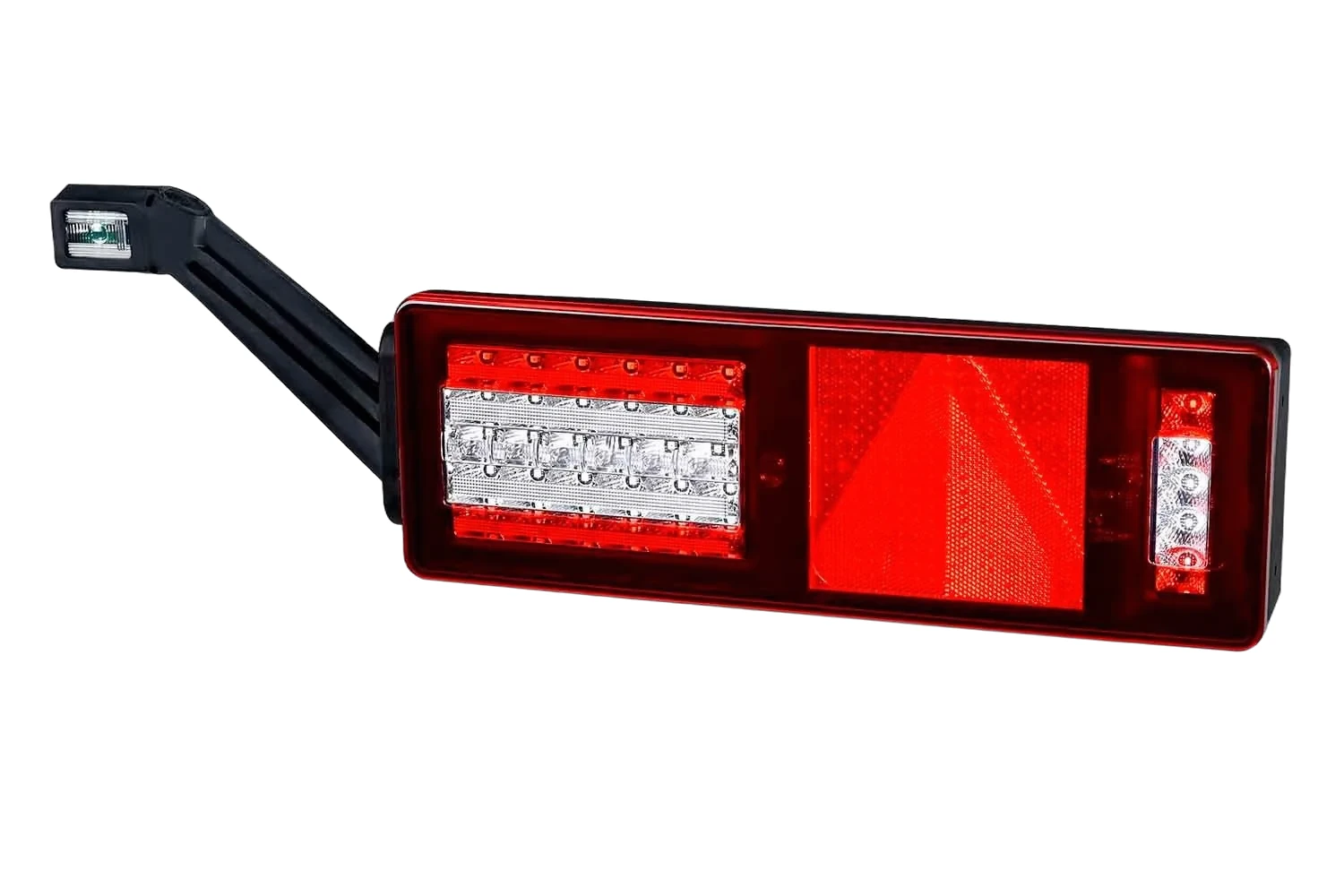

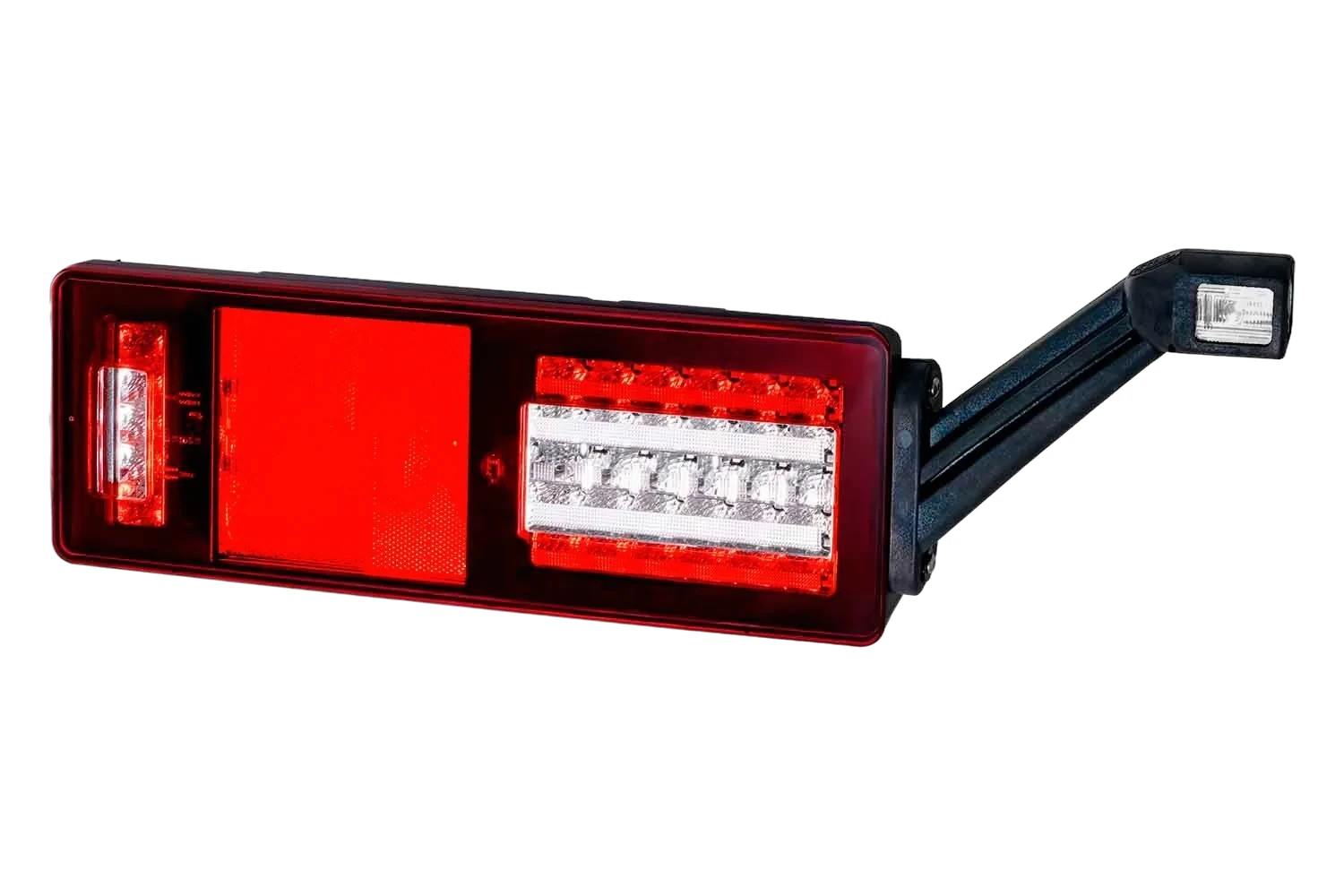

HELLA - 2VP 340 970-041 - Rearlight, LED, 24V – Right

OEM Supplier

SKU: hella-2vp-340-970-041

HELLA - 2VP 340 970-041 - Rearlight, LED, 24V – Right

€175.79

(excl. VAT)

In stock - ready to ship

Ships within 55 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€175.79

The full-LED combination rearlight for 24 V trucks and trailers impresses at first glance with its innovative design. Particularly striking is the patented LED light curtain with an area of 144 cm² for the tail light and the rear reflector behind it, as well as the dynamic flashing light. Due to the large light area, optimum visibility of the vehicle is ensured. This ensures a high level of safety. The combination rearlight is also extremely robust. The lens is bonded to the housing, the two-colour outer lens made of polycarbonate (PC) is impact-resistant. With a size of 410 x 140 mm and an installation depth of only 55.5 mm, it is also extremely compact. The electronics also meet the highest requirements. The high-power LEDs have a long service life and low power consumption. There are also versions of the light where the control for flashing side marker lights and the load simulation for brake and indicator lights are integrated into the system. This ensures a high level of compatibility. Another plus point of the combination rearlight is its future viability. It has a mechanical interface for sensors so that, for example, ultrasonic sensors can be connected on both sides.
Hella
Hella GmbH & Co. KGaA, commonly known as Hella, was founded in 1899 by Sally Windmüller in Lippstadt, Germany. Initially, the company produced lamps and horns for carriages, bicycles, and automobiles. Over its long history, Hella has evolved into a global, family-owned company, specializing in lighting and electronics for the automotive industry, with its headquarters still located in Lippstadt. Hella is renowned for its innovative lighting technologies, including LED, halogen, and xenon systems, as well as advanced electronic components. The brand's product range extends to sensors, actuators, and control units for various vehicle applications. In the agricultural sector, Hella provides robust and efficient lighting solutions, such as the Shapeline and Module series, designed to withstand harsh operating conditions and improve visibility for tractors and other machinery. At Partao, you can find a comprehensive selection of Hella spare parts, including Work Lights, Other Lighting, Air Filters, Alternators, and Apparel. These components are crucial for maintaining the functionality and safety of agricultural vehicles. Over 66,957 genuine Hella spare parts are available at Partao. Agricultural operators worldwide rely on Hella products for their durability, performance, and compliance with international standards. The brand's commitment to quality ensures that its lighting and electronic systems provide reliable operation, enhancing productivity and safety for machinery used in demanding farming environments across various regions.

Brand
Shape
Rectangular
Width
86 mm
Height
180 mm
Length
586 mm
Weight
1900 g
Voltage
24 V
Quantity
1
Lamp Type
LED
Thread Size
M8 x 30
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Mounting Type
Mounting
Quantity Unit
Piece
Connector Type
Central 7 poles-DIN / AMP-superseal
Fastening Type
For horizontal fastening
Housing Colour
Black
Light Function
With indicator (LED) / with rear fog light (LED) / with reflector (triangular) / without dynamic indicator light / with marker lamp (LED) / with taillight (LED) / with reverse light (LED) / with stop light (LED)
Number Of Pins
7 -pin connector / 2 -pin connector
Light Functions
7
Fitting Position
Right
Housing Material
PC (Polycarbonate) / ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
Registration Type
ECE / ADR/GGVS
Number Of Connectors
5
Temperature Range To
+60 °C
Paired Article Number
2VP 340 970-031
Temperature Range From
-40 °C
Protection Type (IP Code)
IP6K9K
Supplementary Article/Supplementary Info 2
Without ballast / for trailer / Electromagnetic Compatibility (EMC) / with plug / with direction indicator failure control
EAN
4082300805581
Manufacturer
HELLA
