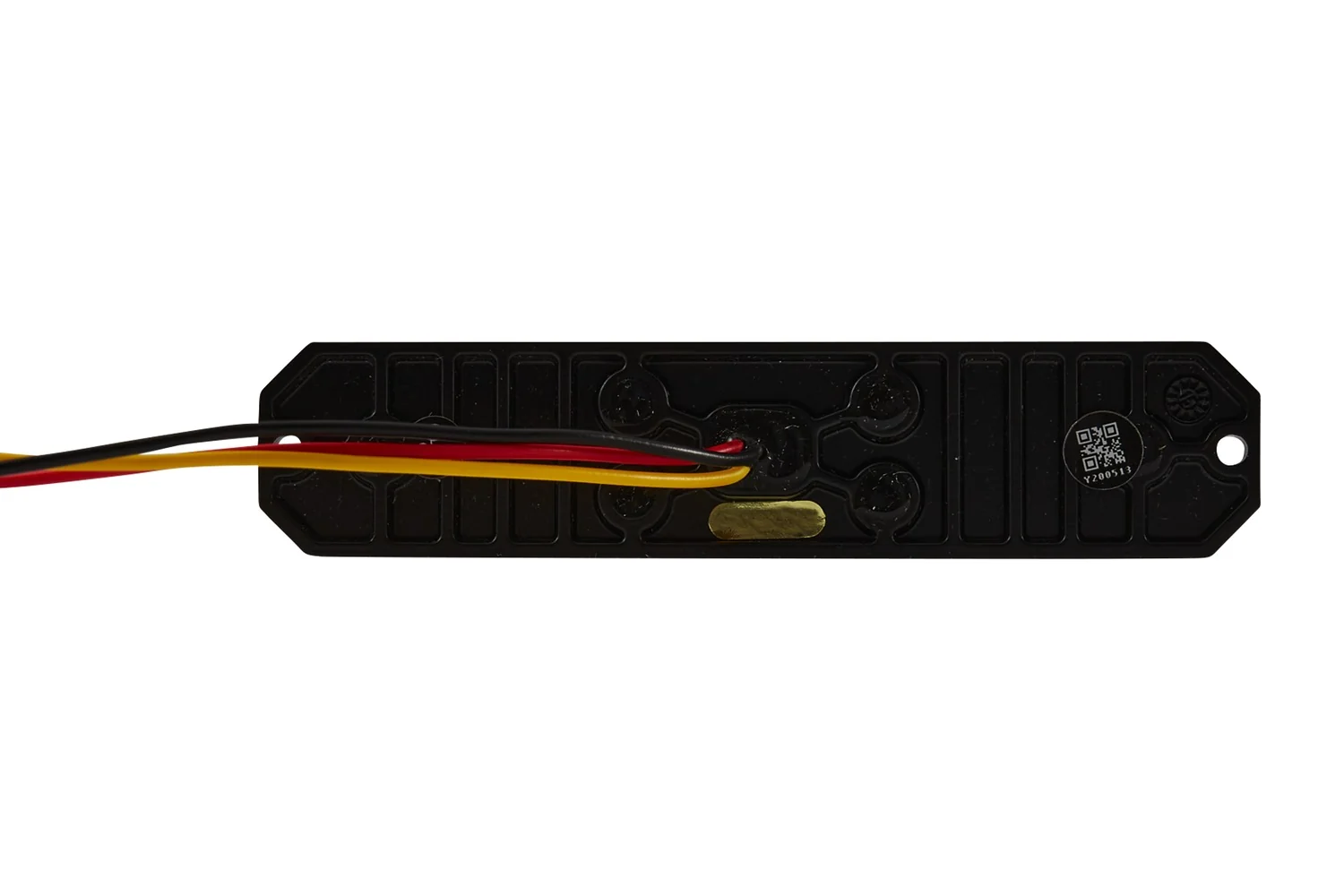

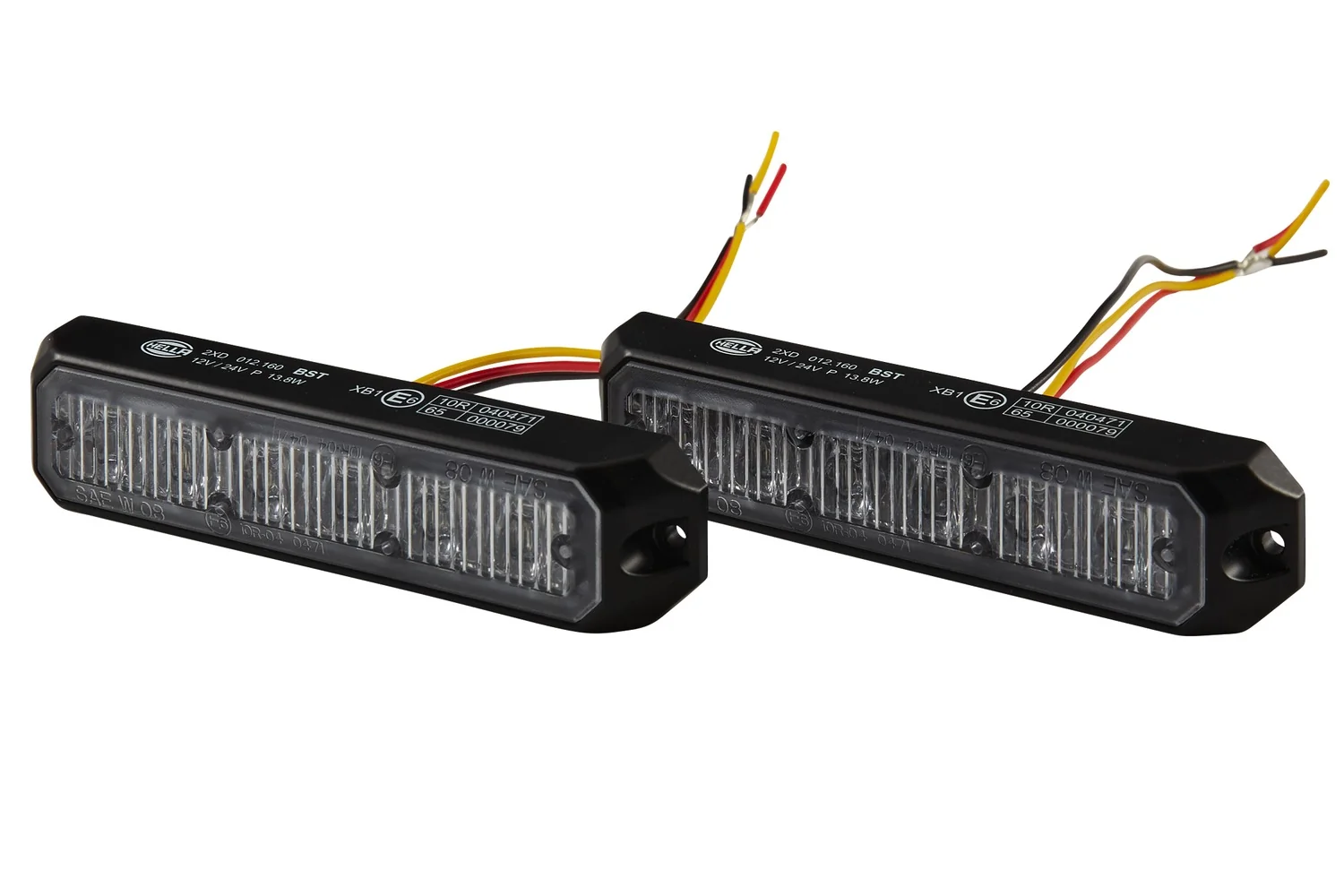

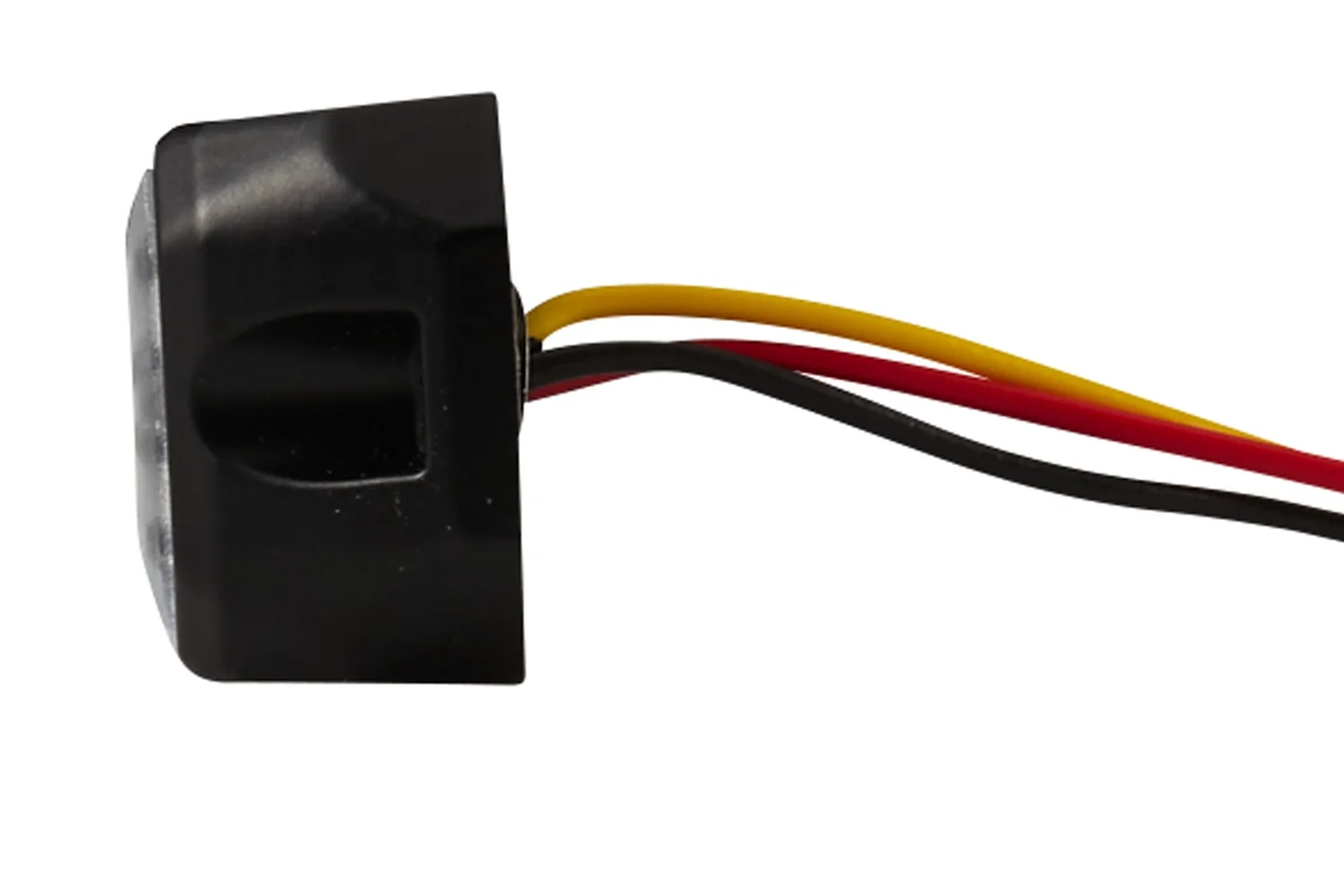

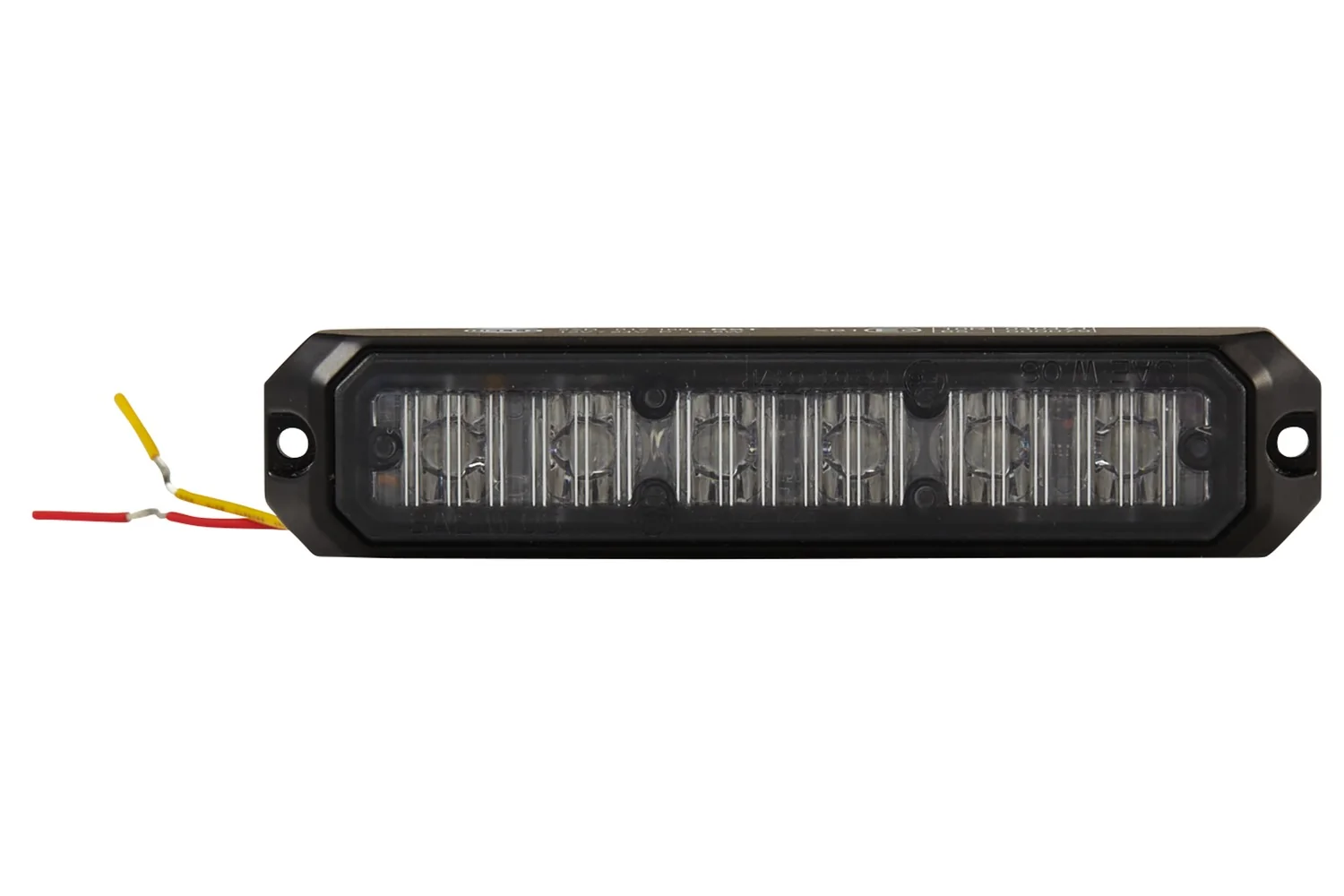

HELLA - 2XD 012 160-801 - LED-Strobe-type Beacon, BST, 12/24V, Blue

OEM Supplier

SKU: hella-2xd-012-160-801

HELLA - 2XD 012 160-801 - LED-Strobe-type Beacon, BST, 12/24V, Blue

€151.81

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€151.81

The BST warning light is available in different signal colours, dimensions and mounting variants. 3 or 6 power LEDs in the colours yellow, blue, red or white ensure an optimal signalling effect. The light can be synchronised with two or more units and has different flash sequences. In addition to the continuous light function, four different flash patterns can be set and are approved according to the European directive for beacons ECE-R65. The warning signal (single to quadruple flash) is either synchronous or alternating. Variants with "1 level" produce a constant level of brightness independent of the ambient light. Variants with "day/night mode", adjust the brightness to the ambient light. This ensures increased visibility during the day and the avoidance of glare at night. The housing is attached to the vehicle by means of screws for fixed mounting and by means of a bracket for bracket mounting. The warning system is also available as a slim version with a mounting height of only 12.8 mm. It is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots. The product can be mounted horizontally or vertically in various positions around the vehicle, depending on the variant.
Hella
Hella GmbH & Co. KGaA, commonly known as Hella, was founded in 1899 by Sally Windmüller in Lippstadt, Germany. Initially, the company produced lamps and horns for carriages, bicycles, and automobiles. Over its long history, Hella has evolved into a global, family-owned company, specializing in lighting and electronics for the automotive industry, with its headquarters still located in Lippstadt. Hella is renowned for its innovative lighting technologies, including LED, halogen, and xenon systems, as well as advanced electronic components. The brand's product range extends to sensors, actuators, and control units for various vehicle applications. In the agricultural sector, Hella provides robust and efficient lighting solutions, such as the Shapeline and Module series, designed to withstand harsh operating conditions and improve visibility for tractors and other machinery. At Partao, you can find a comprehensive selection of Hella spare parts, including Work Lights, Other Lighting, Air Filters, Alternators, and Apparel. These components are crucial for maintaining the functionality and safety of agricultural vehicles. Over 66,957 genuine Hella spare parts are available at Partao. Agricultural operators worldwide rely on Hella products for their durability, performance, and compliance with international standards. The brand's commitment to quality ensures that its lighting and electronic systems provide reliable operation, enhancing productivity and safety for machinery used in demanding farming environments across various regions.

Brand
OEM Part Numbers
Plug
Open cable ends
Cable
150 mm
Height
28 mm
Weight
192 g
Voltage
24 V / 12 V
Quantity
2
Lamp Type
LED
LED Colour
Blue
Lens Colour
Crystal clear
Housing Type
Aluminium Housing
Light Colour
Blue
Light Design
LED
Assembly Note
Assembly by qualified personnel required!
Mounting Type
Screw Connection / mounting
Quantity Unit
Kit
Fastening Type
For horizontal fastening
Housing Colour
Black
Light Function
With flashing warning signal
Number of LEDs
6
Power Consumption
14 W
Registration Type
SAE
Fulfils ECE Standard
R10 / R65
Temperature Range To
+60 °C
Temperature Range From
-40 °C
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP5K4K / IPX9K / IP6K9K
Supplementary Article/Supplementary Info
Follow nat. rules for attachment, install. and operation.
Supplementary Article/Supplementary Info 2
With pipe
EAN
4082300505184
Manufacturer
HELLA
