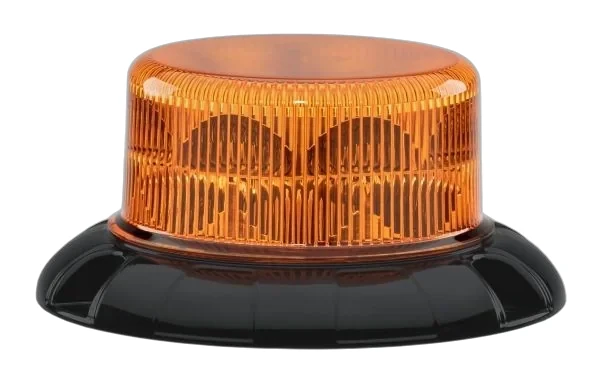

HELLA - 2XD 066 146-001 - LED-Strobe-type Beacon, K-LED Nano Nano, 12/24V, yellow (amber)
HELLA - 2XD 066 146-001 - LED-Strobe-type Beacon, K-LED Nano Nano, 12/24V, yellow (amber)

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping on orders over €60

Pay Securely with

HELLA - 2XD 066 146-001 - LED-Strobe-type Beacon, K-LED Nano Nano, 12/24V, yellow (amber)

HELLA - 2XD 066 146-001 - LED-Strobe-type Beacon, K-LED Nano Nano, 12/24V, yellow (amber)

€46.30

(Excl. VAT)

Price

(Excl. VAT)

€46.30

Product Description

Despite its compact dimensions, the K-LED Nano gives out an above-average light intensity. HELLA’s smallest homologated beacon to date generates a long-range, amber warning signal by means of flashing light. The standard version for fixed mounting is characterised by a slightly curved base which, with a bolt circle diameter of 130 mm, stays true to the usual HELLA mounting points. Further mounting options deviating from this standard are possible (e.g. a bolt circle diameter of 43 mm or 85 mm). In addition, a variant with flexible pipe socket mounting is also available. The shock-absorbing and vibration-damping base briefly tilts the beacon by up to 45° and cushions even strong impacts. Thanks to this option and the complete sealing of the beacon, the K-LED Nano can therefore also be used both in vibration-intensive environments and also in dusty ones. As a Fit&Forget solution, following installation the beacon turns into a reliable and long-lasting vehicle component.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Daf

2281055

Scania

SP1068177
Plug
Blade Terminal
Cable
150 mm
Height
68 mm
Weight
256 g
Voltage
12 V / 24 V
Quantity
1
Lamp Type
LED
Lens Colour
Yellow (amber)
Light Colour
Yellow (amber)
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Mounting Type
Bolted
Housing Colour
Black
Light Function
With flashing warning signal
Number of LEDs
16
Housing Material
ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)

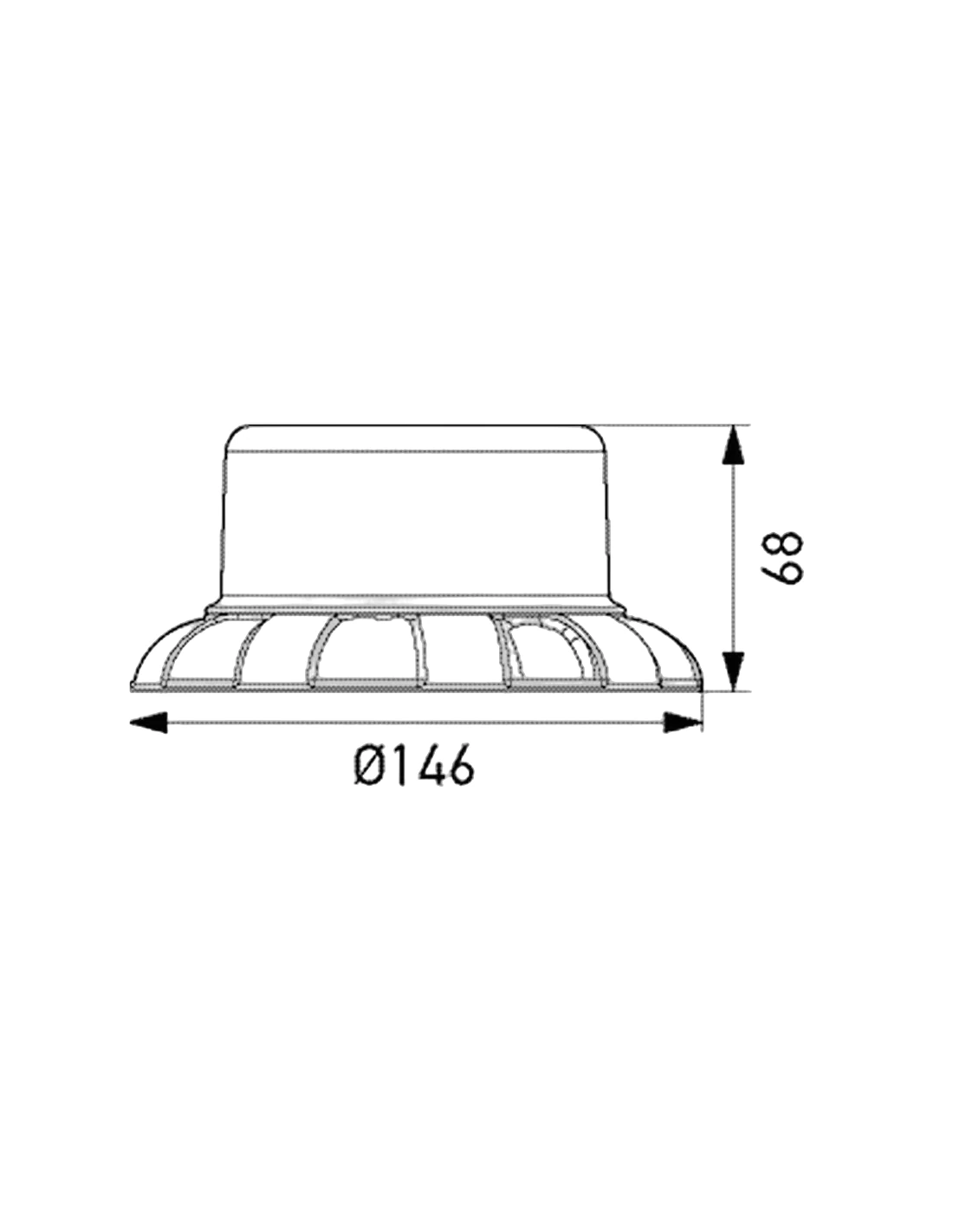

Outer Diameter 1
146 mm
Power Consumption
19 W
Registration Type
SAE / ECE / ADR/GGVS
Fulfils ECE Standard
R10 / R65 / TA1
Fulfils SAE Standard
J845 Class 1
Temperature Range To
+60 °C
Flash Rate Per Minute
126
Fulfils Test Standard
RCM
Temperature Range From
-40 °C
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP6K7 / IP6K9K
Fulfils EMC/CISPR Standard
Class 5
Manufacturer
HELLA
