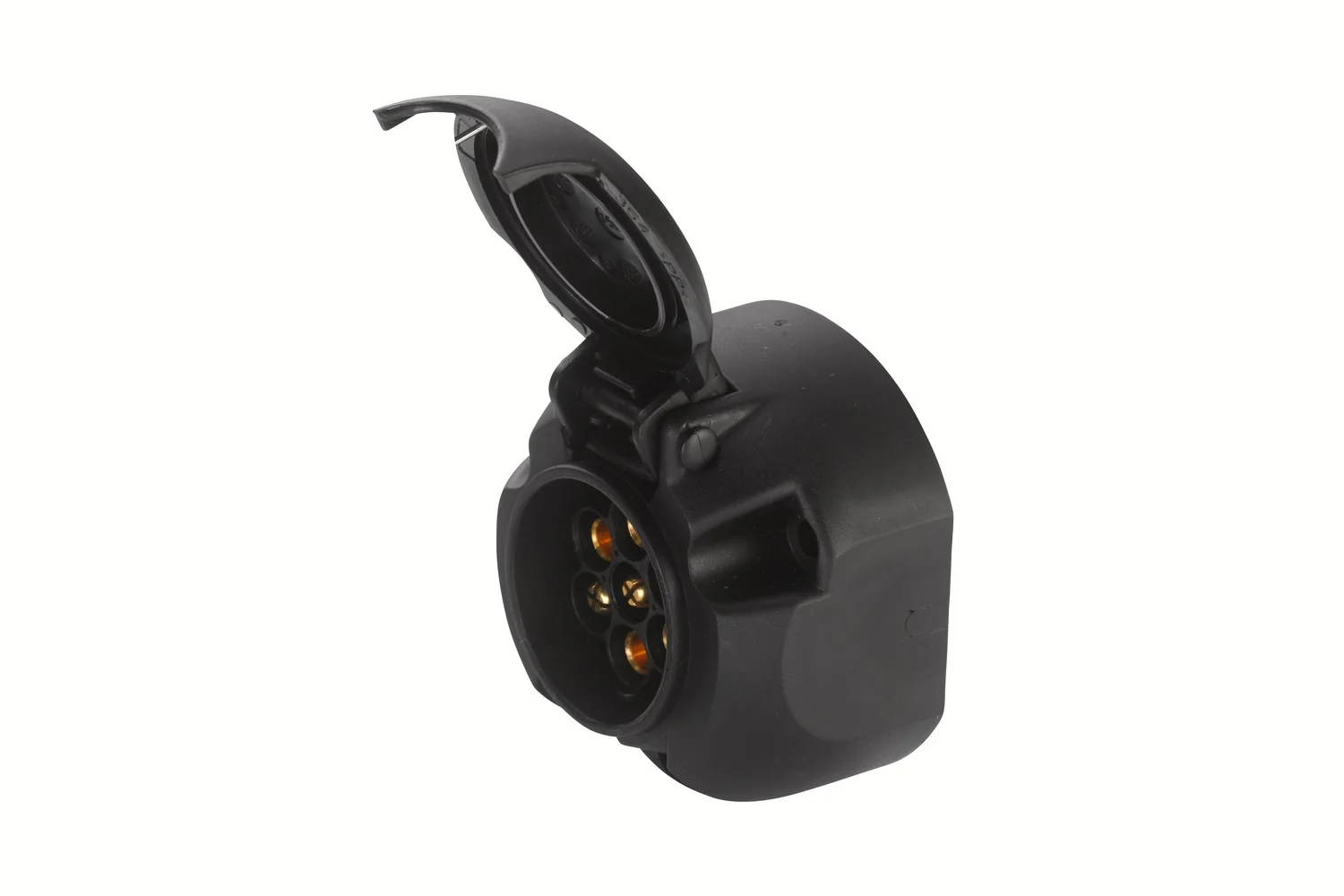

HELLA - 8JB 001 943-001 - Socket, 7-pin connector, Plug: Screw Contact, Quantity: 1
HELLA - 8JB 001 943-001 - Socket, 7-pin connector, Plug: Screw Contact, Quantity: 1
HELLA - 8JB 001 943-001 - Socket, 7-pin connector, Plug: Screw Contact, Quantity: 1
HELLA - 8JB 001 943-001 - Socket, 7-pin connector, Plug: Screw Contact, Quantity: 1
HELLA - 8JB 001 943-001 - Socket, 7-pin connector, Plug: Screw Contact, Quantity: 1
HELLA - 8JB 001 943-001 - Socket, 7-pin connector, Plug: Screw Contact, Quantity: 1

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping on orders over €60

Pay Securely with

HELLA - 8JB 001 943-001 - Socket, 7-pin connector, Plug: Screw Contact, Quantity: 1

HELLA - 8JB 001 943-001 - Socket, 7-pin connector, Plug: Screw Contact, Quantity: 1

€5.53

(Excl. VAT)

Price

(Excl. VAT)

€5.53

Product Description

The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1724 and an additional connector, type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arrangement.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

3708066M1

Agria

2295 6

Ahlmann

4168226A4184429A

Atlas copco

308374

Auwärter

348-ST002

Bucher

7615-0820

Case ih

C1340787

Daf

1301758

Doll

7203594

Evobus

A0045453226

Fendt

3708066M1V 649 791

Ford

81DB13A450BA

Hymer

9947320

Iveco

42489073

Kögel

61301377

Land rover

STC4286

Langendorf

1134632

Mercedes Benz

004 545 32 26A 004 545 32 26

Paus

529365

Reform

999242201

Reisch

5003012

Schanzlin

2060025

Sommer

2880059002

Spierings

417141

Still

500166

Terex

36001350995050286100

Valmet

31720300649791

Volvo

205207920520794P15243256B01

Yanmar

5050286100
Depth
46 mm
Colour
Black
DIN/ISO
1724 N-Typ
Material
PP (Polypropylene)
Quantity
1
Packaging
Blister
Plug type
Screw Contact
Voltage to
24 V
Voltage from
6 V
Assembly note
Assembly by qualified personnel required
Bore diameter
5.5 mm
Number of pins
7-pin connector
Number of bores
3
Housing material
Plastic
Current Strength to
20 A
Temperature range to
+75 °C
Current Strength from
15 A
Supplementary feature
Removable inset
Wire cross-section to
2.5 mm²
Temperature range from
-25 °C
Wire cross-section from
1.5 mm²
Manufacturer
HELLA
