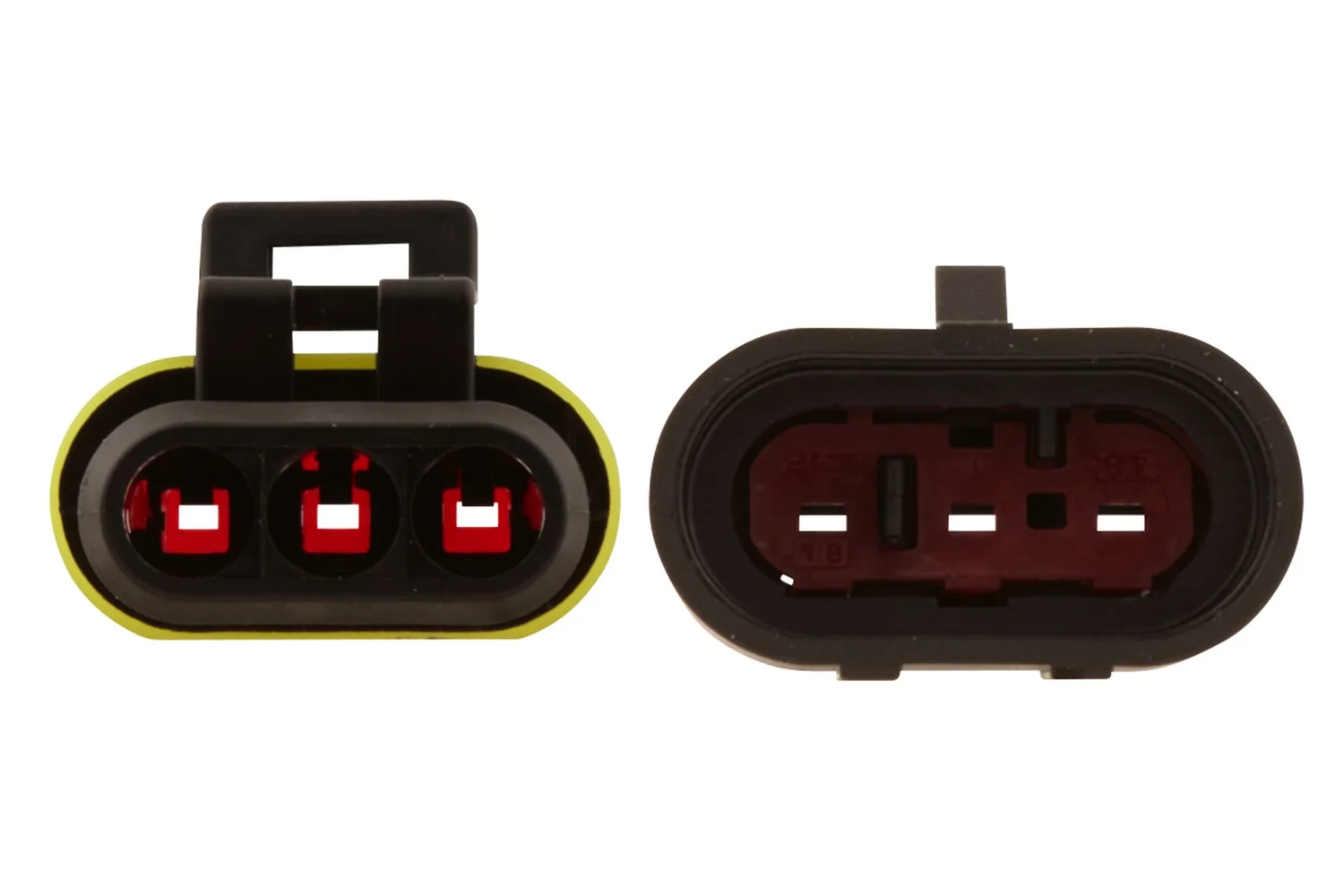

HELLA - 8KW 744 807-801 - Cable Connector, 3-pin connector, 0.75mm², 2.5mm², Quantity: 1
HELLA - 8KW 744 807-801 - Cable Connector, 3-pin connector, 0.75mm², 2.5mm², Quantity: 1
HELLA - 8KW 744 807-801 - Cable Connector, 3-pin connector, 0.75mm², 2.5mm², Quantity: 1
HELLA - 8KW 744 807-801 - Cable Connector, 3-pin connector, 0.75mm², 2.5mm², Quantity: 1
HELLA - 8KW 744 807-801 - Cable Connector, 3-pin connector, 0.75mm², 2.5mm², Quantity: 1
HELLA - 8KW 744 807-801 - Cable Connector, 3-pin connector, 0.75mm², 2.5mm², Quantity: 1

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping on orders over €60

Pay Securely with

HELLA - 8KW 744 807-801 - Cable Connector, 3-pin connector, 0.75mm², 2.5mm², Quantity: 1

HELLA - 8KW 744 807-801 - Cable Connector, 3-pin connector, 0.75mm², 2.5mm², Quantity: 1

€5.92

(Excl. VAT)

Price

(Excl. VAT)

€5.92

Product Description

HELLA offers a comprehensive selection of SUPERSEAL materials - and also the necessary crimping and unlocking tools for installation. HELLA SUPERSEAL plug-in connections comply with the regulations of IEC 529 as well as DIN ISO 40050 and have IP class 67, which guarantees maximum protection against water and dust ingress. Due to their nature, these connections are particularly suitable wherever other connection systems reach their limits due to adverse pressure or moisture conditions.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Daf

1528174

Fliegl

ETZXXX911597

Freightliner

5022222

John deere

ETZXXX911597

Reisch

5022222

Sany

21004283

Scania

202236252490985SP1068244

Schwarzmueller

115584
Plug
Male/Female
Voltage
24 V
Quantity
1
Packaging
Blister
Wire Size To
2.5 mm²
Assembly Note
Assembly By Qualified Personnel Required
Connector Type
Superseal Plug Set
Number Of Pins
3-Pin Connector
Wire Size From
0.75 mm²
DIN/ISO Standard
40050
Temperature Range To
125 °C
Temperature Range From
-40 °C
Protection Type (IP Code)
67
Manufacturer
HELLA

Similar items you might like

  • Hella

    HELLA - 8KV 003 124-811 - Cable Connector, 4-pin connector, transparent, 6.35mm², Length: 50mm, Brass

    Hella

    €6.13

  • Hella

    HELLA - 8KW 744 808-801 - Cable Connector, 4-pin connector, 0.75mm², 2.5mm², Quantity: 1

    Hella

    €6.81

  • Hella

    HELLA - 6GM 500 212-002 - Switch, Push Actuation/Rocker Actuation, 24V

    Hella

    €37.86

  • Hella

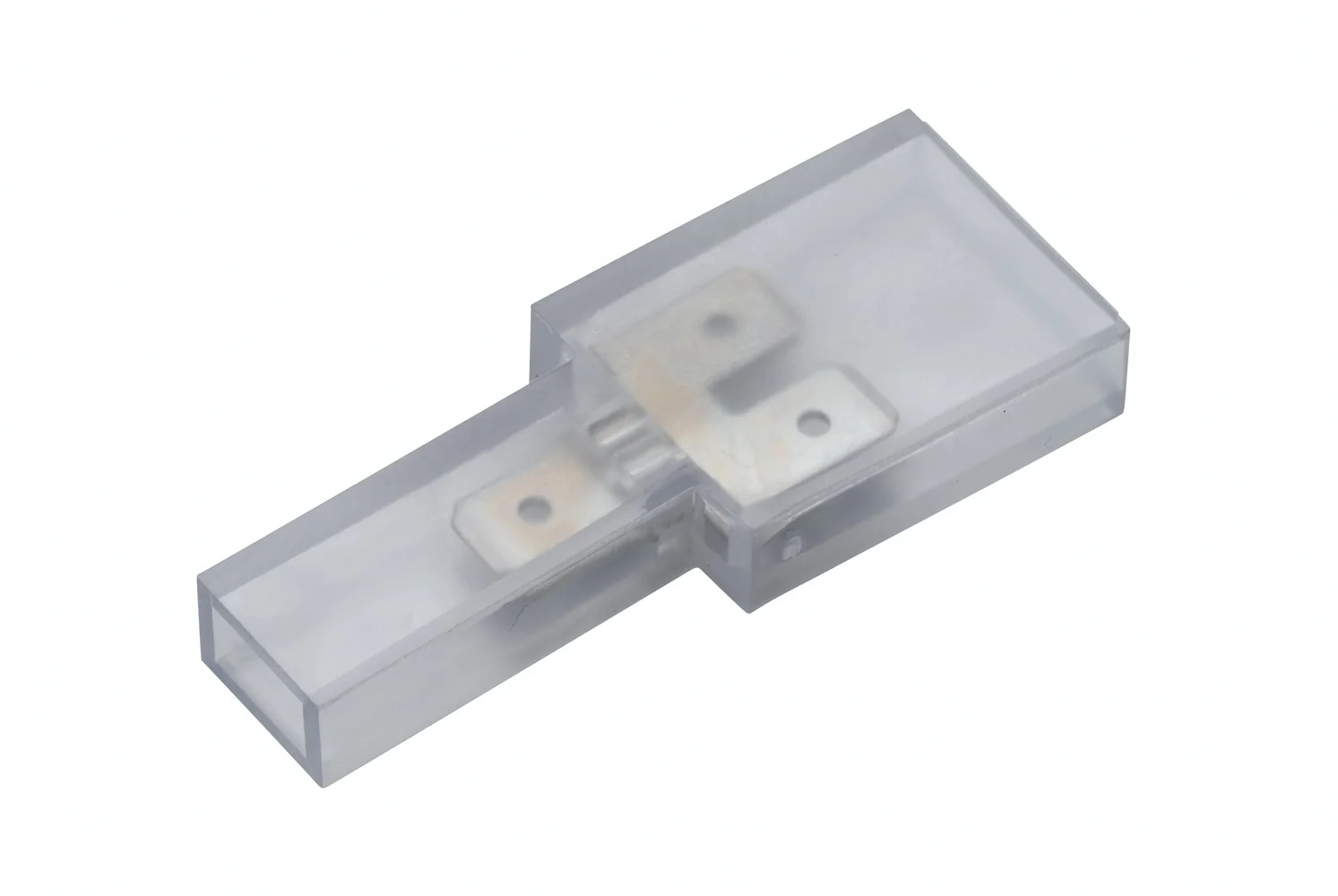

    HELLA - 8KV 002 135-821 - Cable Connector, 3-pin connector, transparent, 6.35mm², Length: 54mm, Brass

    Hella

    €5.98

  • Hella

    HELLA - 8SB 501 346-022 - Exterior Mirror, both sides

    Hella

    €42.06

  • Hella

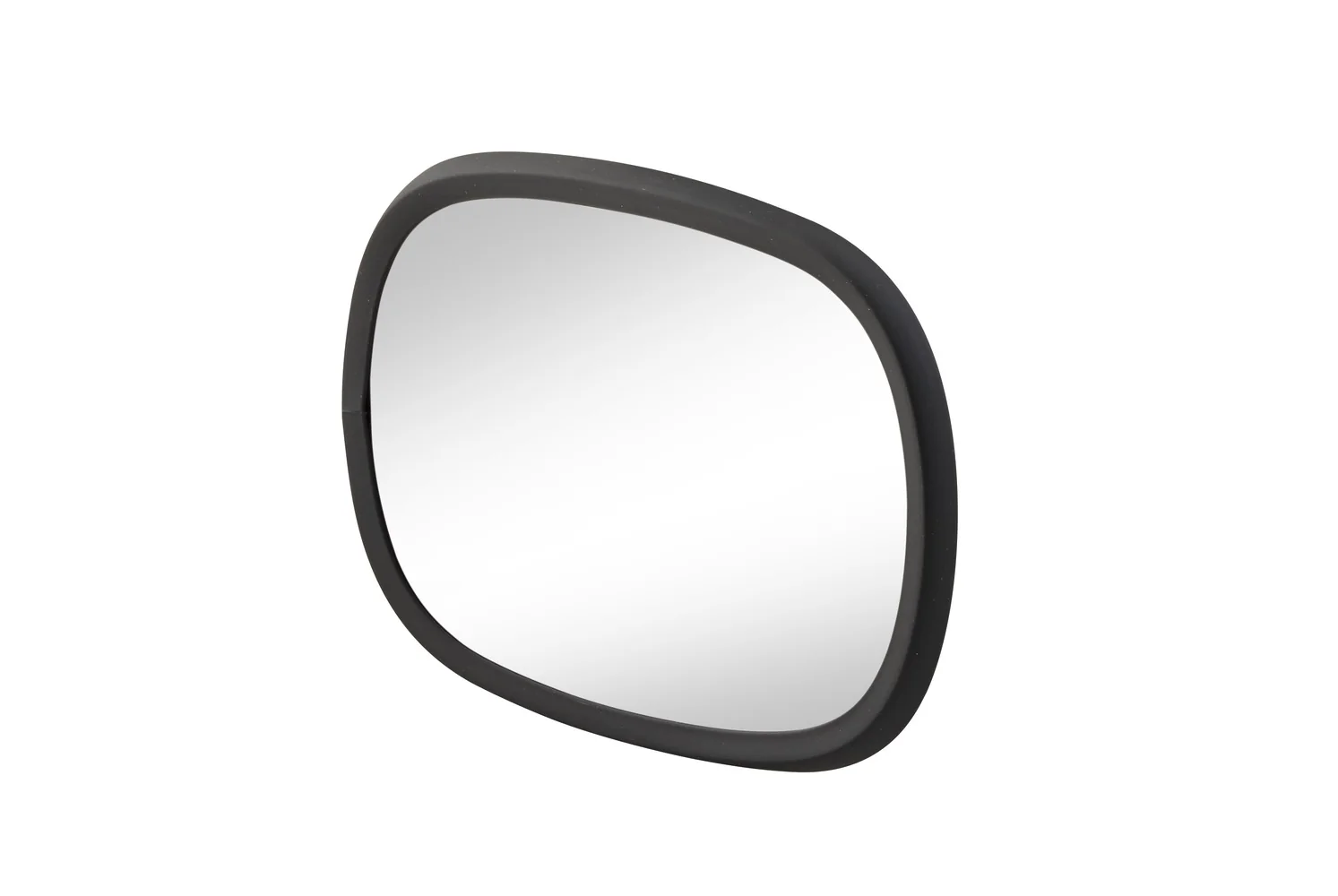

    HELLA - 8SB 002 404-121 - Exterior Mirror, both sides

    Hella

    €18.01

  • Hella

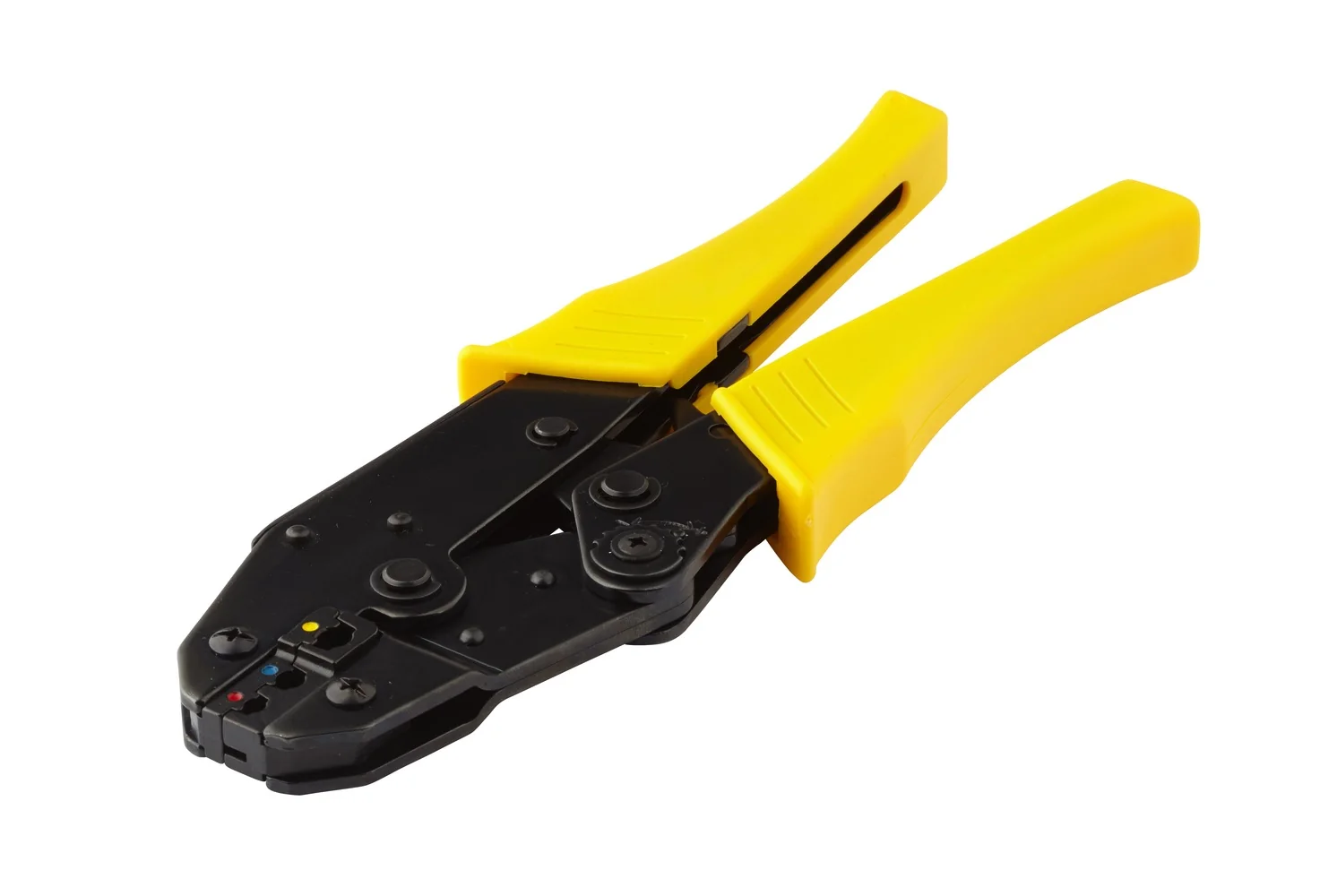

    HELLA - 8PE 002 007-001 - Squeeze Pliers Profi I, Metal, Tool handle material: Plastic, black/yellow
