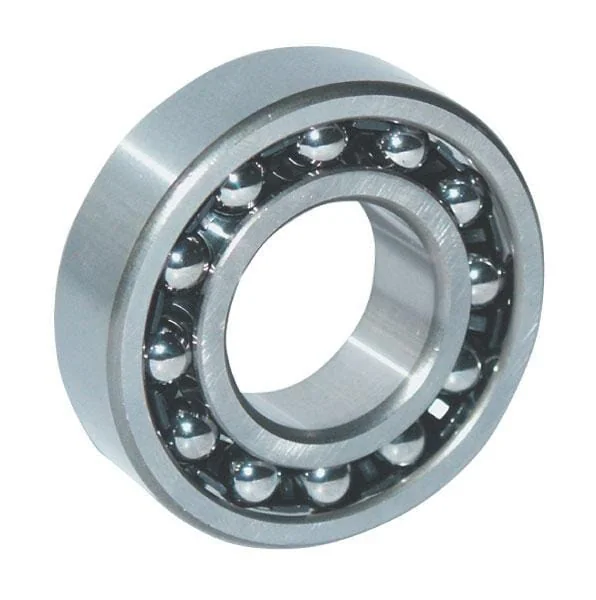

INA FAG - 1211TVH - Ball Bearing Self-Aligning 2-Row
INA FAG - 1211TVH - Ball Bearing Self-Aligning 2-Row
INA FAG - 1211TVH - Ball Bearing Self-Aligning 2-Row
INA FAG - 1211TVH - Ball Bearing Self-Aligning 2-Row

In stock - ready to ship

Ships within 96 hours
Free shipping on orders over €60

Pay Securely with

INA FAG - 1211TVH - Ball Bearing Self-Aligning 2-Row

INA FAG - 1211TVH - Ball Bearing Self-Aligning 2-Row

€47.11

(Excl. VAT)

Price

(Excl. VAT)

€47.11

Product Description

The INA-FAG 1211TVH is a high-quality self-aligning double row ball bearing, specifically engineered to accommodate angular misalignment between the shaft and housing. This robust bearing features a bore diameter of 55 mm, an outer diameter of 100 mm, and a width of 21 mm, making it suitable for various industrial and agricultural machinery applications where precision and reliability are critical. The 'TVH' designation indicates a solid window cage made of glass fiber reinforced polyamide, offering excellent performance and durability.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
1211tvh
Unit
Each
BWidth
21 mm
Weight
0,733 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
55 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
100 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
7700 r/min
Ref rotation speed
7500 r/min
Basic radial load static
10000 N
Basic radial load dynamic
27000 N
Radial internal clearance code
CN
EAN
4012801159081
Manufacturer
INA/FAG
