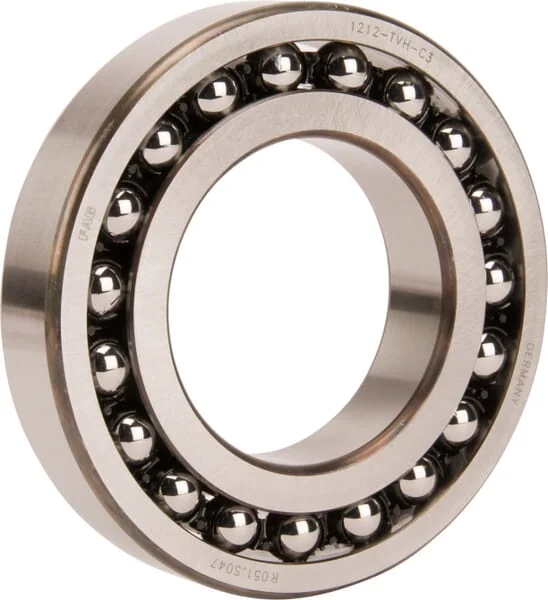

INA FAG - 1212TVHC3 - Self-Aligning Ball Bearing
INA FAG - 1212TVHC3 - Self-Aligning Ball Bearing
INA FAG - 1212TVHC3 - Self-Aligning Ball Bearing
INA FAG - 1212TVHC3 - Self-Aligning Ball Bearing
INA FAG - 1212TVHC3 - Self-Aligning Ball Bearing

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping on orders over €60

Pay Securely with

INA FAG - 1212TVHC3 - Self-Aligning Ball Bearing

INA FAG - 1212TVHC3 - Self-Aligning Ball Bearing

€52.87

(Excl. VAT)

Price

(Excl. VAT)

€52.87

Product Description

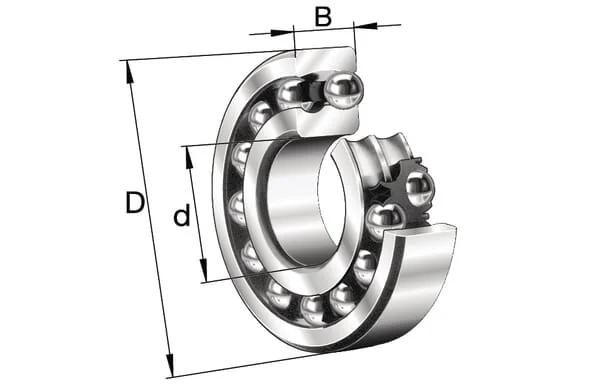

The FAG 1212TVHC3 is a high-quality self-aligning ball bearing designed to accommodate static and dynamic angular misalignment. Featuring a bore diameter of 60 mm, an outer diameter of 100 mm, and a width of 20 mm, this bearing is equipped with a polyamide cage (TVH) and C3 radial internal clearance, making it suitable for applications with higher operating temperatures or where thermal expansion is a factor. Manufactured by FAG, a brand of Schaeffler, it ensures reliable performance in various industrial and agricultural machinery.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Equivalent OEM Part Numbers

Fag

1212TVHC3
Unit
Each
BWidth
22 mm
Weight
0,094 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
60 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
110 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
6900 r/min
Ref rotation speed
6300 r/min
Basic radial load static
11500 N
Basic radial load dynamic
30500 N
Radial internal clearance code
C3
Manufacturer
INA/FAG
