INA FAG - 1308TVH - Self-Aligning Ball Bearing Double Row
INA FAG - 1308TVH - Self-Aligning Ball Bearing Double Row
INA FAG - 1308TVH - Self-Aligning Ball Bearing Double Row
INA FAG - 1308TVH - Self-Aligning Ball Bearing Double Row

In stock - ready to ship

Order now for delivery between 12 May and 15 May
Free shipping on orders over €60

Pay Securely with

INA FAG - 1308TVH - Self-Aligning Ball Bearing Double Row

INA FAG - 1308TVH - Self-Aligning Ball Bearing Double Row

€45.34

(Excl. VAT)

Price

(Excl. VAT)

€45.34

Product Description

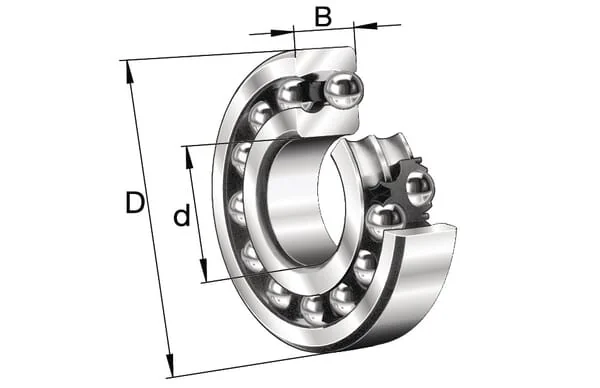

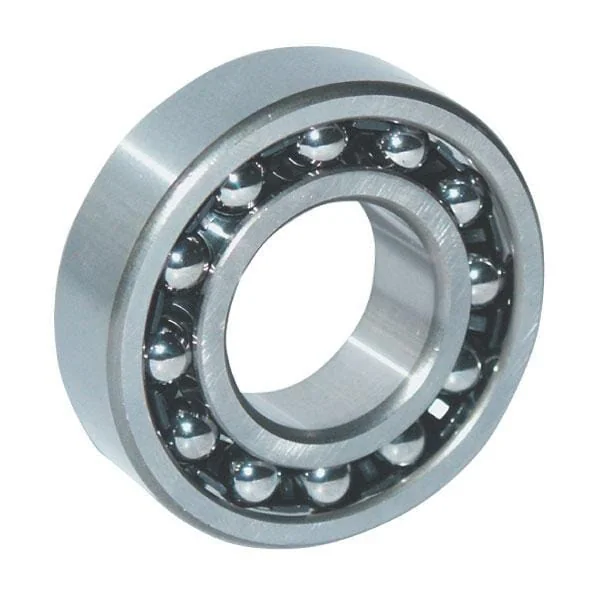

The INA-FAG 1308TVH is a high-quality, genuine self-aligning ball bearing designed for applications where angular misalignment may occur. This double row bearing features a 40mm inner diameter, a 90mm outer diameter, and a 23mm width. The 'TVH' designation indicates a glass fiber reinforced polyamide cage, offering good elasticity and resistance to shock loads, making it suitable for various agricultural and industrial machinery applications. It is engineered to accommodate static and dynamic misalignment, ensuring reliable performance and extended service life.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
23 mm
Weight
0,715 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
40 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
90 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
8600 r/min
Ref rotation speed
6900 r/min
Basic radial load static
9700 N
Basic radial load dynamic
30000 N
Radial internal clearance code
CN
Manufacturer
INA/FAG
