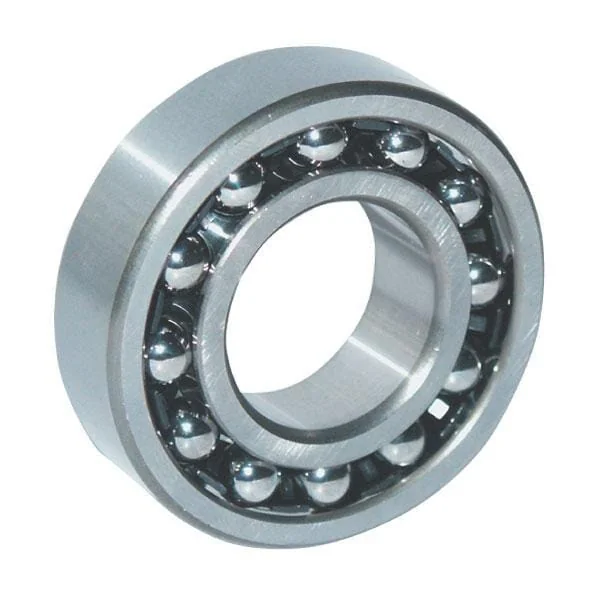

INA FAG - 1311TVHC3 - Self-Aligning Ball Bearing
INA FAG - 1311TVHC3 - Self-Aligning Ball Bearing
INA FAG - 1311TVHC3 - Self-Aligning Ball Bearing
INA FAG - 1311TVHC3 - Self-Aligning Ball Bearing
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

INA FAG - 1311TVHC3 - Self-Aligning Ball Bearing

INA FAG - 1311TVHC3 - Self-Aligning Ball Bearing

€84.08

(Excl. VAT)

Price

(Excl. VAT)

€84.08

Product Description

The FAG 1311TVHC3 is a genuine self-aligning ball bearing designed for applications where angular misalignment may occur. It features a 55mm bore diameter, 120mm outer diameter, and 29mm width. The 'TVH' designation indicates a glass fibre reinforced polyamide cage, while 'C3' denotes an increased radial internal clearance, suitable for higher operating temperatures or where shaft expansion is expected. This FAG bearing ensures reliable performance and accommodates static and dynamic misalignment.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Equivalent AM Part Numbers

Skf

1311EKTN9C3

Nsk

1311KTNC3

Ntn

1311SC3

Koyo

1311KC3

Nachi

1311KC3
Unit
Each
BWidth
29 mm
Weight
0,158 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
55 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
120 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
6100 r/min
Ref rotation speed
5800 r/min
Basic radial load static
17900 N
Basic radial load dynamic
52000 N
Radial internal clearance code
C3
Manufacturer
INA/FAG
