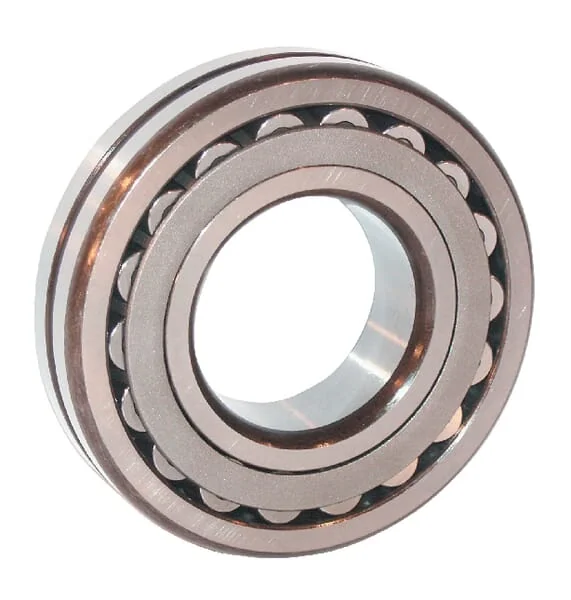

INA FAG - 21305E1TVPB - Bearing
INA FAG - 21305E1TVPB - Bearing
INA FAG - 21305E1TVPB - Bearing
INA FAG - 21305E1TVPB - Bearing
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

INA FAG - 21305E1TVPB - Bearing

INA FAG - 21305E1TVPB - Bearing

€63.48

(Excl. VAT)

Price

(Excl. VAT)

€63.48

Product Description

The INA-FAG 21305E1TVPB is a high-quality genuine spherical roller bearing, manufactured by Schaeffler (INA/FAG). This robust bearing is designed to accommodate very heavy radial loads and moderate axial loads in both directions. It features a cylindrical bore, a pressed steel cage (E1), and a TVPB designation indicating a glass fiber reinforced polyamide cage and normal clearance. With a bore diameter of 25 mm, an outer diameter of 52 mm, and a width of 18 mm, it ensures reliable performance in demanding industrial and agricultural machinery applications.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
21305e1tvpb
Equivalent OEM Part Numbers

Fag

21305E1TVPB

Ina

21305E1TVPB
Unit
Each
BWidth
17 mm
Weight
0,025 kg
Sealing
Open
Includes
Spherical roller bearing with cylindrical inner ring
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
25 mm
DOutside diameter
62 mm
Bearing model type
Spherical roller bearings
Max rotation speed
13900 r/min
Ref rotation speed
13000 r/min
Basic radial load static
43500 N
Basic radial load dynamic
52000 N
EAN
4026677808110
Manufacturer
INA/FAG
