INA FAG - 21322E1TVPB - Spherical Roller Bearing
INA FAG - 21322E1TVPB - Spherical Roller Bearing

In stock - ready to ship

Order now for delivery between 9 July and 13 July
Free shipping

Pay Securely with

INA FAG - 21322E1TVPB - Spherical Roller Bearing

INA FAG - 21322E1TVPB - Spherical Roller Bearing

€434.73

(Excl. VAT)

Price

(Excl. VAT)

€434.73

Product Description

The FAG 21322-E1-TVPB is a high-quality spherical roller bearing designed for heavy-duty industrial applications. Manufactured by FAG (a Schaeffler brand), this bearing features an optimized internal design (E1) and a glass fibre reinforced polyamide 66 cage (TVPB). It has a bore diameter of 110 mm, an outer diameter of 240 mm, and a width of 50 mm. With a basic dynamic load rating of 510 kN and a basic static load rating of 580 kN, it offers reliable performance under significant radial and axial loads. The bearing has a normal radial internal clearance and is suitable for operating speeds up to 1600 rpm with grease lubrication or 2000 rpm with oil lubrication.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Product Details

Brand
ina-fag
Part Numbers
21322e1tvpb
Bore Diameter (mm)
110
Outer Diameter (mm)
240
Width (mm)
50
Weight (kg)
10.5
Dynamic Load Rating (kN)
510
Static Load Rating (kN)
580
Limiting Speed Grease (rpm)
1600
Limiting Speed Oil (rpm)
2000
Bearing Type
Spherical roller bearing
Cage Material
Polyamide (TVPB)
Internal Clearance
CN (Normal)
Series
213
Design Feature
E1 (Optimized internal design)
Quality
OEM Supplier
Manufacturer
ina-fag

Similar items you might like

  • INA FAG

    INA FAG - 21320E1XLTVPBC3 - Spherical Roller Bearing

    INA FAG

    €319.45

  • INA FAG

    INA FAG - 21322E1XLKTVPB - Spherical Roller Bearing

    INA FAG

    €374.98

  • INA FAG

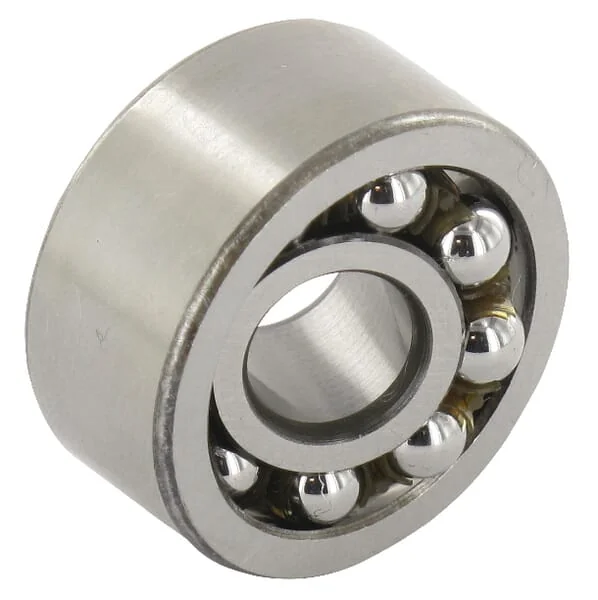

    INA FAG - 2200TVH - Self-Aligning Ball Bearing
