INA FAG - 2203TVH - Ball Bearing 2R Self-Aligning

OEM Supplier

SKU: ina-fag-2203tvh

INA FAG - 2203TVH - Ball Bearing 2R Self-Aligning

€29.53€25.24 (excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€29.53

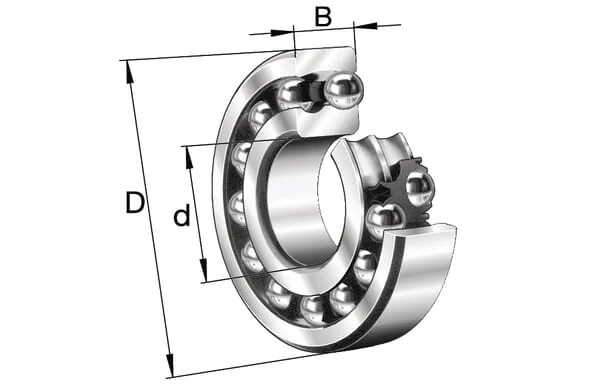

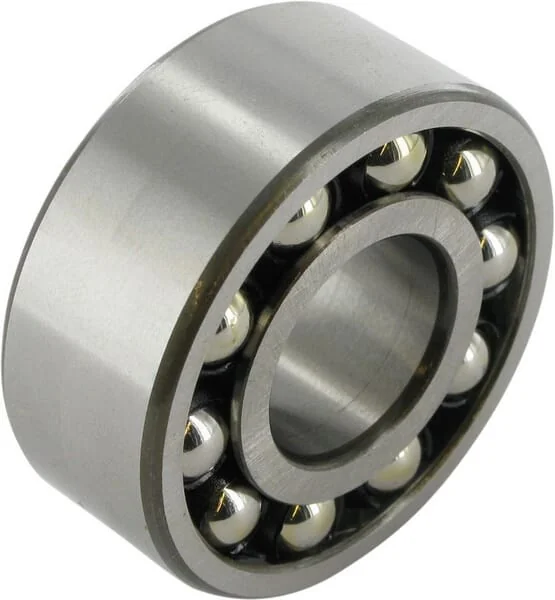

The INA-FAG 2203TVH is a high-quality double-row self-aligning ball bearing designed to accommodate angular misalignment between the shaft and housing. With a 17 mm bore diameter, 40 mm outer diameter, and 16 mm width, this bearing features a TVH polyamide cage, ensuring reliable performance and extended service life in various industrial applications.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,180 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
2203tvh
Unit
Each
BWidth
16 mm
Weight
0,087 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
17 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
40 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
19100 r/min
Ref rotation speed
19000 r/min
Basic radial load static
2750 N
Basic radial load dynamic
11800 N
Radial internal clearance code
CN
EAN
4012801160230
Manufacturer
INA/FAG
