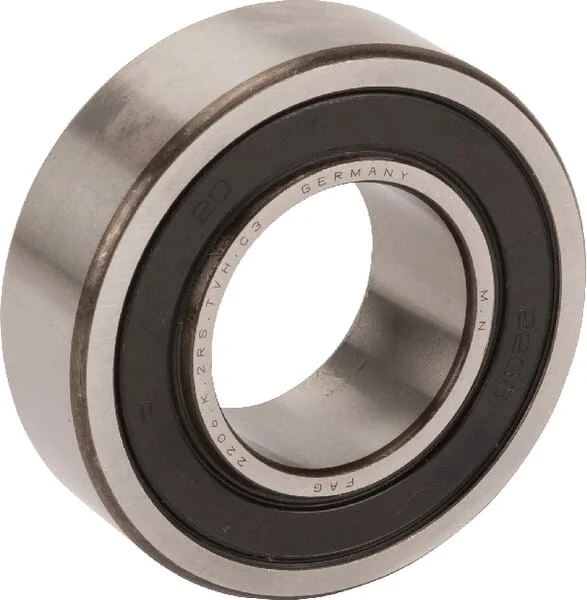

INA FAG - 2206K2RSTVHC3 - FAG Self-Aligning Ball Bearing
INA FAG - 2206K2RSTVHC3 - FAG Self-Aligning Ball Bearing
INA FAG - 2206K2RSTVHC3 - FAG Self-Aligning Ball Bearing
INA FAG - 2206K2RSTVHC3 - FAG Self-Aligning Ball Bearing

In stock - ready to ship

Order now for delivery between 14 May and 18 May
Free shipping on orders over €60

Pay Securely with

INA FAG - 2206K2RSTVHC3 - FAG Self-Aligning Ball Bearing

INA FAG - 2206K2RSTVHC3 - FAG Self-Aligning Ball Bearing

€32.89

(Excl. VAT)

Price

(Excl. VAT)

€32.89

Product Description

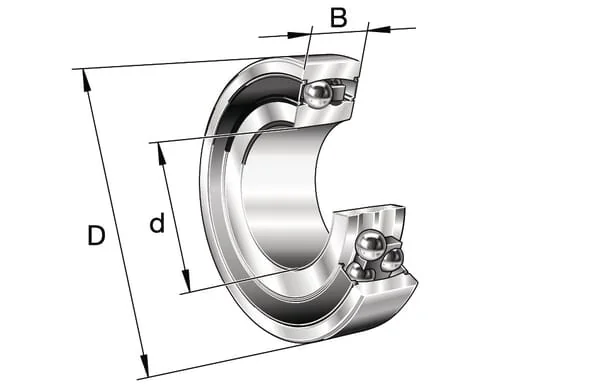

The FAG 2206-K-2RS-TVH-C3 is a high-quality self-aligning ball bearing designed to accommodate angular misalignment. It features a 30 mm tapered bore (K suffix) for mounting with adapter sleeves, a 62 mm outer diameter, and a 20 mm width. Equipped with 2RS contact seals on both sides for protection against dust and moisture, and a durable glass fibre reinforced polyamide cage (TVH). The C3 radial internal clearance is greater than normal, suitable for applications with higher temperatures or potential for misalignment.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
20 mm
Weight
0,026 kg
Sealing
2RS
Material
Steel
Extra info
Expansion bush ordered separately
Properties
Self-adjusting roller bearing Double row With conical inner ring
Consists of
Self-adjusting roller bearing Expansion bush not included
Rows number
2
Inner ring shape
Tapered
dInside diameter
30 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
62 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
6800 r/min
Basic radial load static
4650 N
Basic radial load dynamic
15900 N
Radial internal clearance code
C3
Manufacturer
INA/FAG
