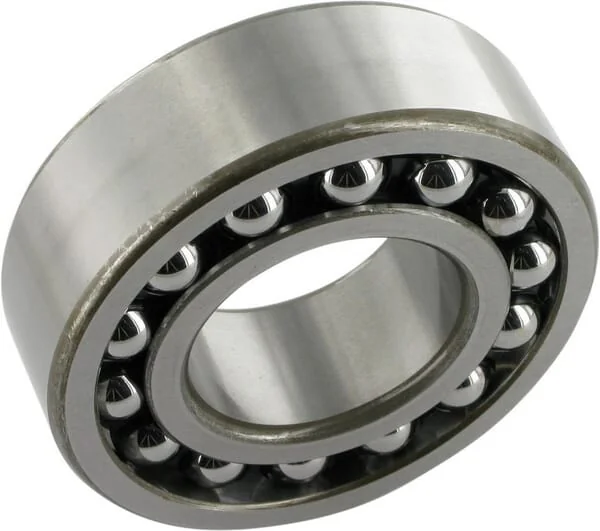

INA FAG - 2208TVHC3 - Grooved Ball Bearing
INA FAG - 2208TVHC3 - Grooved Ball Bearing
INA FAG - 2208TVHC3 - Grooved Ball Bearing
INA FAG - 2208TVHC3 - Grooved Ball Bearing
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

INA FAG - 2208TVHC3 - Grooved Ball Bearing

INA FAG - 2208TVHC3 - Grooved Ball Bearing

€36.15

(Excl. VAT)

Price

(Excl. VAT)

€36.15

Product Description

The INA-FAG 2208TVHC3 is a high-quality double row angular contact ball bearing designed for robust performance in various industrial and agricultural applications. Featuring a 40mm bore diameter, an 80mm outer diameter, and a 23mm width, this bearing is equipped with a C3 radial internal clearance for applications requiring greater operating clearance or accommodating thermal expansion. The 'TVH' designation indicates a solid window-type cage made of glass fibre reinforced polyamide, offering good sliding properties and reduced noise. This genuine FAG bearing ensures reliable operation and extended service life.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
23 mm
Weight
0,505 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
40 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
80 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
8900 r/min
Basic radial load static
9500 N
Basic radial load dynamic
32500 N
Radial internal clearance code
C3
Manufacturer
INA/FAG
