INA FAG - 2209K2RSTVHC3 - Self-aligning Ball Bearing
INA FAG - 2209K2RSTVHC3 - Self-aligning Ball Bearing
INA FAG - 2209K2RSTVHC3 - Self-aligning Ball Bearing
INA FAG - 2209K2RSTVHC3 - Self-aligning Ball Bearing
INA FAG - 2209K2RSTVHC3 - Self-aligning Ball Bearing

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping on orders over €60

Pay Securely with

INA FAG - 2209K2RSTVHC3 - Self-aligning Ball Bearing

INA FAG - 2209K2RSTVHC3 - Self-aligning Ball Bearing

€52.15

(Excl. VAT)

Price

(Excl. VAT)

€52.15

Product Description

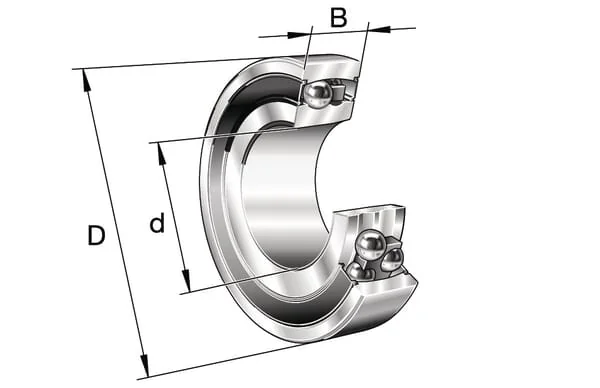

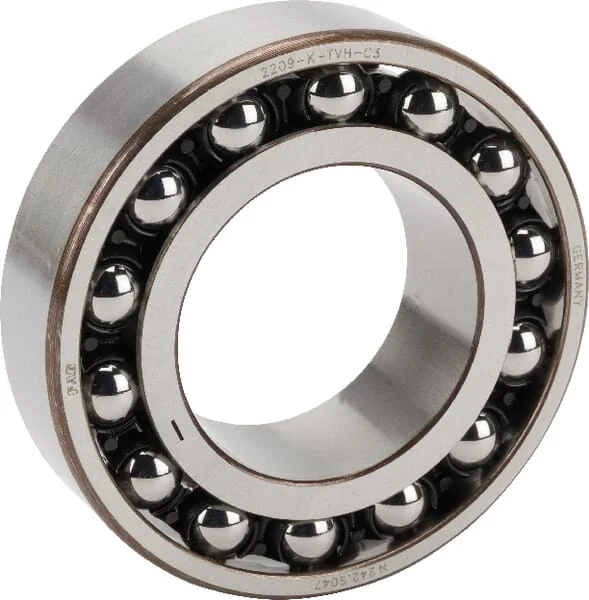

The FAG 2209-K-2RS-TVH-C3 is a high-quality self-aligning double row ball bearing designed for applications where angular misalignment may occur. It features a tapered bore (K) for mounting with adapter sleeves, two rubber seals (2RS) on both sides to protect against contaminants, and a TVH polyamide cage. The C3 radial internal clearance allows for thermal expansion and ensures reliable operation under varying conditions. This bearing is suitable for agricultural, industrial, and machinery applications requiring robust performance and misalignment compensation.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
23 mm
Weight
0,527 kg
Sealing
2RS
Material
Steel
Extra info
Expansion bush ordered separately
Properties
Self-adjusting roller bearing Double row With conical inner ring
Consists of
Self-adjusting roller bearing Expansion bush not included
Rows number
2
Inner ring shape
Tapered
dInside diameter
45 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
85 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
4650 r/min
Basic radial load static
7300 N
Basic radial load dynamic
22000 N
Radial internal clearance code
C3
Manufacturer
INA/FAG
