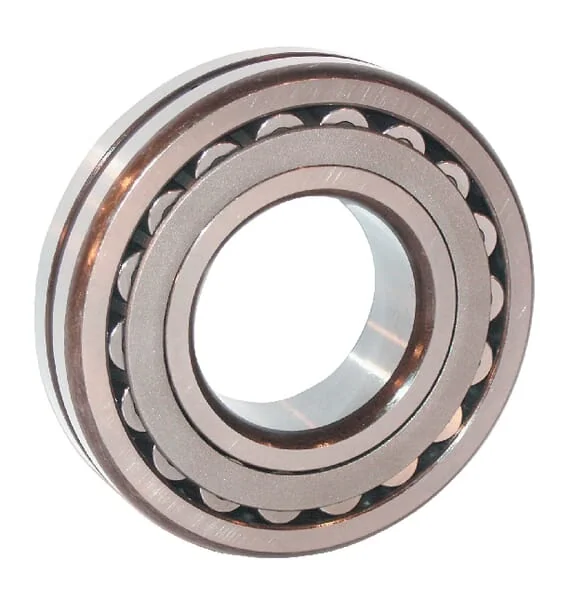

INA FAG - 22209E1XLKC3 - FAG Spherical Roller Bearing

OEM Supplier

SKU: ina-fag-22209e1xlkc3

INA FAG - 22209E1XLKC3 - FAG Spherical Roller Bearing

€67.77

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€67.77

The INA-FAG 22209E1XLKC3 is a high-quality spherical roller bearing featuring an optimized internal design (E1) and X-Life quality (XL). It has a 45mm bore diameter, an 85mm outer diameter, and a 23mm width. This bearing is designed with a 1:12 tapered bore (K) and C3 radial internal clearance, making it suitable for applications requiring greater than normal clearance. It weighs 0.58 kg and ensures reliable performance in demanding industrial and agricultural machinery.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
22209e1xlkc3
Unit
Each
CWidth
23 mm
Weight
0,557 kg
Sealing
Open
Includes
Spherical roller bearing with conical inner ring.
Extra info
Expansion bush ordered separately
Rows number
2
Inner ring shape
Tapered
DOutside diameter
85 mm
FwInside diameter
45 mm
Bearing model type
Spherical roller bearings
Max rotation speed
10100 r/min
Ref rotation speed
5600 r/min
Basic radial load static
99000 N
Basic radial load dynamic
104000 N
EAN
4026677804815
Manufacturer
INA/FAG
