INA FAG - 30042RS - Angular Contact Bearing

OEM Supplier

SKU: ina-fag-30042rs

INA FAG - 30042RS - Angular Contact Bearing

€32.55

(excl. VAT)

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€32.55

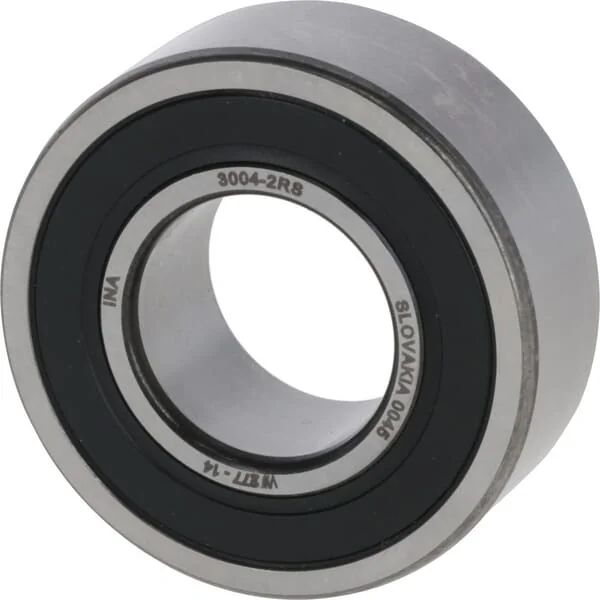

The INA-FAG 30042RS (equivalent to FAG 3004-B-2RSR-TVP) is a high-quality double row angular contact ball bearing. Featuring a 20mm inner diameter, 47mm outer diameter, and 20.6mm width, it is equipped with two rubber seals (2RS) for protection against contaminants and moisture. This bearing is designed for applications requiring high rigidity and the ability to accommodate combined radial and axial loads, making it suitable for various industrial and agricultural machinery.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
30042rs
OEM Part Numbers
Unit
Each
Width
16 mm
Weight
0,094 kg
Sealing
2RS
Regreasable
No
Rows number
2
Contact angle
25 °

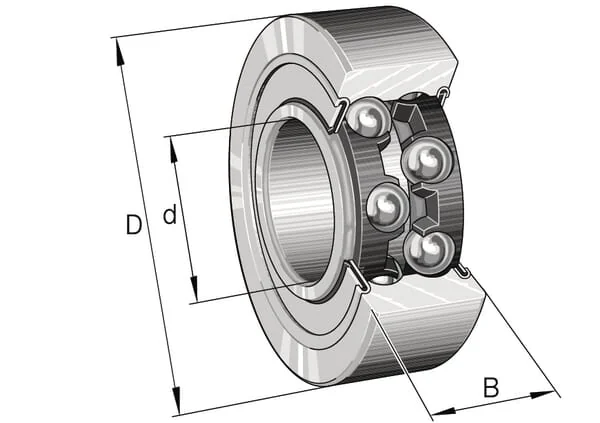

dInside diameter
20 mm
DOutside diameter
42 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
10500 r/min
Ref rotation speed
11000 r/min
Basic radial load static
9400 N
Basic radial load dynamic
14300 N
Outside diameter of inner ring
25,2 mm
Radial internal clearance code
CN
EAN
4012802027426
Manufacturer
INA/FAG
