INA FAG - 3208BDXL2ZTVH - Angular Contact Ball Bearing
INA FAG - 3208BDXL2ZTVH - Angular Contact Ball Bearing
INA FAG - 3208BDXL2ZTVH - Angular Contact Ball Bearing
INA FAG - 3208BDXL2ZTVH - Angular Contact Ball Bearing
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

INA FAG - 3208BDXL2ZTVH - Angular Contact Ball Bearing

INA FAG - 3208BDXL2ZTVH - Angular Contact Ball Bearing

€62.30

(Excl. VAT)

Price

(Excl. VAT)

€62.30

Product Description

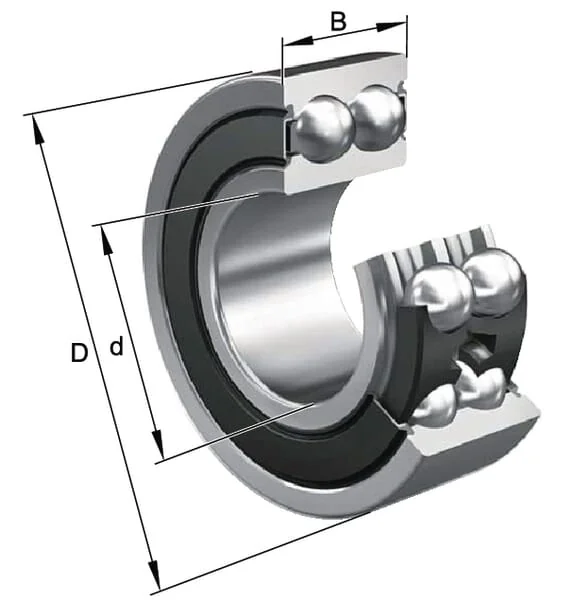

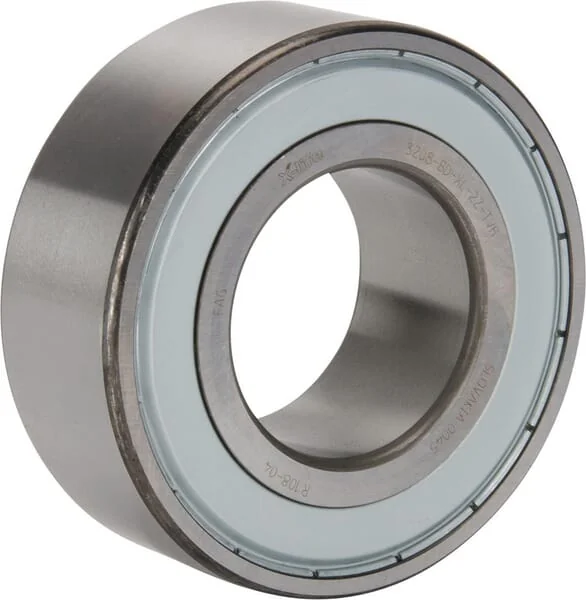

The INA-FAG 3208BDXL2ZTVH is a high-quality double row angular contact ball bearing designed for applications requiring high radial and axial loads. Featuring a 40mm bore diameter, 80mm outer diameter, and 30.2mm width, this genuine FAG bearing is equipped with two Z-seals (2Z) to protect against contaminants and retain lubricant, ensuring extended service life. The 'TVH' designation indicates a solid window cage made of glass fibre reinforced polyamide. This precision-engineered component is suitable for various industrial and agricultural machinery applications where reliable performance and durability are critical.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Product Details

Brand
INA/FAG
Part Numbers
3208bdxl2ztvh
Equivalent OEM Part Numbers

Fag

3208BDXL2ZTVH

Ina

3208BDXL2ZTVH
Unit
Each
BWidth
30,2 mm
Weight
0,059 kg
Sealing
ZZ
Regreasable
No
Rows number
2
Contact angle
30 °
dInside diameter
40 mm
DOutside diameter
80 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
6700 r/min
Ref rotation speed
9100 r/min
Basic radial load static
38000 N
Basic radial load dynamic
51000 N
Radial internal clearance code
CN
EAN
4012802477696
Manufacturer
INA/FAG
