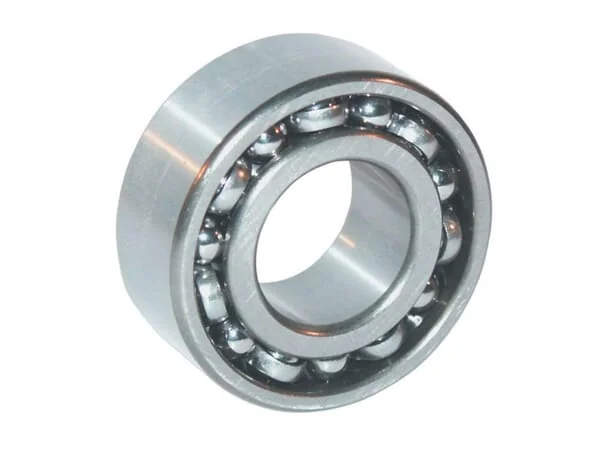

INA FAG - 3209BDXL2HRSTVHC3 - Angular Contact Ball Bearing
INA FAG - 3209BDXL2HRSTVHC3 - Angular Contact Ball Bearing
INA FAG - 3209BDXL2HRSTVHC3 - Angular Contact Ball Bearing
INA FAG - 3209BDXL2HRSTVHC3 - Angular Contact Ball Bearing
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

INA FAG - 3209BDXL2HRSTVHC3 - Angular Contact Ball Bearing

INA FAG - 3209BDXL2HRSTVHC3 - Angular Contact Ball Bearing

€66.30

(Excl. VAT)

Price

(Excl. VAT)

€66.30

Product Description

The FAG 3209-BD-XL-2HRS-TVH-C3 is a high-performance X-Life double row angular contact ball bearing, designed for applications requiring high rigidity and load carrying capacity. It features a 45 mm bore diameter, 85 mm outer diameter, and a width of 30.2 mm. This bearing is equipped with 2HRS contact seals on both sides for protection against contaminants and moisture, and a TVH glass fibre reinforced polyamide cage. It has an increased C3 internal clearance and a 30-degree contact angle (BD design), making it suitable for demanding industrial and agricultural machinery.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Equivalent AM Part Numbers

Skf

3209A2RS1TN9C3
Unit
Each
BWidth
30,2 mm
Weight
0,627 kg
Sealing
2RS
Regreasable
No
Rows number
2
Contact angle
30 °
dInside diameter
45 mm
DOutside diameter
85 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
6300 r/min
Basic radial load static
39000 N
Basic radial load dynamic
50000 N
Radial internal clearance code
C3
Manufacturer
INA/FAG
