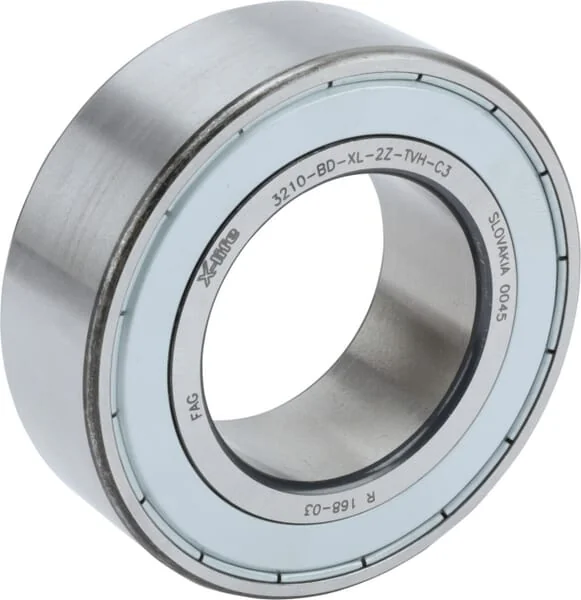

INA FAG - 3210BDXL2HRSTVH - Angular Contact Ball Bearing

OEM Supplier

SKU: ina-fag-3210bdxl2hrstvh

INA FAG - 3210BDXL2HRSTVH - Angular Contact Ball Bearing

€77.24

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€77.24

The FAG 3210BDXL2HRSTVH is a high-performance X-life double row angular contact ball bearing, manufactured by FAG (Schaeffler Group). This bearing features contact seals on both sides (2HRS) for superior protection against contaminants and a durable glass fibre reinforced polyamide cage (TVH). Designed for demanding industrial applications, it adheres to P6 tolerance class and C3 radial internal clearance. Key dimensions include an inner diameter of 50 mm, an outer diameter of 90 mm, and a width of 30.2 mm. It has a weight of 0.74 kg and operates effectively within a temperature range of -30 °C to +100 °C.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
3210bdxl2hrstvh
Inner Diameter (mm)
50
Outer Diameter (mm)
90
Width (mm)
30.2
Weight (kg)
0.74
Dynamic Load Rating (N)
51000
Static Load Rating (N)
33500
Limiting Speed (rpm)
6700
Reference Speed (rpm)
6700
Temperature Range (°C)
-30 to +100
Design
X-life
Seal Type
contact seals on both sides
Cage Material
glass fibre reinforced polyamide
Tolerance Class
P6
Radial Internal Clearance
C3
Quality
OEM Supplier
Manufacturer
ina-fag
