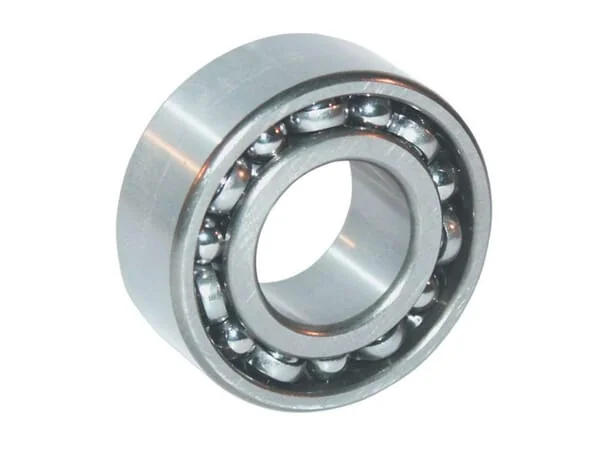

INA FAG - 3307BDXLTVHC3 - FAG Angular Contact Ball Bearing
INA FAG - 3307BDXLTVHC3 - FAG Angular Contact Ball Bearing
INA FAG - 3307BDXLTVHC3 - FAG Angular Contact Ball Bearing
INA FAG - 3307BDXLTVHC3 - FAG Angular Contact Ball Bearing

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

INA FAG - 3307BDXLTVHC3 - FAG Angular Contact Ball Bearing

INA FAG - 3307BDXLTVHC3 - FAG Angular Contact Ball Bearing

€65.27

(Excl. VAT)

Price

(Excl. VAT)

€65.27

Product Description

The FAG 3307-BD-XL-TVH-C3 is a high-performance double row angular contact ball bearing, part of the X-Life series, designed for enhanced reliability and extended service life. It features a 35mm bore diameter, an 80mm outer diameter, and a width of 34.9mm. This genuine FAG bearing incorporates a TVH glass fiber reinforced polyamide cage and C3 radial internal clearance, making it suitable for applications requiring higher operating temperatures or accommodating shaft deflections.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
3307bdxltvhc3
Unit
Each
BWidth
34,9 mm
Weight
0,007 kg
Sealing
Open
Regreasable
Yes
Rows number
2
Contact angle
30 °
dInside diameter
35 mm
DOutside diameter
80 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
9000 r/min
Ref rotation speed
8100 r/min
Basic radial load static
36500 N
Basic radial load dynamic
55000 N
Radial internal clearance code
C3
EAN
4012802478242
Manufacturer
INA/FAG
