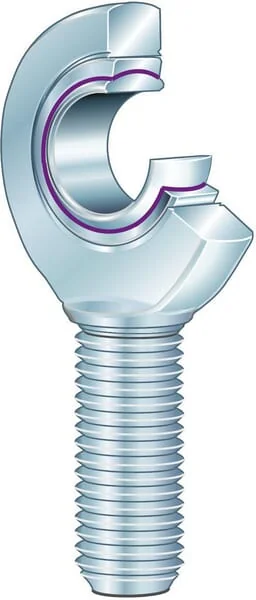

INA FAG - GAL20UKINA - Rod Head
OEM Supplier
SKU: ina-fag-gal20ukina





€52.74
(excl. VAT)Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60
Pay Securely with

INA FAG - GAL20UKINA - Rod Head
€52.74
(Excl. VAT)
Price
(Excl. VAT)
€52.74
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components.
The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments.
At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao.
INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

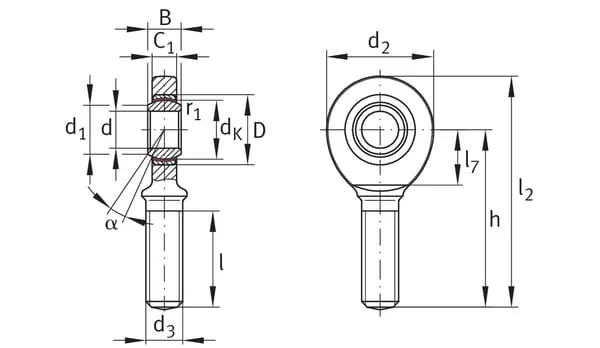

Product Details
Brand
Type
Male thread
Unit
Each
Weight
0.307 kg
d2Width
53 mm
l2Length
104.5 mm
Thread type
Left Hand
l7Length L7
27 mm
d3Male thread
M20x1.5 mm
C1Height house
13 mm
Inner diameter
20.00 mm
lThread length
43 mm
αEdge degrees
9 °
dInside diameter
20 mm
DOutside diameter
53 mm
Surface treatment
Zinc-plated
BHeight inner ring
16 mm
dkOutside diameter ball
29 mm
Outside diameter bearing
35 mm
Basic load ratings dyn. C
31300 N
Basic load ratings dyn. Cr
31,5 kN
Basic load ratings Stat. Co
75600 N
Basic load ratings Stat. Cor
75,6 kN
Suitable for original number
GAL20-UK
d1Outside diameter innerring
24.1 mm
hDistance basis center shaft
78 mm
EAN
4012802523072
Manufacturer
INA/FAG
